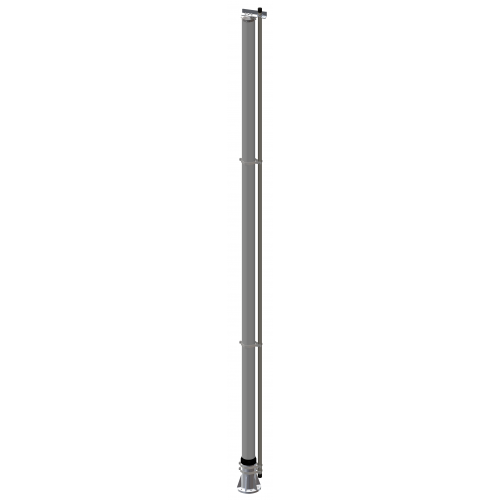

Omni Antennas437x.14-780-Tx

12 dBd HD antenna, Directional (A) Pattern,
740 - 870 MHz

Description

The 437x Series colinear antennas are designed for LTE/GSM applications where a durable and high performance antenna is required.
The centre fed dipole design and feed network gives a stable radiation pattern across a wide bandwidth, allows tilted beam designs to be effectively employed without large pattern distortions, and fills the lower pattern nulls.
A reflector is employed to give the antenna a directional radiation pattern.
High quality materials and manufacturing techniques are employed to ensure that the antenna has excellent intermodulation performance & wide bandwidth characteristics for multi-channel trunked radio communication systems.

Specifications

Electrical

Frequency

740 - 870 MHz

Max. Input Power

600 W

Polarisation

Vertical

Peak Instantaneous Power (PIP)

25 kW

3 dB Beamwidth, E-Plane

3° ±1°

3 dB Beamwidth, H-Plane

220° ±2°

Impedance

50 Ω

Gain	12 dBd (14.2 dBi)

VSWR

< 1.5:1

Passive Intermodulation

-153dBc (3rd Order, 2 x Tx @ 43dBm)

Antistatic Protection

All metal parts DC-grounded (Connector shows a DC-short)

Mechanical

Connection(s)

4370.14-780-Tx 7/16 DIN Female
4373.14-780-Tx 4.3/10 DIN Female

Materials

Antenna Base: Aluminium LM25
Shroud: GRP tube 128mm dia.
Radiating element: Brass

Mounting Section

Flanged base with 6 hole fixing on 190.5mm PCD

Length

5341 mm / 210.28 in.

Wind Load

1264 N (160km/h)

Weight

39.3 kg / 86.6 lb

Environmental

Survival Wind Speed

240 km/h

Ingress Protection

IP56

Diagram and Mounting

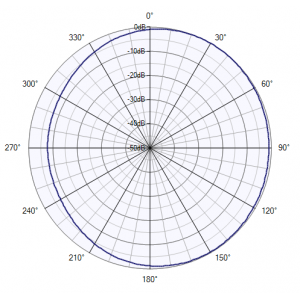

Azimuth Pattern, 805 MHz

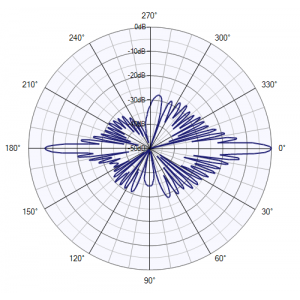

Elevation Pattern, 0°, 805 MHz

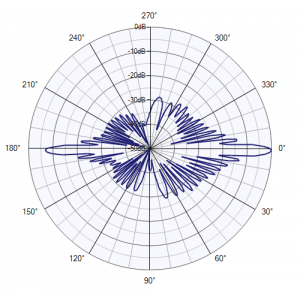

Elevation Pattern, 1°, 805 MHz

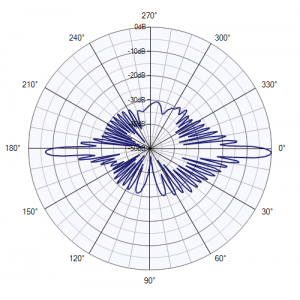

Elevation Pattern, 2°, 805 MHz

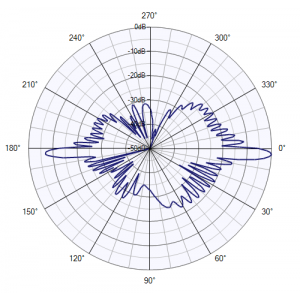

Elevation Pattern, 3°, 805 MHz

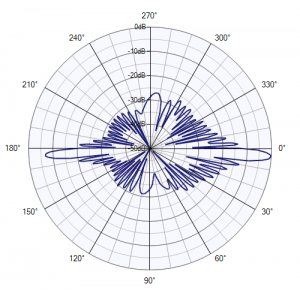

Elevation Pattern, 4°, 805 MHz

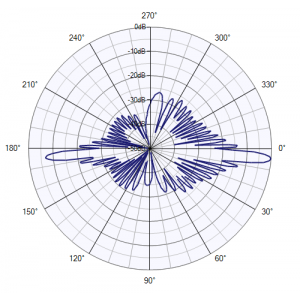

Elevation Pattern, 5°, 805 MHz

Ordering Designations

Model	Product No.	Description	Frequency
12 dBd HD antenna, Directional (A) Pattern, 740 - 870 MHz	4370.14-780-T0	0° Tilt, 7/16(f)	740 - 870 MHz
12 dBd HD antenna, Directional (A) Pattern, 740 - 870 MHz	4370.14-780-T1	1° Tilt, 7/16(f)	740 - 870 MHz
12 dBd HD antenna, Directional (A) Pattern, 740 - 870 MHz	4370.14-780-T2	2° Tilt, 7/16(f)	740 - 870 MHz
12 dBd HD antenna, Directional (A) Pattern, 740 - 870 MHz	4370.14-780-T3	3° Tilt, 7/16(f)	740 - 870 MHz
12 dBd HD antenna, Directional (A) Pattern, 740 - 870 MHz	4370.14-780-T4	4° Tilt, 7/16(f)	740 - 870 MHz
12 dBd HD antenna, Directional (A) Pattern, 740 - 870 MHz	4370.14-780-T5	5° Tilt, 7/16(f)	740 - 870 MHz
12 dBd HD antenna, Directional (A) Pattern, 740 - 870 MHz	4370.14-780-T0	0° Tilt, 4.3/10(f)	740 - 870 MHz
12 dBd HD antenna, Directional (A) Pattern, 740 - 870 MHz	4373.14-780-T1	1° Tilt, 4.3/10(f)	740 - 870 MHz
12 dBd HD antenna, Directional (A) Pattern, 740 - 870 MHz	4373.14-780-T2	2° Tilt, 4.3/10(f)	740 - 870 MHz
12 dBd HD antenna, Directional (A) Pattern, 740 - 870 MHz	4373.14-780-T3	3° Tilt, 4.3/10(f)	740 - 870 MHz
12 dBd HD antenna, Directional (A) Pattern, 740 - 870 MHz	4373.14-780-T4	4° Tilt, 4.3/10(f)	740 - 870 MHz
12 dBd HD antenna, Directional (A) Pattern, 740 - 870 MHz	4373.14-780-T5	5° Tilt, 4.3/10(f)	740 - 870 MHz
Accessories
Flange Mount bracket, c/w antenna fixings	FMT-190	Order with appropriate U-bolt kit for tube size.
U-Bolts (pair) for 76mm / 3" tube, c/w nuts & washers	UB-076
U-Bolt (pair) for 89mm / 3.5" tube, c/w nuts & washers	UB-089
U-Bolt (pair) for 114mm / 4.5" tube, c/w nuts & washers	UB-114
FMT-190 bracket with all above U-bolt kits	FMT-190-KIT
