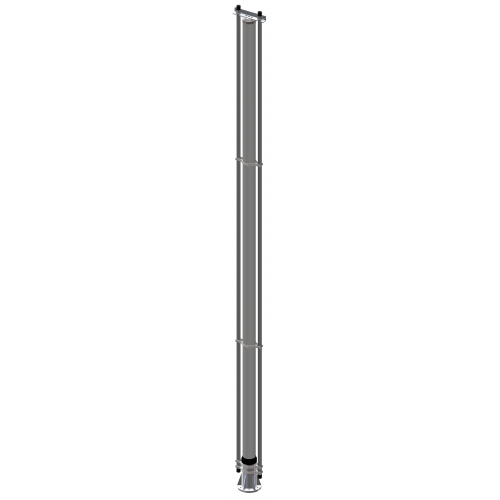

Omni Antennas447x.15-780-Tx

13 dBd HD antenna, Elliptical (H) Pattern,
740 - 870 MHz

Description

The 447xSeries colinear antennas are designed for LTE/GSM applications where a durable and high performance antenna is required.
The centre fed dipole design and feed network gives a stable radiation pattern across a wide bandwidth, allows tilted beam designs to be effectively employed without large pattern distortions, and fills the lower pattern nulls.
Reflectors are employed to give the antenna an elliptical radiation pattern in the azimuth plane.
High quality materials and manufacturing techniques are employed to ensure that the antenna has excellent intermodulation performance & wide bandwidth characteristics for multi-channel trunked radio communication systems.

Specifications

Electrical

Frequency

740 - 870 MHz

Max. Input Power

600 W

Polarisation

Vertical

Peak Instantaneous Power (PIP)

25 kW

3 dB Beamwidth, E-Plane

3° ±1°

3 dB Beamwidth, H-Plane

68° ±2°

Impedance

50 Ω

Gain	13 dBd (15.2 dBi)

VSWR

< 1.5:1

Passive Intermodulation

-153dBc (3rd Order, 2 x Tx @ 43dBm)

Antistatic Protection

All metal parts DC-grounded (Connector shows a DC-short)

Mechanical

Connection(s)

4470.15-780-Tx 7/16 DIN Female
4473.15-780-Tx 4.3/10 DIN Female

Materials

Antenna Base: Aluminium LM25
Shroud: GRP tube 128mm dia.
Radiating element: Brass

Mounting Section

Flanged base with 6 hole fixing on 190.5mm PCD

Length

5341 mm / 210.28 in.

Wind Load

1264 N (160km/h)

Weight

47.6 kg / 104.94 lb

Environmental

Survival Wind Speed

240 km/h

Ingress Protection

IP56

Diagram and Mounting

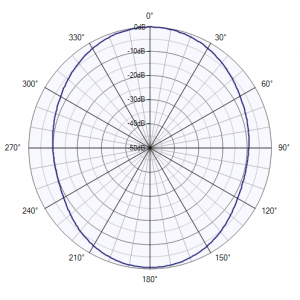

Aziumth Pattern, 805 MHz

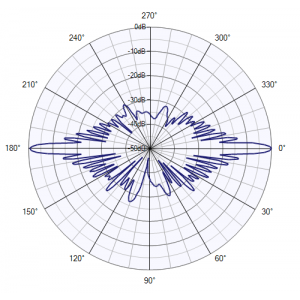

Elevation Pattern, 0°, 805 MHz

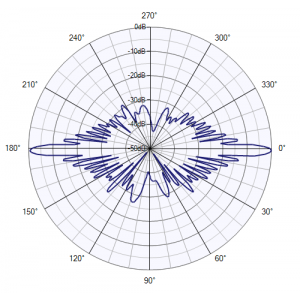

Elevation Pattern, 1°, 805 MHz

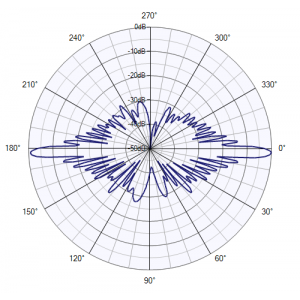

Elevation Pattern, 2°, 805 MHz

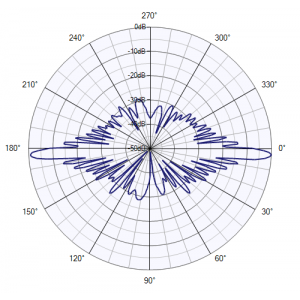

Elevation Pattern, 3°, 805 MHz

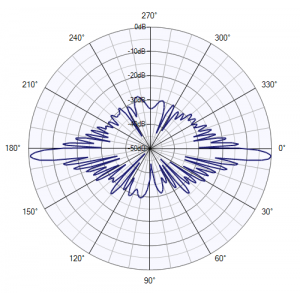

Elevation Pattern, 4°, 805 MHz

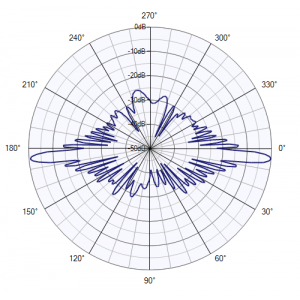

Elevation Pattern, 5°, 805 MHz

Ordering Designations

Model	Product No.	Description	Frequency
13 dBd HD antenna, Elliptical (H) Pattern, 740 - 870 MHz	4470.15-780-T0	0° Tilt, 7/16(f)	740 - 870 MHz
13 dBd HD antenna, Elliptical (H) Pattern, 740 - 870 MHz	4470.15-780-T1	1° Tilt, 7/16(f)	740 - 870 MHz
13 dBd HD antenna, Elliptical (H) Pattern, 740 - 870 MHz	4470.15-780-T2	2° Tilt, 7/16(f)	740 - 870 MHz
13 dBd HD antenna, Elliptical (H) Pattern, 740 - 870 MHz	4470.15-780-T3	3° Tilt, 7/16(f)	740 - 870 MHz
13 dBd HD antenna, Elliptical (H) Pattern, 740 - 870 MHz	4470.15-780-T4	4° Tilt, 7/16(f)	740 - 870 MHz
13 dBd HD antenna, Elliptical (H) Pattern, 740 - 870 MHz	4470.15-780-T5	5° Tilt, 7/16(f)	740 - 870 MHz
13 dBd HD antenna, Elliptical (H) Pattern, 740 - 870 MHz	4473.15-780-T0	0° Tilt, 4.3/10(f)	740 - 870 MHz
13 dBd HD antenna, Elliptical (H) Pattern, 740 - 870 MHz	4473.15-780-T1	1° Tilt, 4.3/10(f)	740 - 870 MHz
13 dBd HD antenna, Elliptical (H) Pattern, 740 - 870 MHz	4473.15-780-T2	2° Tilt, 4.3/10(f)	740 - 870 MHz
13 dBd HD antenna, Elliptical (H) Pattern, 740 - 870 MHz	4473.15-780-T3	3° Tilt, 4.3/10(f)	740 - 870 MHz
13 dBd HD antenna, Elliptical (H) Pattern, 740 - 870 MHz	4473.15-780-T4	4° Tilt, 4.3/10(f)	740 - 870 MHz
13 dBd HD antenna, Elliptical (H) Pattern, 740 - 870 MHz	4473.15-780-T5	5° Tilt, 4.3/10(f)	740 - 870 MHz
Accessories
Pole Mount Adaptor	470.8100
