Omni Antennas427x.10-780-Tx

10 dBd HD omni antenna 740 - 870 MHz, low PIM

Description

The 427x Series colinear antennas are designed for LTE/GSM applications where a durable and high performance antenna is required.
The centre fed dipole design and feed network gives a stable radiation pattern across a wide bandwidth, allows tilted beam designs to be effectively employed without large pattern distortions.
High quality materials and manufacturing techniques are employed to ensure that the antenna has excellent intermodulation performance & wide bandwidth characteristics for multi-channel trunked radio communication systems.
The antenna has been designed to withstand lightning strike. A lightning finial (optional) can be fitted into the top cap via an M10 thread and and earth connection made to the antenna base or clamp.

Specifications

Electrical

Frequency

740 - 870 MHz

Max. Input Power

600 W

Omni Deviation

< ± 1 dB

Polarisation

Vertical

Peak Instantaneous Power (PIP)

25 kW

3 dB Beamwidth, E-Plane

6° ±1°

3 dB Beamwidth, H-Plane

Omnidirectional

Impedance

50 Ω

Gain	10.0 dBd (12.2 dBi) Nominal

VSWR

< 1.5:1

Passive Intermodulation

-153dBc (3rd Order, 2 x Tx @ 43dBm)

Lightning Protection

Lightning current handling capability: 200 kA According to EN 62305-1 (Test pulse 10/350 μs)

Antistatic Protection

All metal parts DC-grounded (Connector shows a DC-short)

Mechanical

Connection(s)

4270.10-780-Tx 7/16 DIN Female
4273.10-780-Tx 4.3/10 DIN Female

Materials

Antenna Base: Aluminium LM25
Shroud: GRP tube 128mm dia.
Radiating element: Brass

Mounting Section

Flanged base with 6 hole fixing on 190.5mm PCD

Length

3505 mm / 138 in.

Wind Load

530 N (160km/h)

Weight

22 kg / 48.5 lb

Environmental

Survival Wind Speed

240 km/h

Ingress Protection

IP56

Diagram and Mounting

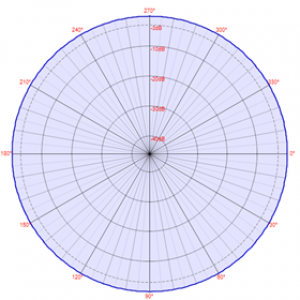

Azimuth Pattern

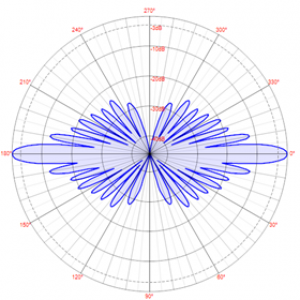

Elevation Pattern, 0°

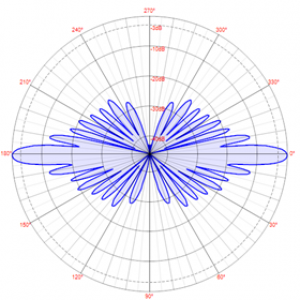

Elevation Pattern, 1°

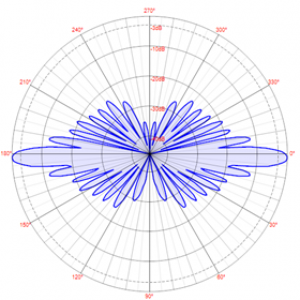

Elevation Pattern, 2°

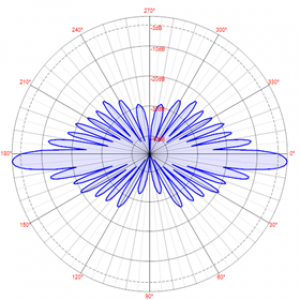

Elevation Pattern, 3°

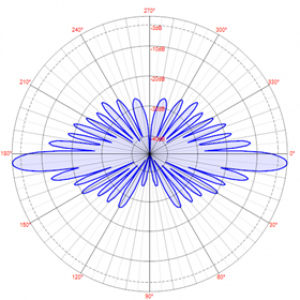

Elevation Pattern, 4°

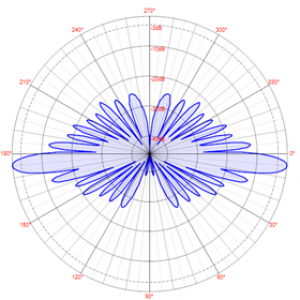

Elevation Pattern, 5°

Ordering Designations

Model	Product No.	Description	Frequency
10 dBd HD omni antenna 740-870MHz, low PIM	4270.10-780-T0	0° Tilt, 7/16(f)	740 - 870 MHz
10 dBd HD omni antenna 740-870MHz, low PIM	4270.10-780-T1	1° Tilt, 7/16(f)	740 - 870 MHz
10 dBd HD omni antenna 740-870MHz, low PIM	4270.10-780-T2	2° Tilt, 7/16(f)	740 - 870 MHz
10 dBd HD omni antenna 740-870MHz, low PIM	4270.10-780-T3	3° Tilt, 7/16(f)	740 - 870 MHz
10 dBd HD omni antenna 740-870MHz, low PIM	4270.10-780-T4	4° Tilt, 7/16(f)	740 - 870 MHz
10 dBd HD omni antenna 740-870MHz, low PIM	4270.10-780-T5	5° Tilt, 7/16(f)	740 - 870 MHz
10 dBd HD omni antenna 740-870MHz, low PIM	4273.10-780-T0	0° Tilt, 4.3/10(f)	740 - 870 MHz
10 dBd HD omni antenna 740-870MHz, low PIM	4273.10-780-T1	1° Tilt, 4.3/10(f)	740 - 870 MHz
10 dBd HD omni antenna 740-870MHz, low PIM	4273.10-780-T2	2° Tilt, 4.3/10(f)	740 - 870 MHz
10 dBd HD omni antenna 740-870MHz, low PIM	4273.10-780-T3	3° Tilt, 4.3/10(f)	740 - 870 MHz
10 dBd HD omni antenna 740-870MHz, low PIM	4273.10-780-T4	4° Tilt, 4.3/10(f)	740 - 870 MHz
10 dBd HD omni antenna 740-870MHz, low PIM	4273.10-780-T5	5° Tilt, 4.3/10(f)	740 - 870 MHz
Accessories
Pole Mount Adaptor	470.8100
Guy Line Adaptor Kit	XSL9258350
Lightning Finial Kit (150mm / 6")	XSL9256887
