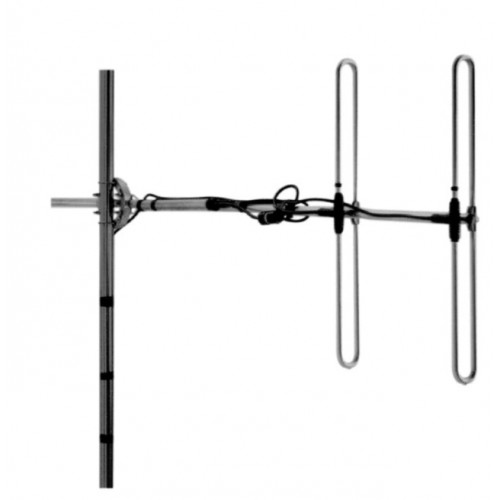

A linear array of two VHF dipole elements with phasing harness mounted on an aluminium boom. Careful attention to element phasing results in a “Cardiod” shaped radiation pattern with high F/B ratio compared to an equivalent sized Yagi antenna. Antennas of this type find use in PMR/Trunked Radio and Broadcast applications needing very high F/B performance. Produced to the highest quality standards, these robust antenna designs will insure reliable operation in harsh environmental conditions.
• Former Jaybeam brand product.
Beschreibung
Spezifikationen
| Elektrisch DE | ||
|---|---|---|
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
| Mechanisch DE | ||
|---|---|---|
|
||
|
||
|
||
|
||
|
||
|
||
|
||
E-Plane | 144 MHz

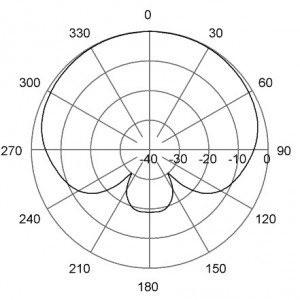

H-Plane | 144 MHz Bestellbezeichnungen
| Modell | Produkt Nr. | Frequenz | ||
|---|---|---|---|---|
| Cardioid array 139.5-149 MHz | 7170130 | 139.5 - 149 MHz | Verfügbarkeit | |
| Accessories | ||||
| Galvanised steel crossover bracket 32/50mm | 0900912/00 | Verfügbarkeit | ||
| Pressed steel cross clamp 2" x 1-1/4" (JBL73) | 0302032/68 | Verfügbarkeit | ||
| Cast aluminium cross clamp, circular | 0300064/00 | Verfügbarkeit | ||
| M8 x 50mm (2") U-Bolts (1 Pair) | 4884036/00 | Verfügbarkeit | ||
| M8 x 75mm (3") U-Bolts (1 Pair) | 4884076/00 | Verfügbarkeit | ||
| Fixed norstel / coupler clamp (cross clamp) | 3202078/68 | Verfügbarkeit | ||
| Increasing sleeve | 3201079/00 | Verfügbarkeit | ||
