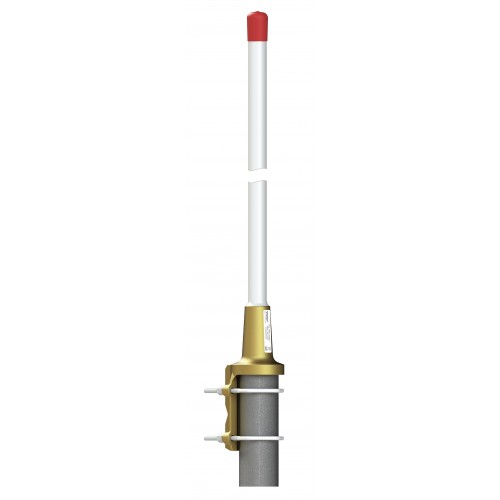

- CXL 900-3LW/… is a 2.7 dBd, vertically polarized, omnidirectional rod-type base station and marine antenna which covers the 900 MHz band in four models.
- The carefully designed, broad-banded antenna element is sealed in a high-quality, conical glass fibre tube with low wind-load, which will ensure performance undisturbed by corrosive environments.
- The phasing of the radiating elements is adjusted to yield maximum gain in the horizontal plane, with the level of the sidelobes reduced to a minimum.
- Provided with the sturdy “LW” mast mount – a lightweight, multipurpose, epoxy-coated mounting bracket made of non-corrosive aluminium.
- The accompanying U-bolts and fittings are made of stainless steel.
- To be mounted on vertical or horizontal mast tubes, 16 to 54 mm in outer diameter.
- The cable can be led either on the outside or along the inside of the mast tube.
- Large bandwidth with respect to both VSWR and gain.
- To substantially reduce noise caused by atmospherical discharges, all metal parts in the antenna are DC-grounded. Consequently, the antenna shows a DC-short across the coaxial cable.
- The CXL 900-3LW/… is a vibration-proof, lightweight, slim-line, corrosion resistant, modern style base station and marine antenna.
MarineCXL 900-3LW
Universal, 2.7 dBd Base Station and Marine Antenna for the 900 MHz Band
Beschreibung
Spezifikationen
| Elektrisch DE | ||
|---|---|---|
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
| Mechanisch DE | ||
|---|---|---|
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
| Umwelt | ||
|---|---|---|
|
||
|
||
Bestellbezeichnungen
| Modell | Produkt Nr. | Frequenz | ||
|---|---|---|---|---|
| CXL 900-3LW/l | 110000426 | 824 - 894 MHz | Verfügbarkeit | |
| CXL 900-3LW/m | 110000457 | 870 - 950 MHz | Verfügbarkeit | |
| CXL 900-3LW/h | 110000427 | 890 - 960 MHz | Verfügbarkeit |
Please Note
The antenna is delivered with a DC-connection between the antenna element and the mounting bracket.
