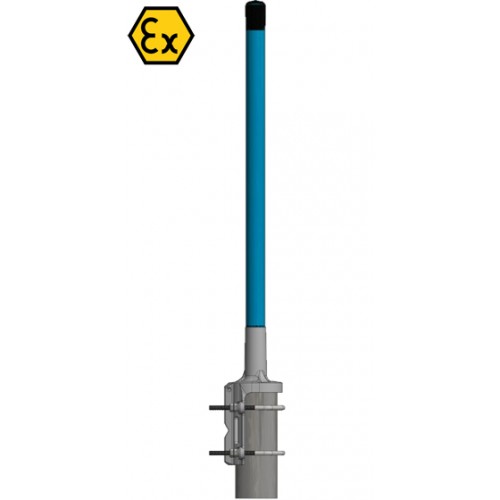

- CXL 2400-3LW-SS-Ex is a 3 dBd, vertically polarized, omnidirectional base station Antenna which covers the 2200 - 2700 MHz band in four models.
- The antenna is specified as an ATEX antenna for use in zone 2 in potentially explosive areas.
- Before installing the antenna, please read the ATEX Product Manual carefully.
- The antenna is suitable for use in gas groups IIA, IIB and IIC in zone 2.
- It’s only necessary to install an ATEX grounding Kit on the LW-SS-Ex bracket, when the point of installation has a different electrical potential than the system.
- The accompanying U-bolts and fittings are made of stainless steel.
- The antenna element is sealed in a high-quality glass fibre tube.
- All metal parts in the antenna are DC-grounded. Consequently, the antenna shows a DC-short across the coaxial cable.
LTE 4G/5G AntennasCXL 2400-3LW-SS-Ex
ATEX certified, 3 dBd, Omnidirectional Base Station Antenna for the 2200 - 2700 MHz Band in Hazardous areas
Beschreibung
Spezifikationen
| Elektrisch DE | ||
|---|---|---|
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
| Mechanisch DE | ||
|---|---|---|
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
| Umwelt | ||
|---|---|---|
|
||
|
||
|
||
Bestellbezeichnungen
| Modell | Produkt Nr. | Frequenz | ||
|---|---|---|---|---|
| CXL 2400-3LW-SS-Ex/ll | Contact for availability | 2200 - 2300 MHz | Verfügbarkeit | |
| CXL 2400-3LW-SS-Ex/l | Contact for availability | 2300 - 2500 MHz | Verfügbarkeit | |
| CXL 2400-3LW-SS-Ex/m | 115000022 | 2400 - 2600 MHz | Verfügbarkeit | |
| CXL 2400-3LW-SS-Ex/h | Contact for availability | 2500 - 2700 MHz | Verfügbarkeit | |
| Zubehör | ||||
| ATEX Grounding Kit | 115000100 | Verfügbarkeit | ||
Calculation of max. Antenna input power in different ATEX groups
| ATEX GROUP | MAX. EIRP POWER | ANTENNA GAIN | MAX INPUT POWER |
|---|---|---|---|
| IIA | 37.7 dBm (6.0 W) | 3 dBd / 5.15 dBi | 32.6 dBm (1.8 W) |
| IIB | 35.4 dBm (3.5 W) | 3 dBd / 5.15 dBi | 30.3 dBm (1.0 W) |
| IIC | 33.0 dBm (2.0 W) | 3 dBd / 5.15 dBi | 27.8 dBm (0.6 W) |
Mounting Details

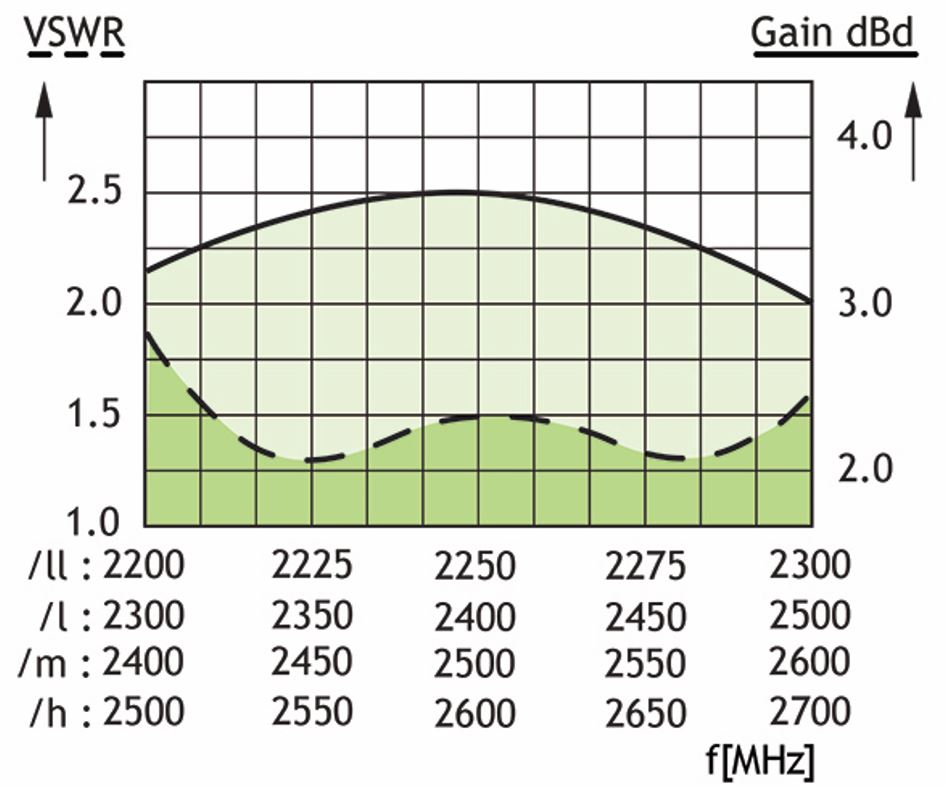

Typical Gain and VSWR Curve

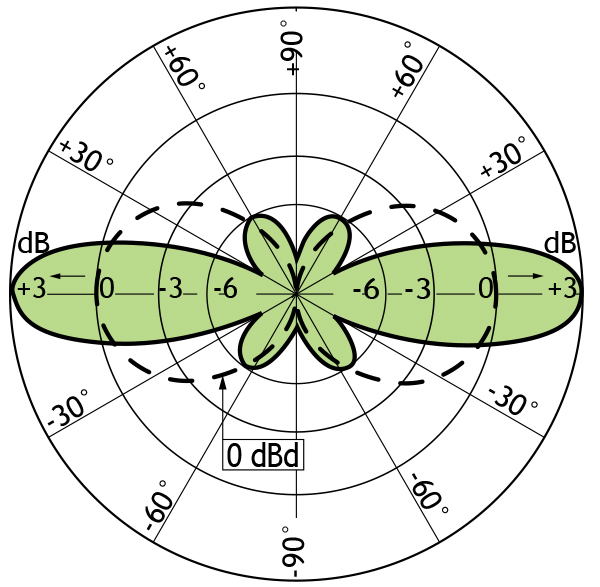

Typical Radition Pattern (E-Plane)
Typical Radition Pattern (H-Plane)
