- The 424x Series colinear antennas are designed for LTE/GSM applications where a durable and high performance antenna is required.
- The centre fed dipole design and feed network gives a stable radiation pattern across a wide bandwidth, and allows tilted beam designs to be effectively employed without large pattern distortions.
- High quality materials and manufacturing techniques are employed to ensure that the antenna has excellent intermodulation performance & wide bandwidth characteristics for multi-channel trunked radio communication systems.
- The antenna has been designed to withstand lightning strike.
LTE 4G/5G Antennas424x.06-780-Tx
6 dBd HD LTE omni antenna 695 - 870 MHz, low PIM
Beschreibung
Spezifikationen
| Elektrisch DE | ||
|---|---|---|
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
| Mechanisch DE | ||
|---|---|---|
|
||
|
||
|
||
|
||
|
||
|
||
|
||
| Umwelt | ||
|---|---|---|
|
||
|
||

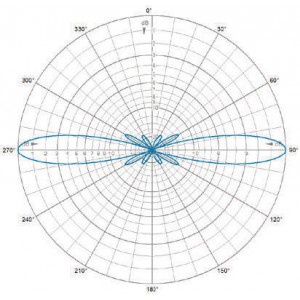

E-Plane | 780 MHz

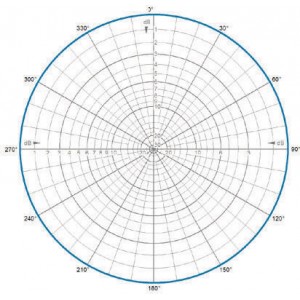

H-Plane | 780 MHz Bestellbezeichnungen
| Modell | Produkt Nr. | Beschreibung | Frequenz | ||
|---|---|---|---|---|---|
| 6 dBd HD LTE omni antenna, low PIM | 4240.06-780-T0 | 7/16 DIN(f) ; 0° Electrical Tilt | 695 - 870 MHz | Verfügbarkeit | |
| 6 dBd HD LTE omni antenna, low PIM | 4240.06-780-T3 | 7/16 DIN(f) ; 3° Electrical Tilt | 695 - 870 MHz | Verfügbarkeit | |
| 6 dBd HD LTE omni antenna, low PIM | 4240.06-780-T6 | 7/16 DIN(f) ; 6° Electrical Tilt | 695 - 870 MHz | Verfügbarkeit | |
| 6 dBd HD LTE omni antenna, low PIM | 4243.06-780-T0 | 4.3-10(f) ; 0° Electrical Tilt | 695 - 870 MHz | Verfügbarkeit | |
| 6 dBd HD LTE omni antenna, low PIM | 4243.06-780-T3 | 4.3-10(f) ; 3° Electrical Tilt | 695 - 870 MHz | Verfügbarkeit | |
| 6 dBd HD LTE omni antenna, low PIM | 4243.06-780-T6 | 4.3-10(f) ; 6° Electrical Tilt | 695 - 870 MHz | Verfügbarkeit | |
| Accessories | |||||
| Galvanised steel parallel bracket | 2141.01.00.00 | 38 - 120 mm (PAIR) | Verfügbarkeit | ||
| Extruded Parallel Tube Clamp | ETC-250 | 50 - 76 mm | Verfügbarkeit | ||
