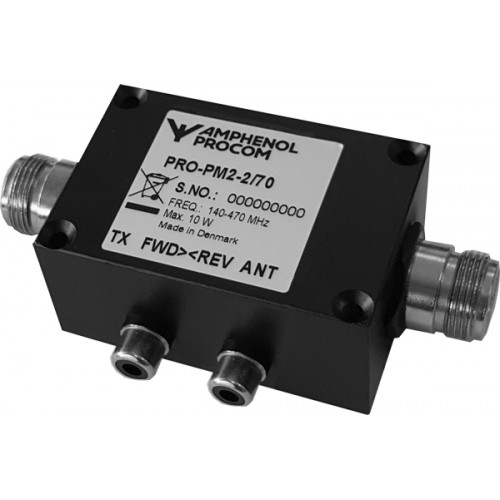

- Compact bi-directional power monitor for the frequency range 140 - 470 MHz.
- PRO-PM2-2/70 is adjusted to give 13 V ± 0.5 V at 470 MHz and 250 W input power.

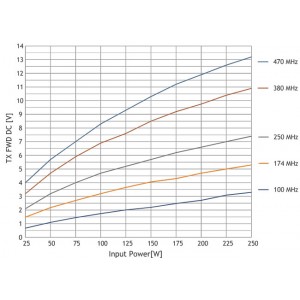

- Typical values of the Tx FWD DC voltage as a function of input power and frequency is shown in the figure below.
- The technology used can generate 2. harmonic. Therefore, it is recommended to use low pass filtering on the output.
Beschreibung
Spezifikationen
| Elektrisch DE | ||
|---|---|---|
|
||
|
||
|
||
|
||
|
||
|
||
| Mechanisch DE | ||
|---|---|---|
|
||
|
||
|
||
| Umwelt | ||
|---|---|---|
|
||
Diagramm und Montage
TYPICAL RESPONSE CURVES
The maximum TX FWD DC voltage can be adjusted, if necessary._x000d_In that case, new DC voltage vs. power curves must be made again.
MOUNTING DETAILS

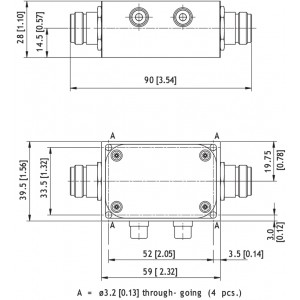

![All dimensions are given in mm [in.]](https://amphenolprocom.com/images/shop/cache/catalog/procomproducts/combiners/PRO-PM2-2-70-250W-holeplacing-300x300.jpg "MOUNTING DETAILS")
All dimensions are given in mm [in.]
Bestellbezeichnungen
| Modell | Produkt Nr. | ||
|---|---|---|---|
| PRO-PM2-2/70-250W-N(f)-N(f) | 210000982 | Verfügbarkeit | |
| PRO-PM2-2/70-250W-N(MF) | 210000967 | Verfügbarkeit |

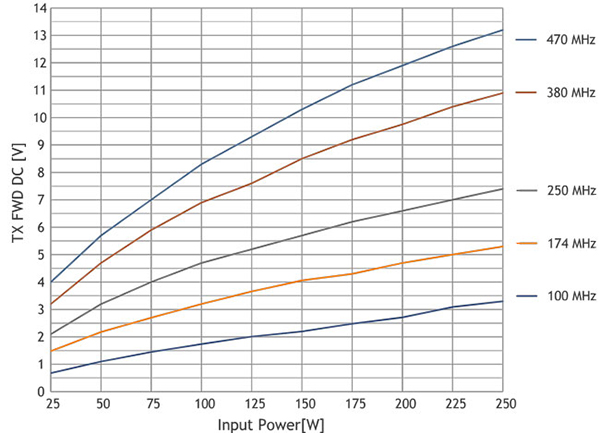

Typical response curve
The maximum Tx FWD DC voltage can be adjusted, if necessary.
In that case, new DC voltage vs. power curves must be made again.

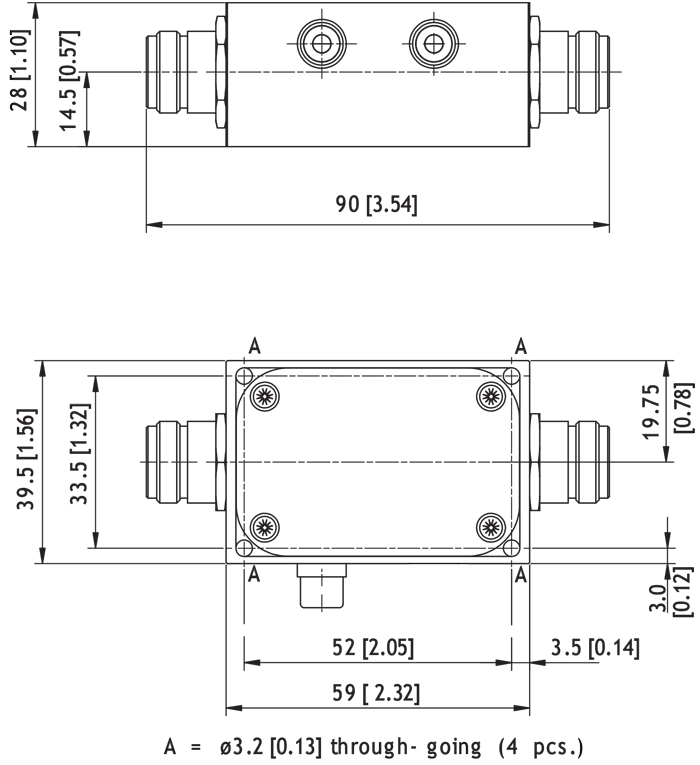

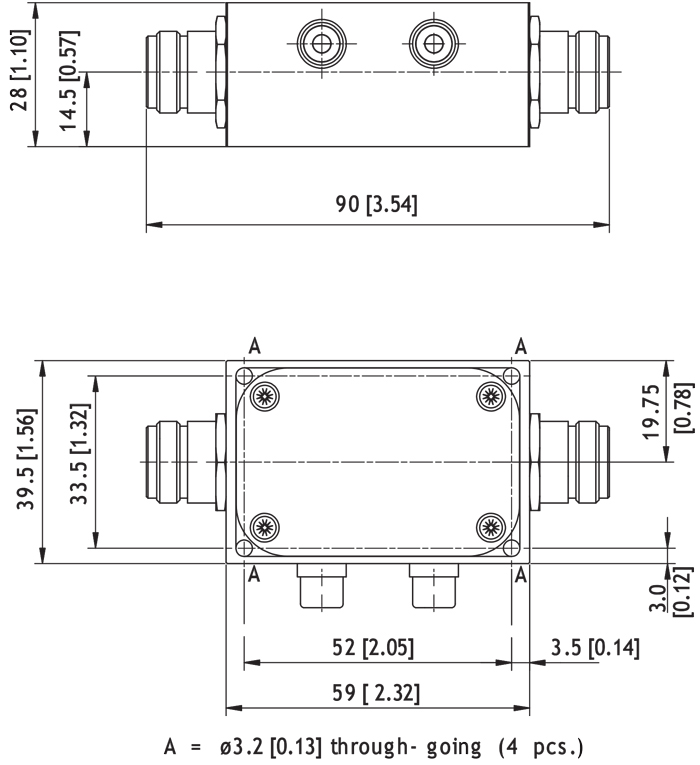

Mounting Details
All dimensions are given in mm [in.]
