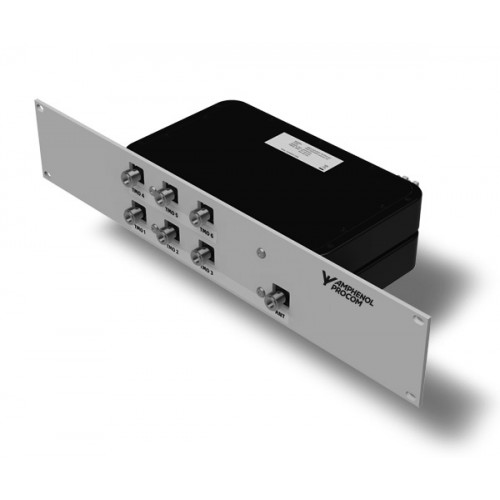

PRO-ISO-PHY-TETRA-S6

Kompakte KoppelnetzwerkePRO-ISO-PHY-TETRA-S6

Six-TETRA-Station Combiner

Beschreibung

  • The PRO-ISO-PHY-TETRA-S6 combiner provides the possibillity of connecting up to six TETRA radios into one common antenna.
  • All PRO-ISO-PHY units are designed for single carrier signal per port and thus it is not recommended to add a multiple carrier signal on the input ports, as this could potentially create unwanted intermodulation products transmitted on the antenna port and reflected on the input ports.
  • ETSI compliant connection of six digital radios.
  • The PRO-ISO-PHY-TETRA-S6 has high isolation between the ports more than 62 dB - and low insertion loss.
  • The use of high-quality system components such as highly selective helical duplex filters and high-performance isolators provides high isolation and secure communication.
  • The smallest and most compact design on the market.
  • Suitable for both stationary and mobile use.
  • Delivered with a 19" front plate for rack mounting (Unassembled).
  • Jumper cables included.

Spezifikationen

Elektrisch DE
Modell PRO-ISO-PHY-TETRA-S6
Frequenz Tx : 380 - 385 MHz
Rx : 390 - 395 MHz or
Tx : 410 - 415 MHz
Rx : 420 - 425 MHz
Typ TETRA-Kombinierer
Max. Eingangsleistung 25 W / station
Einfügedämpfung Tx-Ant. < 13 dB
Einfügedämpfung Rx-Ant. < 13 dB
Isolation TRx - TRx Tx - Tx : > 60 dB
Rx - Rx : > 60 dB
Tx - Rx / Rx - Tx : > 60 dB
VSWR < 1.5:1
Gruppensignallaufzeit Tx - ANT. < 120 nsec.
Rx - ANT. < 150 nsec.
Anzahl der kanäle 6
Mechanisch DE
Anschlusstyp N(f)
Farbe Combiner : BlackFrontplate : Aluminium
Abmessungen 19" x 2 HU x 154 mm (excl. conn.)
(482.6 x 88.1 x 154 mm) /
19 x 3.47 x 6.06 in.
Gewicht ca. 5.3 kg
Umwelt
IP Schutzklasse IP62

Bestellbezeichnungen

Modell Produkt Nr. Frequenz
PRO-ISO-PHY-385/390-S6-TR-B-N(f) 210002299 380 - 385 MHz / 390 - 395 MHz Verfügbarkeit
PRO-ISO-PHY-385/390-S6-TR-F-N(f) 210002356 380 - 385 MHz / 390 - 395 MHz Verfügbarkeit
PRO-ISO-PHY-415/420-S6-TR-B-N(f) 210002357 410 - 415 MHz / 420 - 425 MHz Verfügbarkeit
PRO-ISO-PHY-415/420-S6-TR-F-N(f) 210002358 410 - 415 MHz / 420 - 425 MHz Verfügbarkeit

Option TR-F

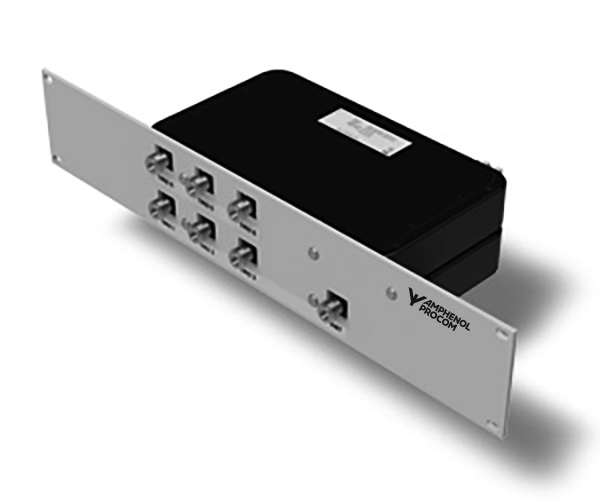

PRO ISO PHY TETRA S6 FRONT 2

Anschluss Diagramm

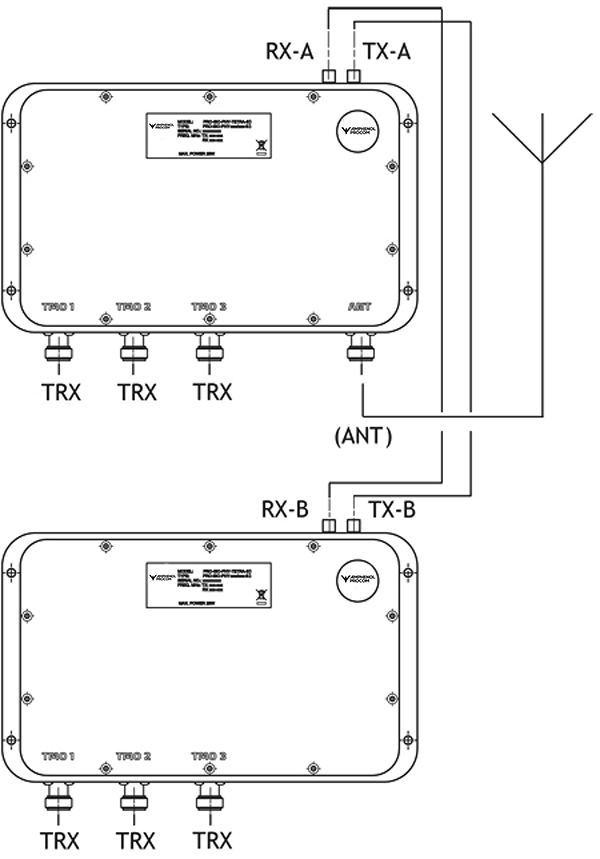

PRO ISO PHY TETRA S6 conn diagram

Option TR-B

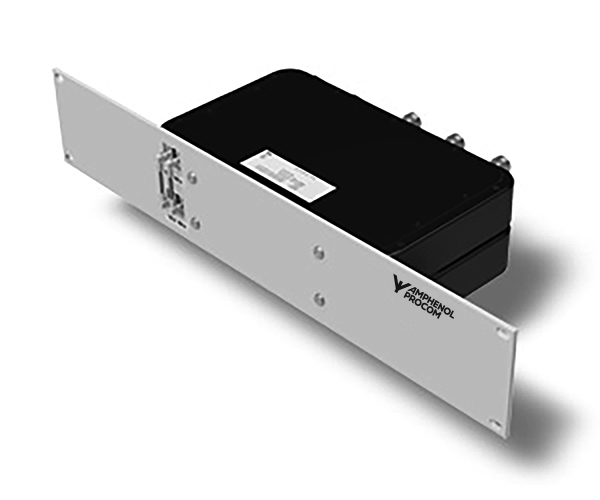

PRO ISO PHY TETRA S6 Back
