PCPI xH/TETRA/...

AntennenPCPI xH/TETRA/...

Indoor Left or Right Hand Circularly Polarized Patch Antennas for mounting on Wall / Ceiling or Mast.

Beschreibung

  • Low-profile antenna for the 380 - 470 MHz band.
  • PCPI xH/TETRA/... is a Left or Right Hand Circularly Polarized
    patch antenna for indoor use.
  • Circular polarization is chosen to avoid out-of-phase signals.
  • Reduces flutter considerably.
  • Specially designed for closed rooms.
  • Covers approx. 50 MHz with a radiation of approx. 7 dBic (5 dBi in each E- and H-plane).
  • The antennas are carefully sealed with a discreet cover.
  • The connector is placed at one side to enable mounting close
    to a wall or a ceiling.
  • Including wall mounting bracket. PATCH-MAMO and PATCH-WAMO to be ordered separately.
  • Connection also available on backside (see overleaf).

Spezifikationen

Elektrisch DE
Modell PCPI xH/TETRA/...
Frequenz 380 - 470 MHz covered by two models
Antennentyp Left or right hand circularly polarized patch antenna
Max. Eingangsleistung 100 W
Polarisation Zirkular
Öffnungswinkel 3 dB, vertikal 80 °
Öffnungswinkel 3 dB, horizontal 80 °
Impedanz 50 Ω
Gewinn 7 dBic (5 dBi)
VSWR < 2.0:1
HCM-Code(s) HCM045EA15, 043EA15
In iBwave Ja
Mechanisch DE
Anschlusstyp N(f)
Materialien Cover : ABS (white)
Chassis : Aluminium
Farbe Marine white
Abmessungen ca. 345 x 345 x 60 mm
Gewicht ca. 2.3 kg
Montage For mounting on wall or ceiling 5 mm / 0.20 in. (three holes) (see mounting details) or
mast on 40 - 54 mm / 1.57 - 2.13 in. dia. mast tube.
Umwelt
Betriebstemperaturbereich -30 °C to +75 °C

Diagramm und Montage

MOUNTING DETAILS (wall mounting bracket included)

MOUNTING DETAILS BACK CONNECTOR VERSION_x000d_(wall mounting bracket included)

Mast mounting bracket: PATCH-MAMO (ordered separately)

Tilt adjustable from +5˚/-30˚. Tilt adjustable from +5˚/-30˚.

MOUNTING DETAILS (PATCH-MAMO)

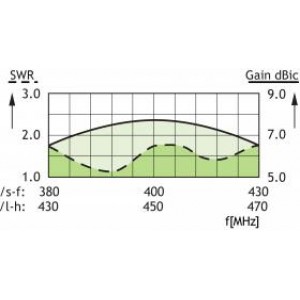

TYPICAL GAIN AND SWR CURVES

TYPICAL RADIATION PATTERN (E-PLANE)

This curve shows the radiation patterns in the vertical plane. This curve shows the radiation patterns in the vertical plane.

TYPICAL RADIATION PATTERN (H-PLANE)

This curve shows the radiation patterns in the horizontal plane (horizontal coverage). This curve shows the radiation patterns in the horizontal plane (horizontal coverage).

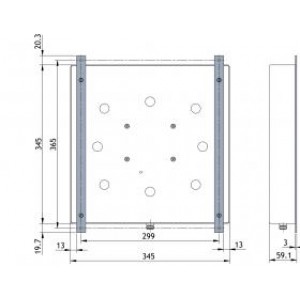

MOUNTING DETAILS PATCH-WAMO (ordered separately)

Bestellbezeichnungen

Modell Produkt Nr. Beschreibung Frequenz
PCPI RH/TETRA/s-f 100000426 Standard Version, RHCP 380 - 430 MHz Verfügbarkeit
PCPI LH/TETRA/s-f 100000425 Standard Version, LHCP 380 - 430 MHz Verfügbarkeit
PCPI RH/TETRA/l-h 100000442 Standard Version, RHCP 430 - 470 MHz Verfügbarkeit
PCPI LH/TETRA/l-h 100000441 Standard Version, LHCP 430 - 470 MHz Verfügbarkeit
PCPI RH/TETRA/s-f-BC 100000468 Back Connector Version, RHCP 380 - 430 MHz Verfügbarkeit
PCPI LH/TETRA/s-f-BC 100000915 Back Connector Version, LHCP 380 - 430 MHz Verfügbarkeit
PCPI RH/TETRA/l-h-BC 100000916 Back Connector Version, RHCP 430 - 470 MHz Verfügbarkeit
PCPI LH/TETRA/l-h-BC 100000917 Back Connector Version, LHCP 430 - 470 MHz Verfügbarkeit
Accessories
PATCH-WAMO 100000511 Bracket Verfügbarkeit
PATCH-MAMO 100000447 Bracket Verfügbarkeit
