- The ProEdge provides antennas for multiple technologies in fixed or mobile end-point device applications.
- Ideal for Industrial robotics and telemetry, smart metering, autonomous vehicles, smart cities and automated parking, backup and remote terminal data connections.
- In-built 2x2 MIMO antenna for use with LTE/4G (617 - 960 MHz and 1710 - 3800 MHz) up to two WiFi 6E 2.4/4.9-7.2 GHz.
- Optional GNSS antenna for GPS L1, Glonass, Beidou and Galileo.
- Full hemispherical coverage for the GNSS antennas.
- Built-in high gain, low noise amplifier.
- Right-Hand Circular Polarization.
- 3 - 15 V DC for GNSS supply.
- Can be configuered as 2-in-1, 3-in-1, 4-in-1 or 5-in-1.
- DC supply via GNSS RF-connector.
- ECE R118.02 approved cable.
- IP69 Ingress protection.
- IK10 rated enclosure.
GNSS Combination AntennasProEdge
A 2x2 MIMO LTE and WIFI multi purpose antenna for 2G/3G/4G/5G,
CBRS and WIFI 6E 2.4/4.9-7.2 GHz with optional GNSS
CBRS and WIFI 6E 2.4/4.9-7.2 GHz with optional GNSS
Beschreibung
Spezifikationen
| Elektrisch DE | |||||
|---|---|---|---|---|---|
|
|||||
|
|||||
|
|||||
|
|||||
|
|||||
|
|||||
|
|||||
|
|||||
|
|||||
| Mechanisch DE | ||
|---|---|---|
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
| GNSS-Antenne | ||
|---|---|---|
|
||
|
||
|
||
|
||
| GNSS LNA | ||
|---|---|---|
|
||
|
||
|
||
|
||
|
||
|
||
|
||
| Umwelt | ||
|---|---|---|
|
||
|
||
|
||
Note
* Measured with 5 m [196.85 in.] of LMR 195 cable on a 600 x 600 mm [23.6 x 23.6 in.] groundplane.
Ordering designations
Use the guide below to make the name of the ProEdge you would like to buy.
| Model Name | Cover color | No. of GNSS | No. of LTE | No. of WIFI antennas | Cable length | Connectors on LTE | Connectors WIFI | Connectors on GNSS |
|---|---|---|---|---|---|---|---|---|
| ProEdge | -W (White) -B (Black) |
Blank -G1 (1x GNSS) |
-L2 (2x LTE antennas) | Blank (No WIFI) -W1 (1x WIFI antenna) -W2 (2x WIFI antennas) |
Blank (approx. 0.3 m / 1 ft cable length) -P5 (5 m / 16.4 ft cable length) |
-S (SMA-M) -FAKRA (on request) |
Blank (no WIFI) /S (SMA-M) /RP-S (Reverse Polarity SMA-M) /FAKRA (on request) |
/S (SMA-M) /FAKRA (on request) |
| Naming Example | ||||||||
| ProEdge | -B | -G1 | -L2 | -W2 | -P5 | -S | /RP-S | /S |
ProEdge-B-G1-L2-W2-P5-S/RP-S/S
Typical Radiation Patterns (650 - 2100 MHz)

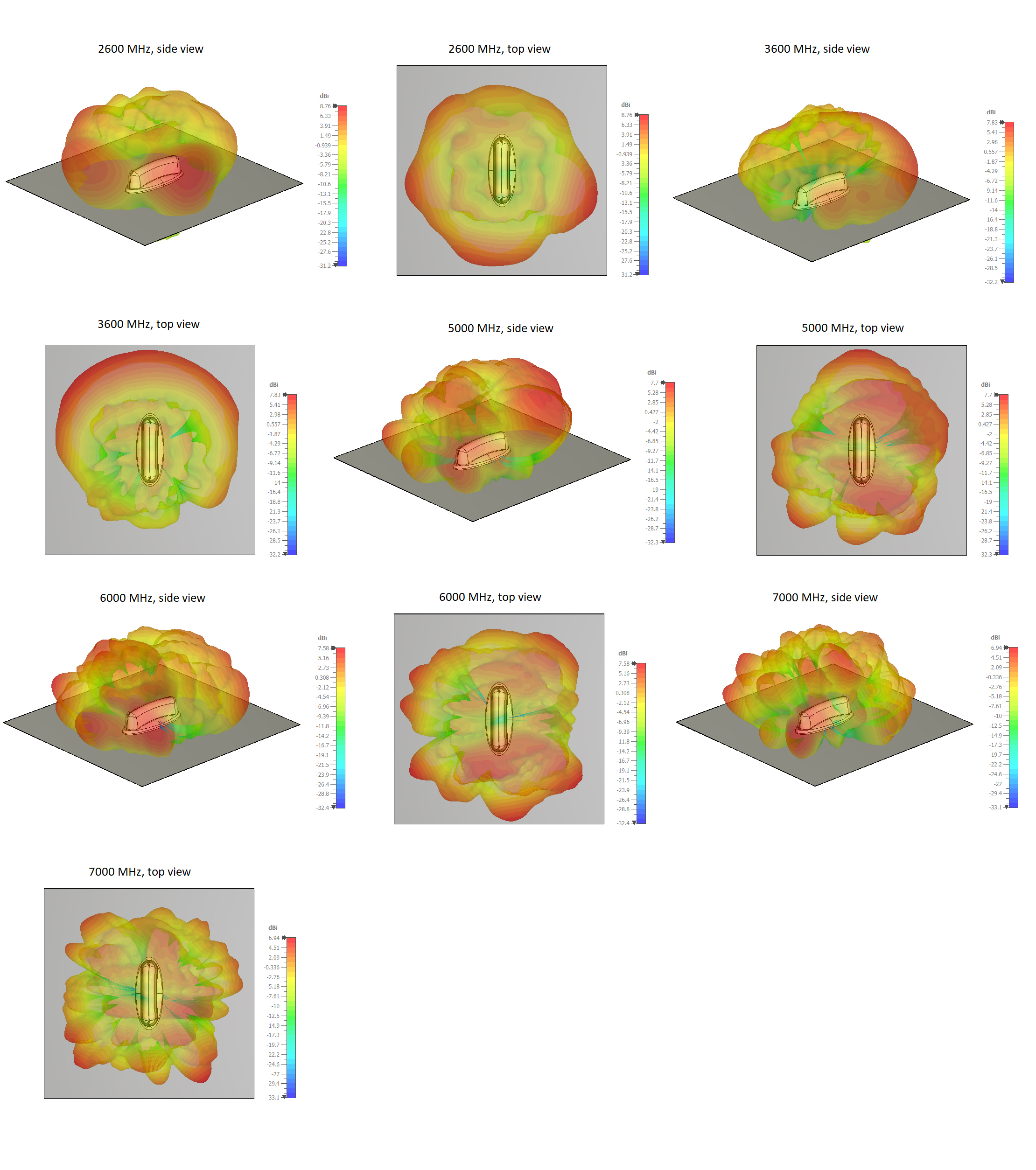

Typical Radiation Patterns (2600 - 7000 MHz)

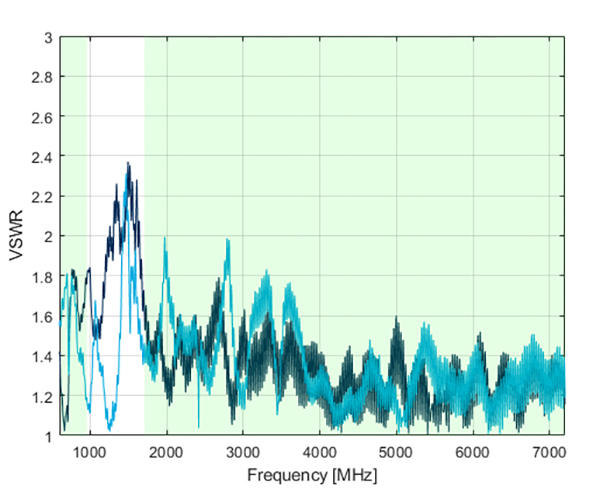

Typical VSWR curve 4G/5G/WiFi port 1 & 2
* Measured with 5 m [196.85 in.] of LMR 195 cable on a 600 x 600 mm [23.6 x 23.6 in.] groundplane.

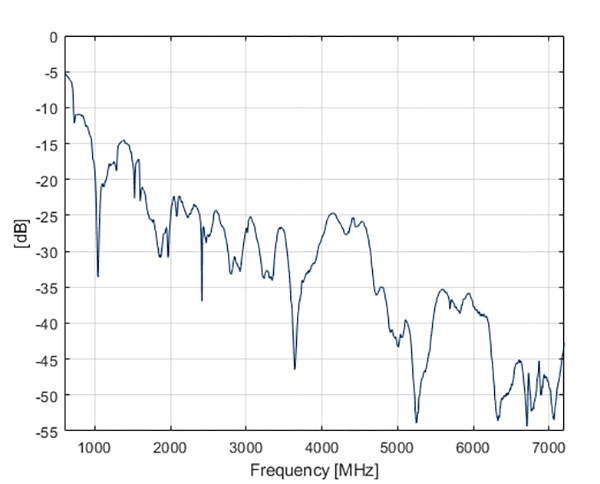

Typical Isolation curve 4G/5G/WiFi between port 1 & 2
* Measured with 5 m [196.85 in.] of LMR 195 cable on a 600 x 600 mm [23.6 x 23.6 in.] groundplane.

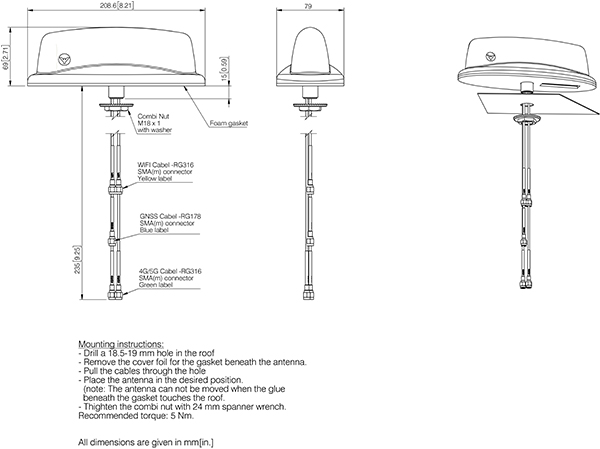

Mechanical Outline
All dimesions are given in mm[in.]
