- Hybrid Coupler with 3 dB coupling covering the 117 - 137 MHz band.
- Excellent high-power performance.
- If working as combiner max. input power 100 W per port into max. two ports of the four ports.
- If working as splitter 200 W into max. one port.
- Very low insertion loss over the entire frequency range.
- Available with N(f), 4.3/10(f) or 7/16-DIN(f) connectors.
- 3 dB 90° Hybrid Couplers also known as quadrature hybrids are a passive four port device that can be used in many different modes depending on the application. It can be used as a splitter, combiner or injection of a signal into a signal path.
Beschreibung
Spezifikationen
| Elektrisch DE | ||
|---|---|---|
|
||
|
||
|
||
|
||
|
||
|
||
|
||
| Mechanisch DE | ||||
|---|---|---|---|---|
|
||||
|
||||
|
||||
|
||||
|
||||
|
||||
|
||||
| Umwelt | ||
|---|---|---|
|
||
|
||
Bestellbezeichnungen
| Modell | Produkt Nr. | ||
|---|---|---|---|
| PRO-PHY 117-137-3 dB-N(f) | 200002411 | Verfügbarkeit | |
| PRO-PHY 117-137-3 dB-4.3/10(f) | 200002724 | Verfügbarkeit | |
| PRO-PHY 117-137-3 dB-7/16(f) | 200002412 | Verfügbarkeit |
Block Diagram
Different modes of the 3 dB Hybrid Coupler
Coupler splitter mode:
Divides the signal into two equal components with a 90° phase difference that can be used to split signals from tower top amplifiers to the base station receivers.
Coupler combiner mode 1:
If the same signals is applied at the input ports with a 90° phase difference the signals adds up on one port.
Coupler combiner mode 2:
Combining two non-coherent signals that are available at both ports.
Common applications of 3 dB 90° Hybrid Couplers
- Combining two transmitters with very narrow spacing to one common antenna or to a DAS network.
- Combining two carrier inputs to one or two antennas or leaky feeder/radiating cables.
- Splitting signals from tower mounted amplifiers to base station receivers.

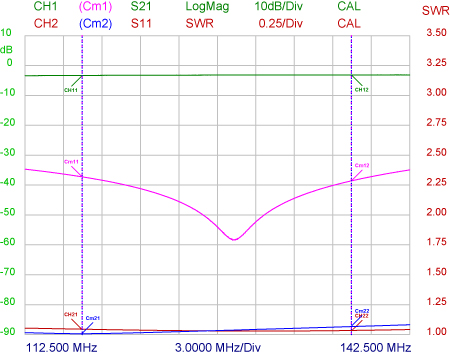

Typical coupling, isolation and VSWR curves
Mounting Details
All dimensions are given in mm [in.]
