DiplexerDIPX 108/136-...

Diplexer for the 0 - 108 MHz and 136 - 1300 MHz Ranges

Beschreibung

Diplexer for combining or splitting the two ranges 0 - 108 MHz and 136 - 1300 MHz.
Excellent wide-band coverage – usable for a lot of applications.
Very small dimensions, mounted in a 45 x 50 mm box.
Provided with dual adhesive pad for quick installation.
Available with SMA or BNC connector types.
Coated with black vinyl to prevent corrosion.

Spezifikationen

Elektrisch DE

Modell

DIPX 108/136-...

Frequenz

Low port : 0 - 108 MHz
High port : 136 - 1300 MHz

Max. Eingangsleistung

25 W each port

Einfügedämpfung

0 - 108 MHz : < 1.0 dB
136 - 1300 MHz: < 0.8 dB

Impedanz

50 Ω

Isolierung

Low to high port > 37 dB

VSWR	Low port: 0 - 108 MHz: ≤ 1.5:1 High port: 136 - 1000 MHz: ≤ 1.5:1 1000 - 1300 MHz: ≤ 1.8:1

Mechanisch DE

Anschlusstyp

BNC(f) oder SMA(f)

Abmessungen

BNC(f), SMA(f):
50 x 21 x 52 mm (incl. conn.)

Gewicht

ca. 0.065 kg

Umwelt

Betriebstemperaturbereich

-30 °C to +60 °C

IP Schutzklasse

IP41

Bestellbezeichnungen

Modell	Produkt Nr.
DIPX 108/136-SMA(f)	200002657	Verfügbarkeit
DIPX 108/136-BNC(f)	200000705	Verfügbarkeit

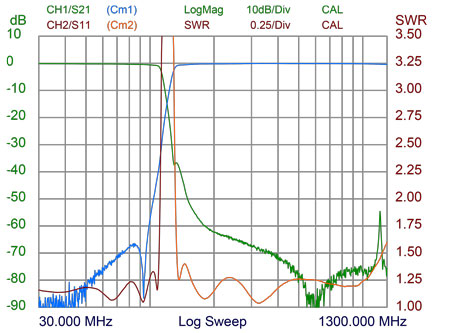

Typischer kurvenverlauf

Mechanical Outline

Alle Abmessungen in mm.

Installation

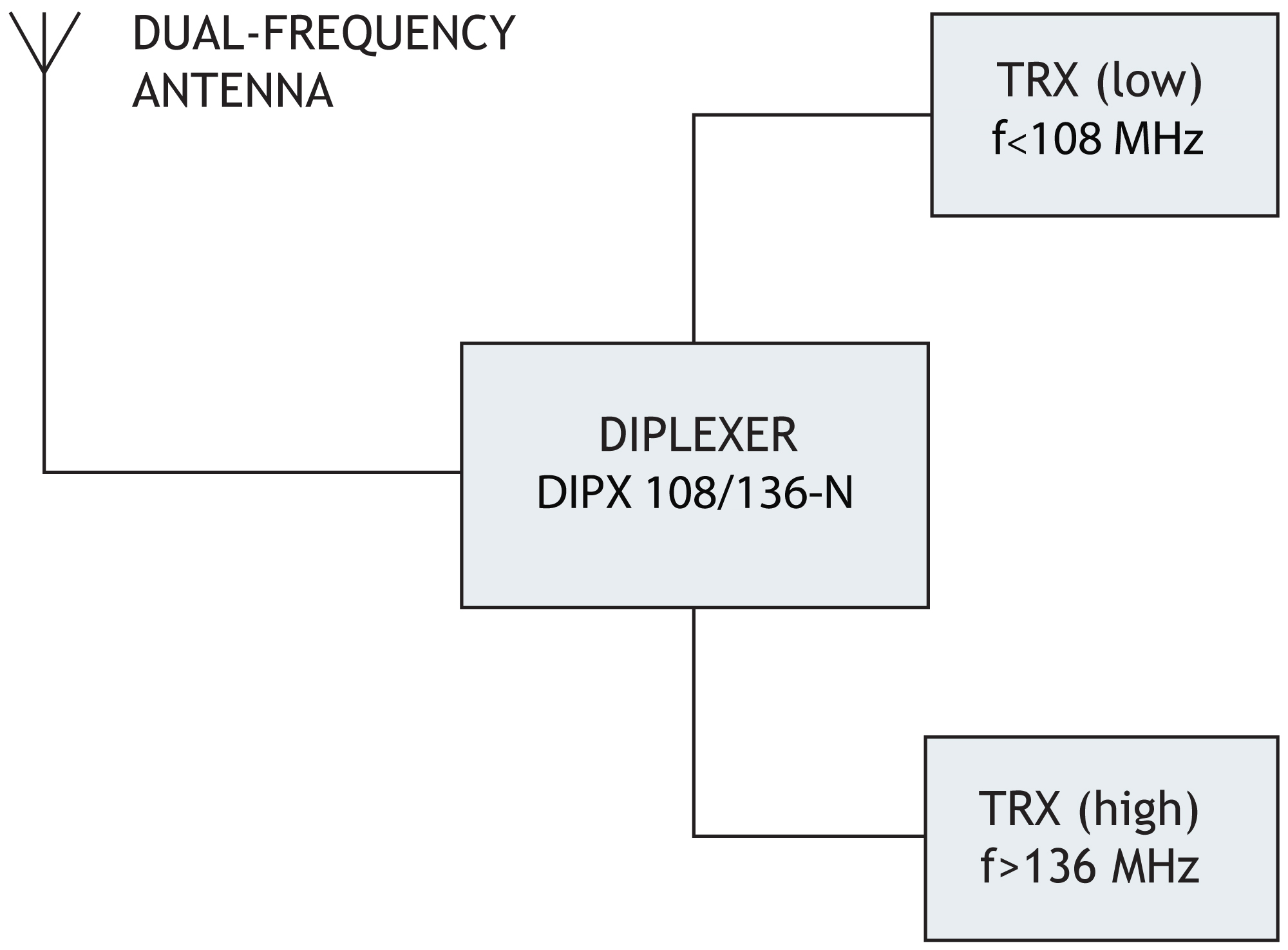

The DIPX 108/136 makes it possible to use only one antenna for the operation of two transceivers (one in each range). See the figure below. The antenna must be a dual-frequency antenna, that is, it must be resonant on the actual frequencies in the two bands.

The transceivers may be used independently and will have no degrading influence on each other. Typically, the diplexer is installed next to the transceivers and only one cable is used between the diplexer and the antenna. The diplexer is suitable both for base station and mobile use.

The main tasks of the diplexer are to protect the individual receiver input from being destroyed by the transceiver in the contrary band and to ensure a low-loss path between the transceiver and the antenna which is not loaded by the other branch.

The diplexer can be operated together with any set of transceivers operating
within the 0 - 108 MHz and 136 - 1300 MHz frequency bands.
