- Triplexer for combining or splitting the three ranges 0 – 88 MHz, 136 – 174 MHz and 216 – 960 MHz.
- Chebychev design ensures very high isolation across the whole pass ranges.
- High power handling capability.
- Low insertion loss.
- Low weight.
- Wide temperature range.
- Milled aluminium box ensures extraordinarily high mechanical strength.
- PRO-TRI 88/136-174/216-.. is coated with black vinyl to prevent corrosion.
- N-connectors on all ports (standard).
- Also available with SMA-, TNC- or BNC- connector types.
TriplexerPRO-TRI 88/136-174/216-...

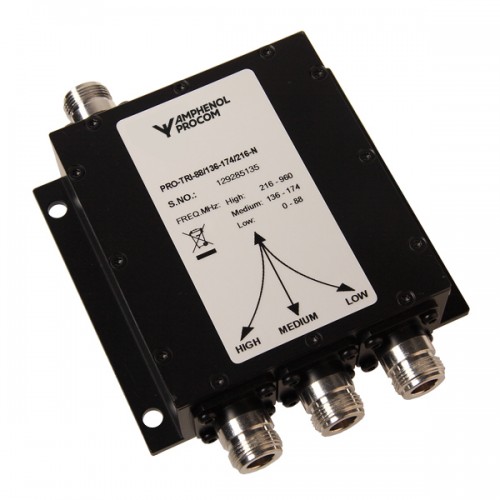

50 W Triplexer for the 0 - 88 MHz, 136 - 174 MHz and 216 - 960 MHz ranges
Beschreibung
Spezifikationen
| Elektrisch DE | ||
|---|---|---|
|
||
|
||
|
||
|
||
|
||
|
||
| Mechanisch DE | ||
|---|---|---|
|
||
|
||
|
||
|
||
| Umwelt | ||
|---|---|---|
|
||
|
||
Bestellbezeichnungen
| Modell | Produkt Nr. | ||
|---|---|---|---|
| PRO-TRI 88/136-174/216-N | 200002546 | Verfügbarkeit | |
| PRO-TRI 88/136-174/216-SMA | 200002554 | Verfügbarkeit | |
| PRO-TRI 88/136-174/216-TNC | 200002555 | Verfügbarkeit | |
| PRO-TRI 88/136-174/216-BNC | 200002556 | Verfügbarkeit |
Montagehinweise

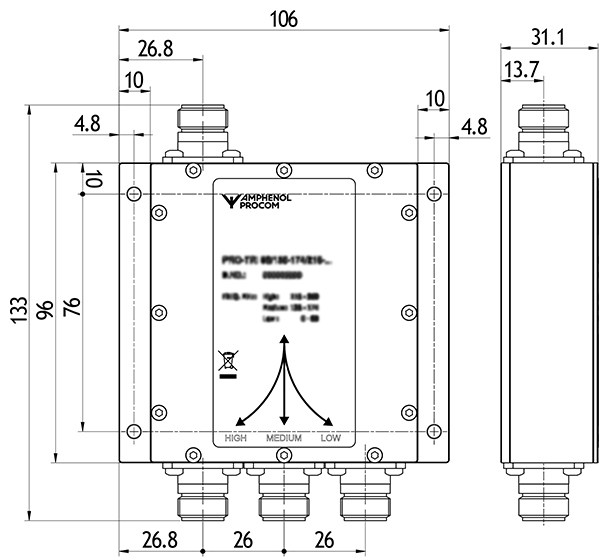

Alle Abmessungen in mm.
Typischer Kurvenverlauf

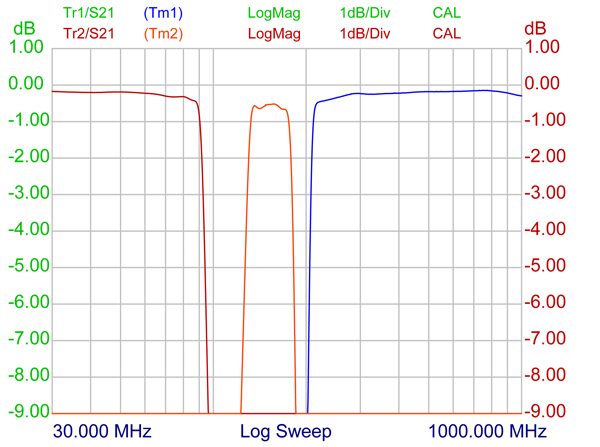

INSERTION LOSS [dB]

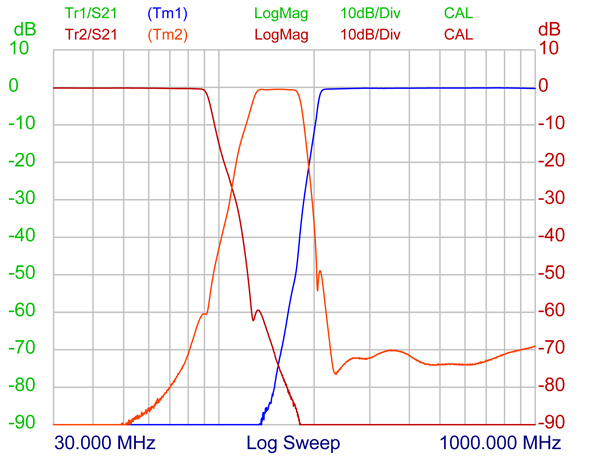

PORT ATTENUATION [dB]
Installation

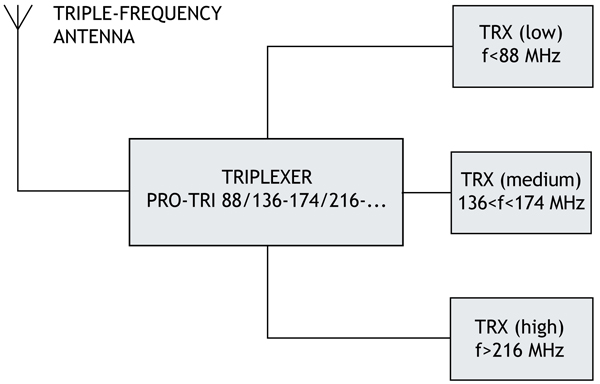

The PRO-TRI 88/136-174/216-... makes it possible to use only one antenna for the operation of three transceivers (one in each range). See the figure below. The antenna must be a triple-frequency antenna, i.e. it must be resonant on the actual frequencies in the three bands.
The transceivers may be used independently and will have no degrading influence on each other. Typically, the triplexer is installed next to the transceivers and only one cable is used between the triplexer and the antenna. The triplexer is suitable both for base station and mobile use.
The main tasks of the triplexer are to protect the individual receiver input from being destroyed by the transceiver in the contrary bands and to ensure a low-loss path between the transceiver and the antenna which is not loaded by the other branches.
The triplexer can be operated together with any set of transceivers operating within the 0 - 88 MHz, 136 - 174 MHz and 216 - 960 MHz frequency bands.
Hinweis
* Temperature on box surface. Adequate cooling to keep max. temperature below +60 °C must be provided.
