- The DPBP 2/66-150 LL/1-...-1/LPF is a 2 x 6 resonator high quality Duplex Band Pass filter designed to combine special custom required Tx and Rx bands to one common antenna.
- The high performance filter design secures a low Insertion Loss and an improved isolation between the specified Tx and the Rx band.
- The DPBP 2/66-150 LL/1-...-1/LPF can accomodate a continious power of max. 150 W.
- The DPBP filter includes a low pass filter for highly attenuating the unwanted 3th. & 5th. harmonics occuring from radio system and the DPBP itselves.
- The DPBP 2/66-150 LL/1-...-1/LPF filter can be fitted into a 19” mounting tray, 3 HU in height, 600 mm in depth.
- For other frequencies in the VHF band please contact Amphenol Procom for availability
DuplexfilterDPBP 2/66-150
High power VHF Duplex Band-Pass Filter incl. Low Pass Filter, for PMR/DMR and Telemetry networks
Beschreibung
Spezifikationen
| Elektrisch DE | ||
|---|---|---|
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
| Mechanisch DE | ||
|---|---|---|
|
||
|
||
|
||
| Umwelt | ||
|---|---|---|
|
||
Bestellbezeichnungen
| Modell | Produkt Nr. | Frequenz | ||
|---|---|---|---|---|
| DPBP 2/66-150 LL/1-7.5-1/LPF | 200002895 | Rx: 139.5 - 140.5 MHz / Tx: 148 - 149 MHz | Verfügbarkeit | |
| DPBP 2/66-150 LL/1-10-1/LPF | 200002833 | Rx: 143 - 144 MHz / Tx: 154 - 155 MHz | Verfügbarkeit |
Typical response curves for 7.5 MHz
Typical Out of band curves for 7.5 MHz

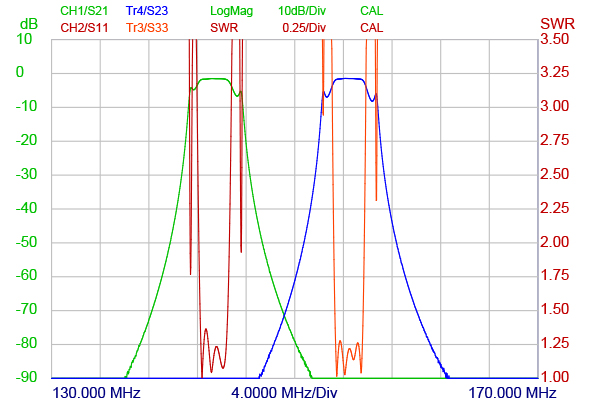

Typical response curves for 10 MHz
Typical Out of band curves for 10 MHz
Mechanical Outline
All dimensions are given in mm [in.]
