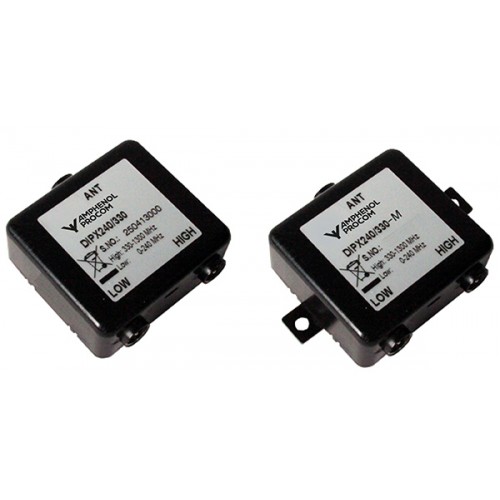

DiplexoresDIPX 240/330-...

Diplexer for the 0 - 240 MHz and 330 - 1300 MHz Ranges

Descripción

Diplexer for combining or splitting the two ranges 0 - 240 MHz and 330 - 1300 MHz.
Excellent wide-band coverage – usable for a lot of applications.
Extremely small dimensions.
FME-connections on all terminals.
Two mounting options available:
- Dual-adhesive pad for quick installation.
- Mounting brackets with ø3.2 mm holes for screw mounting.

Especificaciones

Eléctrico ES

Modelo

DIPX 240/330-...

Frequencia

Low port : 0 - 240 MHz
High port : 330 - 1300 MHz

Potencia Máx. De Entrada

35 W

Pérdida De Inserción

0 - 240 MHz : ≤ 0.8 dB
330 - 1300 MHz : ≤ 0.8 dB

Impedancia

50 Ω

Aislamiento

Low to high port: 40 dB

ROE

< 1.5:1

Mecánico ES

Conexión(s)

Low : FME
High : FME
Antenna: FME

Dimensiones

50 x 21 x 50 mm

Peso	Aprox. 0.062 kg

Ambiental

Rango De Temperatura De Funcionamiento

-30 °C to +70 °C

Protección De Ingreso

IP41

Designaciones de pedido

Modelo	Producto No.	Descripción
DIPX 240/330	200002654	Dual-adhesive pad
DIPX 240/330-M	200002655	Mounting brackets

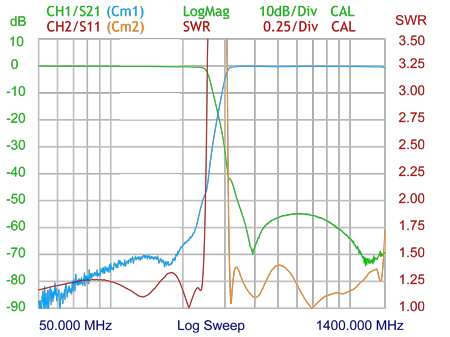

Curvas típicas de respuesta

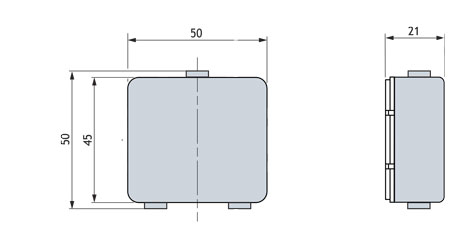

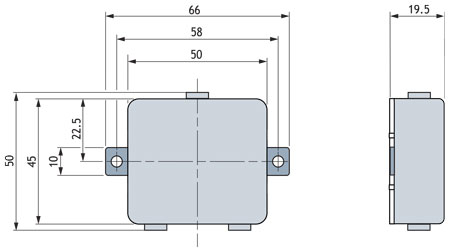

Detalles de Instalación

Todas las dimensiones se dan en mm.

Instalación

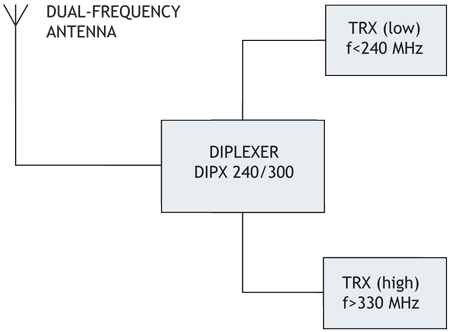

The DIPX 240/330 makes it possible to use only one antenna for the operation of two transceivers (one in each range). See the figure below. The antenna must be a dual-frequency antenna, e.i. it must be resonant on the actual frequencies in the two bands.

The transceivers may be used independently and will have no degrading influence on each other. Typically, the diplexer is installed next to the transceivers and only one cable is used between the diplexer and the antenna. The diplexer is suitable both for base station and mobile use.

The main tasks of the diplexer are to protect the individual receiver input from being destroyed by the transceiver in the contrary band and to ensure a lowloss path between the transceiver and the antenna which is not loaded by the other branch.
The diplexer can be operated together with any set of transceivers operating
within the 0 - 240 MHz and 330 - 1300 MHz frequency bands.

Dual-frequency antennas are available for both mobile and base station applications.
