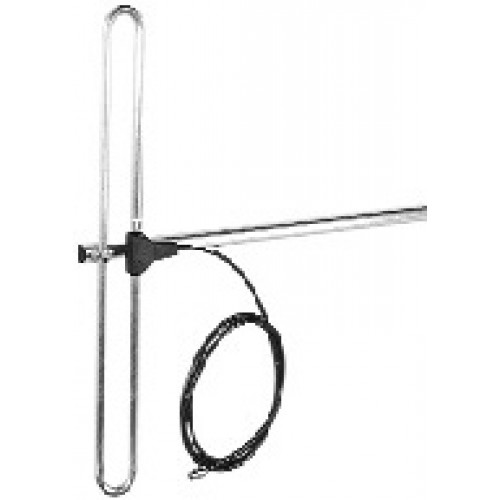

Centre fed folded dipole 145 - 175 MHz

Descripción

  • A VHF Center Fed Dipole antenna for PMR/Trunked Radio, Broadcast and VHF Aircraft Band applications.
  • Multiple dipoles can be mounted on a tower and connected with a phasing harness to form a high gain, stacked array.
  • Produced to the highest quality standards, these robust antenna designs will ensure reliable operation in harsh environmental conditions.
  • Former Skymasts brand product.

Especificaciones

Eléctrico ES
Modelo S.1-160
Frequencia 145 - 175 MHz
Potencia Máx. De Entrada 150 W
Polarización Lineal (Vertical y Horizontal)
Ancho del Haz a media potencia, Plano E 80 °
Ancho del Haz a media potencia, Plano H Omni - will depend on mounting distance from mast.
Impedancia 50 Ω
Ganancia 0 dBd (omni - will depend on mounting distance from mast)
ROE < 1.5:1
Protección Antiestática Todas las piezas metálicas con conexión a tierra DC (el conector muestra un cortocircuito DC)
Mecánico ES
Conexión(s) N(f) en 3m RG213 / U cable
Materiales Boom, 32 mm dia. aluminium
elements, 12.7 mm dia. aluminium
balun, fully moulded enclosure
Dimensiones 1330 x 830 x 95 mm
Carga De Viento 111 N (160 km/h)
Peso Aprox. 2.8 kg
Soporte De Montaje 3202078/68 + 3201079/00
(Ordered Separately)
Encapsulante Protector Resina de poliuretano U-600
Soporte De Montaje Alternativo 0900912/00, 0302032/68, or 0300064/00 + U-Bolts to match mounting pipe diameter
(Ordered Separately)
Ambiental
Protección De Ingreso IP68

Diagrama y Montaje

PATRONES DE RADIACION

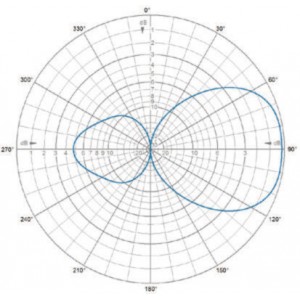

E-Plane | 160 MHz E-Plane | 160 MHz

PATRONES DE RADIACION

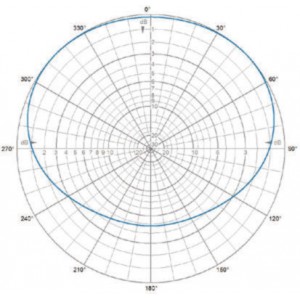

H-Plane | 160 MHz H-Plane | 160 MHz

Designaciones de pedido

Modelo Producto No. Frecuencia
Centre fed folded dipole S.1-160 145 - 175 MHz
Accessories
Galvanised steel crossover bracket 32/50 mm 0900912/00
Pressed steel cross clamp 2" x 1-1/4" (JBL73) 0302032/68
Cast aluminium cross clamp, circular 0300064/00
M8 x 50 mm (2") U-Bolts (1 Pair) 4884036/00
M8 x 75 mm (3") U-Bolts (1 Pair) 4884076/00
Fixed norstel / coupler clamp (cross clamp) 3202078/68
Increasing sleeve 3201079/00
