Combiners compactosPRO-COM450-4SI

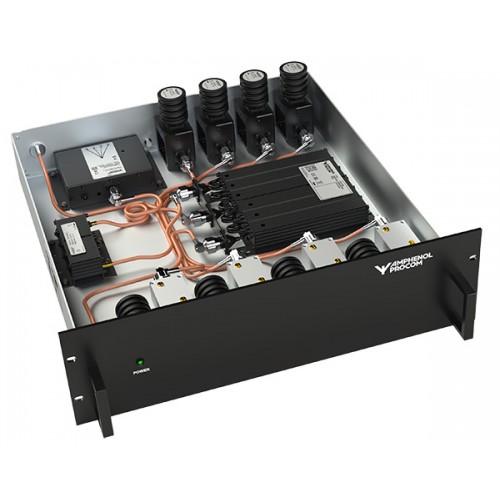

Compact 4-Channel UHF/LTE 450 MHz Tx/Rx Combiner

Descripción

  • An integrated single tray combining solution housing a 4-channel hybrid Tx hybrid combiner, duplex filter, active Rx multicouplers and preselector.
  • Built-in power supply suitable for 12 VDC
  • Minimal rack space required - only 3 HU in a 19" rack.
  • Compatible with digital 6.25 kHz channel spacing.
  • Single Tx isolators fitted as standard (With Dual Isolators, please ask for availability).
  • 4 Tx & 4 Rx ports as standard.
  • Please specify Tx/Rx frequencies when ordering.
  • As standard the combiner will come with black painted front plate. If requested,
    please ask for a front plate with alu-look.

Especificaciones

Eléctrico ES
Modelo PRO-COM450-4SI
Frequencia L : 380 - 400 MHz
H : 406 - 470 MHz
Potencia Máx. De Entrada 50 W
Espaciamiento Tx-Rx ≥ 5 MHz
Espaciado Tx-Tx ≤ 2 MHz
Aislamiento Tx - Rx Tx - Tx espacio < 0.5 MHz : > 85 dB
Tx - Tx espacio > 0.5 MHz : > 65 dB
Pérdida De Inserción Tx Path 8.4 dB
Impedancia 50 Ω
Ant-Tx Aislamiento > 40 dB @ 25 °C
Aislamiento Rx-Rx > 20 dB
Aislamiento Tx-Tx > 70 dB @ 25 °C
ROE < 1.5:1
Consumo Actual 500 mA @ 12 V DC
LNA Noise Figure < 3.5 dB
Ganancia Rx 1 dB ±1 dB (conjunto de fábrica)
Número de canales 4
Mecánico ES
Conexión(s) N(f)
Dimensiones 19" x 3 HU
(482.6 x 132.55 mm)
- ver el esquema mecánico para la profundidad de la bandeja
Peso Aprox. 9.2 kg
Ambiental
Rango de temperatura de almacenamiento -30 °C to +60 °C

Modelos Disponibles

Contact for system-specific product No.

Use the guide below to make the name of the PRO-COM450-4SI. Remember to buy the Power Adaptor separately if needed.

ModelDuplex Filter Freq. BandPre-selector Rx Freq. BandDuplex filter Bandwidth (BW) and Tx/Rx SpacingMax. Input Power
PRO-COM450-4SI Low: 340 - 400 MHz = L
High: 406 - 470 MHz = H		 380 - 440 MHz = L
430 - 470 MHz = H		 2-5/7-2 *
2-7/9-2
2-9/13-2
2-13/16-2
2-15/27-2


* Max. Low BW: 2 MHz- Tx/Rx spacing: 5 to 7 MHz -
   Max. High BW: 2 MHz = 2-5/7-2

 50 W per channel
Naming Example
PRO-COM450-4SI H H /2-5/7-2 /50W


Naming Example: PRO-COM450-4SI HH/2-5/7-2/50W

Accesorios

 ModeloNº de Producto
Fuente de alimentación AC/DC 12V/1A EU/UK/US 240000060

Fuente de alimentación AC/DC 12V/1A EU/UK/US

Power Supply ACDC 12V1A EUUKUS

Esquema mecánico

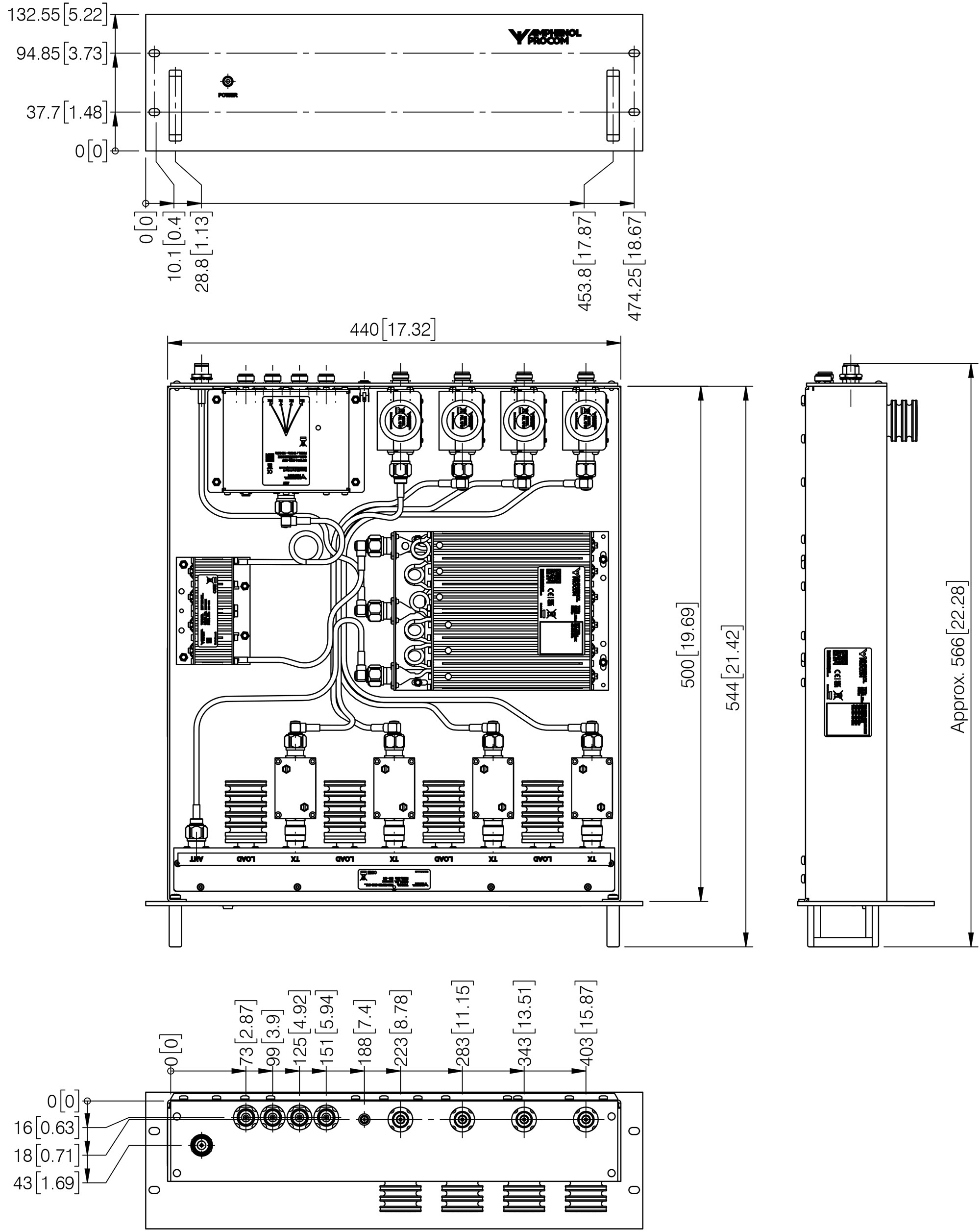

PRO COM450 4 HH 2 9 13 2 50W Mechanical outline

Todas las dimensiones se dan en mm [in.]
