G-CXL 225-450C

Antenas omnidireccionalG-CXL 225-450C

Unity Gain, Broad-Banded Base Station Antenna for 225 - 450 MHz. Designed for defense units.

Descripción

  • G-CXL 225-450C is a 0 dBd gain, omnidirectional base station antenna.
  • The antenna is extremely broad-banded and covers the complete band 225 - 450 MHz.
  • G-CXL 225-450C is designed for fixation on supporting tubes with outer diameter between 27 mm and 65 mm.
  • The construction of the mount makes it possible to lead the cable either inside or along the outside of the mast tube.
  • A glass fibre tube completely encloses the carefully designed radiating element to ensure long dependable service in all climates.
  • Atmospherical discharges are immediately led to ground as all metal parts are DC-grounded (consequently, the antenna shows a DC-short across the coaxial cable).
  • This antenna is used where reliability is of utmost importance. A long lifetime has been taken into consideration when designing this antenna – it is sturdy and strong.

Especificaciones

Eléctrico ES
Modelo G-CXL 225-450C
Frequencia Cubierta: 225 - 450 MHz
Tipo De Antena Coaxial dipole, broad-banded
Potencia Máx. De Entrada 200 W
Polarización Vertical
Ancho del Haz a media potencia, Plano E 80 °
Ancho del Haz a media potencia, Plano H Omnidireccional
Impedancia 50 Ω
Ganancia 0 dBd (2.2 dBi) (ver curvas)
ROE ≤ 2.5, typ. ≤ 2.0
Ancho De Banda 225 MHz
Protección Antiestática Todas las piezas metálicas con conexión a tierra DC (el conector muestra un cortocircuito DC)
Código De HCM HCM000ND00, 040DE00
Mecánico ES
Conexión(s) N(f)
Materiales Radomo: Fibra de vidrio revestida de poliuretano
Soporte de montaje: Aluminio resistente al agua de mar revestido de epoxi, Negro
Anclajes: Acero inoxidable
Color Verde (RAL 6014)
Area De Viento 0.056 sq. m
Carga De Viento 85 N @ 175 km/h
Altura Aprox. 1200 mm
Peso Aprox. 3.0 kg
Montaje En mástil de 27 - 65 mm de diámetro
Ambiental
Rango De Temperatura De Funcionamiento -30 °C to +70 °C
Velocidad De Viento De Supervivencia 200 km/h
Protección De Ingreso IP56

Diagrama y Montaje

TYPICAL GAIN AND SWR CURVES

TYPICAL RADIATION PATTERN (E-PLANE)

TYPICAL RADIATION PATTERN (H-PLANE)

MULTI-PURPOSE MOUNTING BRACKET

Designaciones de pedido

Modelo Producto No.
G-CXL 225-450C 100000268

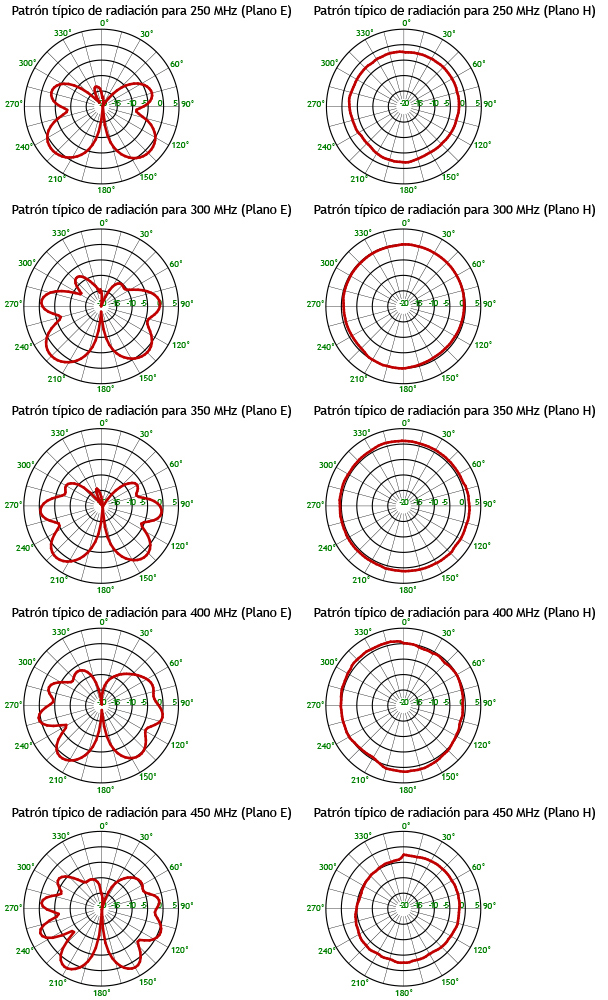

Patrón típico de radiación

CXL 225 450C G CXL 225 450C E H Plane Collect ES
