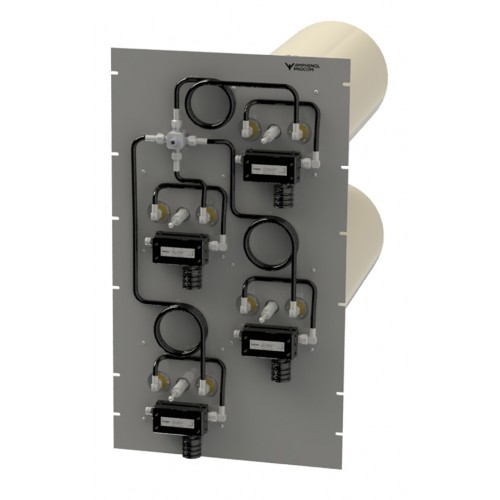

PRO-CAV150-4

Combinadores de cavidadesPRO-CAV150-4

4-Channel Cavity Combiner

Descripción

  • The PRO-CAV series of cavity combiners has been designed to help identify the optimum solution for combining several transmitters into one antenna.
  • All cavity combiners are suitable for 19” rack mounting.
  • All cavities are 250 mm dia. Dual isolators fitted as standard.
  • A range of racks and cabinets are available.
  • Please specify the frequencies for Tx when ordering.

Especificaciones

Eléctrico ES
Modelo PRO-CAV150-4
Frequencia 145 - 175 MHz
Potencia Máx. De Entrada 150 W
Espaciado Tx-Tx > 75 kHz
Pérdida De Inserción 3.2 dB @ Δτx = 150 kHz
Impedancia 50 Ω
Aislamiento Tx-Tx > 75 dB
ROE < 1.5:1
Número de canales 4
Mecánico ES
Conexión(s) N(f)
Dimensiones 19" x 19 HU x 600 mm
(482.6 x 843.75 x 600 mm)
Peso Aprox. 25.6 kg
Ambiental
Rango De Temperatura De Funcionamiento -30 °C to +60 °C Reduced specifications around the limit temperatures
Estabilidad De Frecuencia Aprox. 0.8 ppm / °C
Rango de temperatura de almacenamiento -30 °C to +60 °C

Designaciones de pedido

Modelo Producto No.
PRO-CAV150-4 210001547
