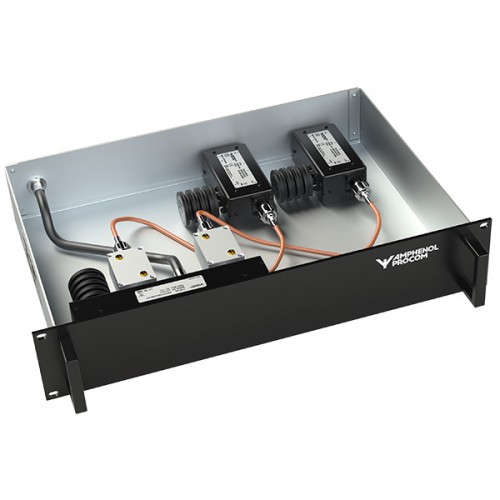

Compact 2-Channel 150 MHz Tx Hybrid Combiner

Descripción


  • The PRO-PHY series of hybrid combiners has been designed to help identify the optimum solution for combining several transmitters (TX's) into one antenna.
  • All hybrid combiners are suitable for 19” rack mounting.
  • Dual isolators fitted as standard.
  • High performance Broadband Hybrid in 2 versions covering the 135-165 MHz
    range or the 145-175 MHz range is fitted as standard.
  • Available in 3 versions: Tx 35 W, 50 W and 100 W per channel (see ordering).
  • Please specify the frequencies for Tx when ordering.
  • As standard the combiner will come with black painted front plate. If requested,
    please ask for a front plate with alu-look.


Especificaciones

Eléctrico ES
Modelo PRO-PHY150-2DI-...
Frequencia 135 - 165 MHz or 145 - 175 MHz
Potencia Máx. De Entrada 35 W / 50 W / 100 W
Espaciado Tx-Tx ≤ 7 MHz
Pérdida De Inserción ≤ 4.7 dB
Impedancia 50 Ω
Aislamiento Tx-Tx > 100 dB @ 25 C, for TX-TX spacing up to 1 MHz
> 90 dB @ 25 C, for TX-TX spacing up to 3 MHz
> 80 dB @ 25 C, for TX-TX spacing up to 7 MHz
ROE < 1.5:1
Número de canales 2
Mecánico ES
Conexión(s) N(f)
Dimensiones 19" x 2 HU x 300 mm
(482.6 x 88.1 x 300 mm)
Peso Approx. 4.8 kg / 8.8 lb. for 35 W input power
Approx. 5.1 kg / 9.5 lb. for 50 W input power
Approx. 6.8 kg / 13.3 lb. for 100 W input power
Ambiental
Rango de temperatura de almacenamiento -30 °C to +60 °C

Designaciones de pedido

Modelo Producto No.
PRO-PHY150-2DI/135-165/35W Contact for availability
PRO-PHY150-2DI/135-165/50W Contact for availability
PRO-PHY150-2DI/135-165/100W Contact for availability
PRO-PHY150-2DI/145-175/35W 220000861
PRO-PHY150-2DI/145-175/50W 220000862
PRO-PHY150-2DI/145-175/100W 220000863

Esquema mecánico

Las dimensiones del esquema se aplican a bandejas de 19" para potencia de entrada de 35 W, 50 W y 100 W

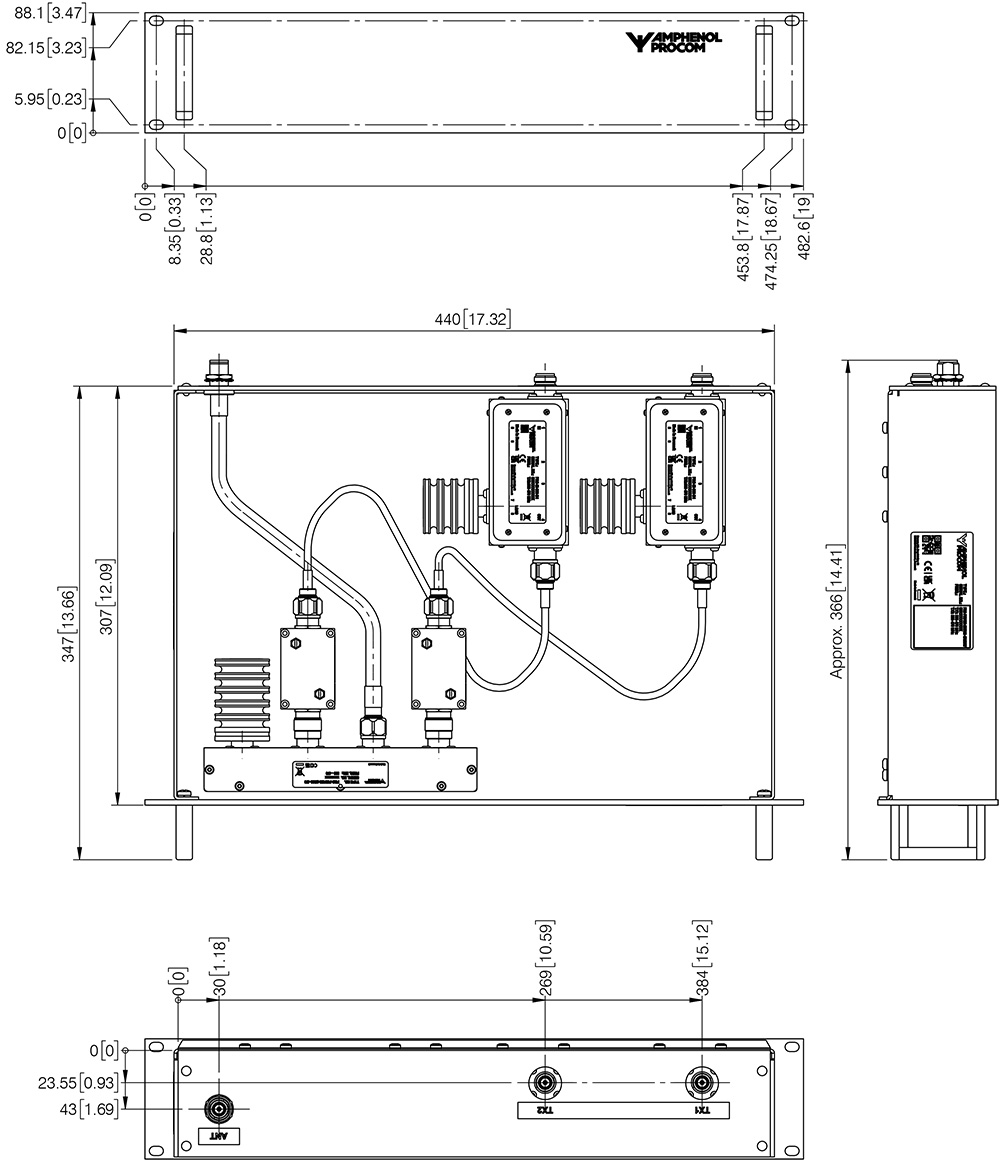

PRO PHY450 2DI 380 470 35W Mechanical outline

Todas las dimensiones se dan en mm [in.]
