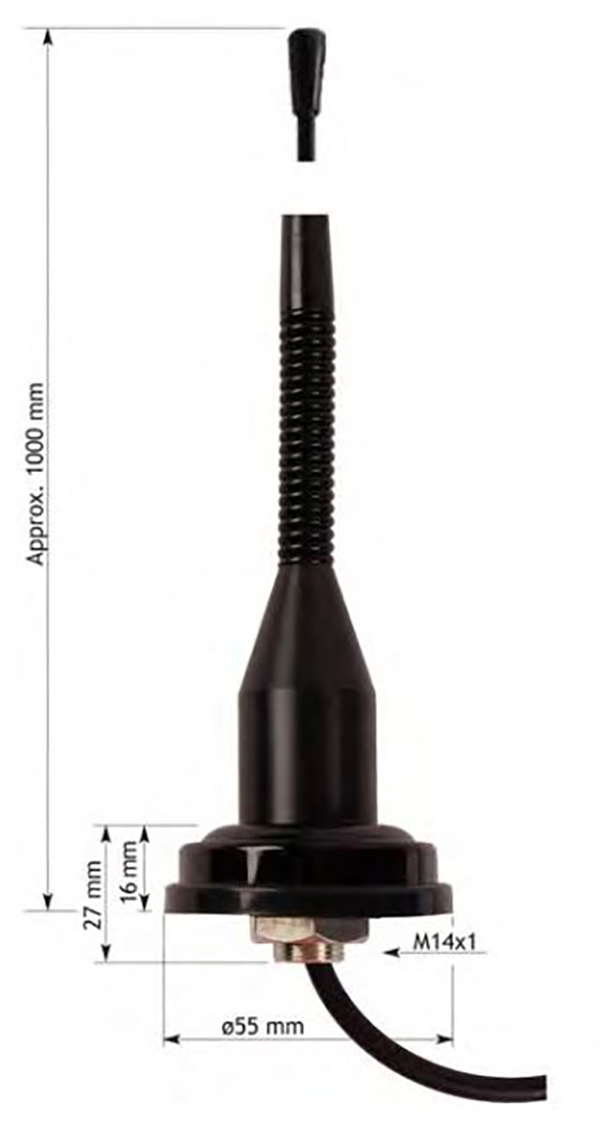

- Flexible ½ λ TETRA-antenna (models within 380 - 430 MHz).
- The end-fed dipole principle makes the antenna independent of
groundplane. - The radiating part of the antenna is placed on top of a glassfibre tube
with shock spring approx. 660 mm above the mounting area. - The large distance to the mounting area results in an almost perfect
radiation, completely independent of the mounting area. - Permanently attached 5 m RG 58 cable with FME(female) connector.
- Wide range of FME-accessories available.
Descripción
Especificaciones
| Eléctrico ES | ||
|---|---|---|
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
| Mecánico ES | |||
|---|---|---|---|
|
|||
|
|||
|
|||
|
|||
|
|||
|
|||
|
|||
|
|||
|
|||
| Ambiental | ||
|---|---|---|
|
||
Designaciones de pedido
| Modelo | Producto No. | Frecuencia | |
|---|---|---|---|
| EFD TETRA-1000/l | 140000610 | 380 - 410 MHz | |
| EFD TETRA-1000/h | 140000580 | 410 - 430 MHz |
FME-System Accessories
| FME-CABLES | |
|---|---|
| TYPE | PRODUCT NO. |
| 1 m FME | 130000437 |
| 2 m FME | 130000447 |
| 3 m FME | 130000457 |
| 4 m FME | 130000466 |
| 5 m FME | 130000474 |
| 6 m FME | 130000483 |
| 4 m FME-white | 110000064 |
| 6 m FME-white | 110000066 |
| 12 m FME-white | 110000068 |
| 18 m FME-white | 110000069 |
| FME-CONNECTORS | |
|---|---|
| TYPE | PRODUCT NO. |
| FME-FME | 130000583 |
| FME-P (Prolongation) |
130000565 |
| FME-N | 130000571 |
| FME-FSMA (Female-SMA) |
130000578 |
| FME-BNC | 130000566 |
| FME-TNC | 130000569 |
| FME-UHF | 130000572 |
| FME-MUHF (Mini-UHF) |
130000573 |
| FME-EMUHF (Elbow-MUHF) |
130000582 |
| FME-EBNC (Elbow-BNC) |
130000580 |
| FME-ETNC (Elbow-TNC) |
130000581 |
| FME-SMA | 130000577 |
For further information about other types of FME-cables and FME-connectors, please compare the cable and connector data sheets under accessories.
Mounting
The gasket should be entirely supported by the mounting plane.
Do not use sealer on rubber gasket or other places.
Typical VSWR curve
