- El BPF 70/33-TETRA-N-... 6 son filtros de pasa-banda de resonador diseñado para la banda TETRA.
- El duplexor utiliza cavidades de ¼ λ de onda de tamaño reducido ubicadas en una resistente carcasa de aluminio.
- Disponibilidad de cajones de 19".
- Aislamiento de CC incorporado en todas las puertas.

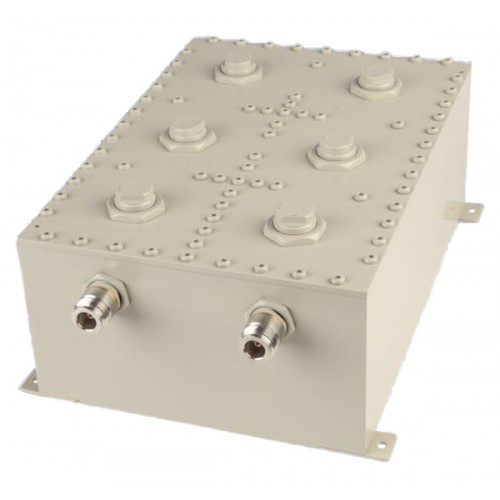

Filtros de paso de bandaBPF 70/33-TETRA-N
Filtro pasa-banda de 6 resonodores para la banda TETRA
Descripción
Especificaciones
| Eléctrico ES | ||
|---|---|---|
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
| Mecánico ES | ||
|---|---|---|
|
||
|
||
|
||
| Ambiental | ||
|---|---|---|
|
||
Designaciones de pedido
| Modelo | Producto No. | Frecuencia | |
|---|---|---|---|
| BPF 70/33-TETRA-N(f)-1 | 200001953 | 380 - 385 MHz | |
| BPF 70/33-TETRA-N(f)-2 | 200001954 | 385 - 390 MHz | |
| BPF 70/33-TETRA-N(f)-3 | 200001955 | 390 - 395 MHz | |
| BPF 70/33-TETRA-N(f)-4 | 200001956 | 395 - 400 MHz | |
| BPF 70/33-TETRA-N(f)-5 | 200001957 | 410 - 415 MHz | |
| BPF 70/33-TETRA-N(f)-6 | 200001958 | 415 - 420 MHz | |
| BPF 70/33-TETRA-N(f)-7 | 200001959 | 420 - 425 MHz | |
| BPF 70/33-TETRA-N(f)-8 | 200001960 | 425 - 430 MHz | |
| BPF 70/33-TETRA-N(f)-9 | 200001961 | 450 - 455 MHz | |
| BPF 70/33-TETRA-N(f)-10 | 200001962 | 455 - 460 MHz | |
| BPF 70/33-TETRA-N(f)-11 | 200001963 | 460 - 465 MHz | |
| BPF 70/33-TETRA-N(f)-12 | 200001964 | 465 - 470 MHz |
