- Esta serie incluye atenuadores de 3 dB, 6 dB, 10 dB, 20 dB y 30 dB.
- Estos atenuadores tienen una ROE muy baja y una atenuación uniforme. Están especialmente indicados para utilizarse con:
- Coaxial Transmission Lines
- Monitores de potencia
- Vatímetros
- Esta serie incluye atenuadores de 3 dB, 6 dB, 10 dB, 20 dB y 30 dB.
- Estos atenuadores tienen una ROE muy baja y una atenuación
uniforme. Están especialmente indicados para utilizarse con:- Coaxial Transmission Lines
- Monitores de potencia
- Vatímetros
- Acabado en negro anodizado.
Descripción
Especificaciones
| Eléctrico ES | ||
|---|---|---|
|
||
|
||
|
||
|
||
|
||
| Mecánico ES | ||
|---|---|---|
|
||
|
||
|
||
| Ambiental | ||
|---|---|---|
|
||
Designaciones de pedido
| Modelo | Producto No. | |
|---|---|---|
| PRO-ATT 3 dB-100-3-N(f) | 200001731 | |
| PRO-ATT 6 dB-100-3-N(f) | 200001757 | |
| PRO-ATT 10 dB-100-3-N(f) | 200001758 | |
| PRO-ATT 20 dB-100-3-N(f) | 200001743 | |
| PRO-ATT 30 dB-100-3-N(f) | 200001742 | |
| PRO-ATT 3 dB-100-3-7/16(f) | 200002509 | |
| PRO-ATT 6 dB-100-3-7/16(f) | 200002538 | |
| PRO-ATT 10 dB-100-3-7/16(f) | 200002510 | |
| PRO-ATT 20 dB-100-3-7/16(f) | 200002539 | |
| PRO-ATT 30 dB-100-3-7/16(f) | 200002540 |
Datos adicionales
| MODELO | ATENUACIÓN | DESVIACIÓN ATT. | |
|---|---|---|---|
| DC - 2.0 GHz | 2.0 - 3.0 GHz | ||
| PRO-ATT 3 dB-100-3 | 3 dB | ± 0.5 dB | ± 0.75 dB |
| PRO-ATT 6 dB-100-3 | 6 dB | ± 0.5 dB | ± 1.0 dB |
| PRO-ATT 10 dB-100-3 | 10 dB | ± 0.75 dB | ± 1.5 dB |
| PRO-ATT 20 dB-100-3 | 20 dB | ± 0.75 dB | ± 1.5 dB |
| PRO-ATT 30 dB-100-3 | 30 dB | ± 0.75 dB | ± 1.5 dB |
Temperatura Ambiente

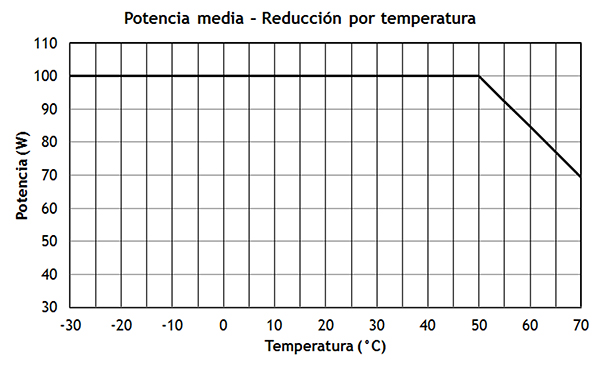

3 dB y 6 dB

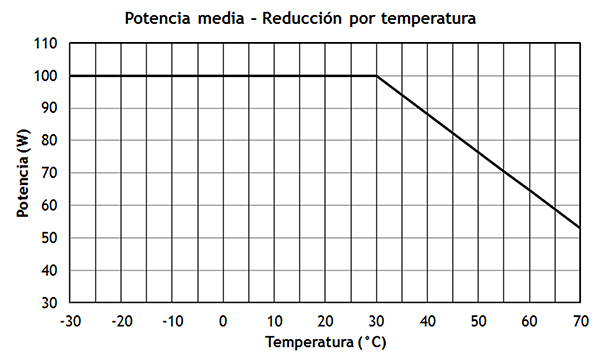

10 dB, 20 dB y 30 dB
Detalles de montaje
Todas las dimensiones se dan en mm [in.]
