- The PRO-ISO-PHY-TETRA-S-ELW combiner provides the possibillity of connecting two TMO and one DMO TETRA radios into one common antenna.
- All PRO-ISO-PHY units are designed for single carrier signal per port and thus it is not recommended to add a multiple carrier signal on the input ports, as this could potentially create unwanted intermodulation products transmitted on the antenna port and reflected on the input ports.
- ETSI and DIN-SPEC 14507-2 compliant connection of two digital radios.
- The PRO-ISO-PHY-TETRA-S-ELW supports Direct Mode Operation (DMO), giving one TETRA mobile radio the ability to communicate in direct mode.
- The PRO-ISO-PHY-TETRA-S-ELW is the successor to the PRO-ISO-PHY-TETRA-ELW.
- The PRO-ISO-PHY-TETRA-S-ELW has improved isolation between the ports - more than 60 dB - and lower insertion loss.
- The use of high-quality system components such as highly selective helical duplex filters and high-performance isolators provides high isolation and secure communication.

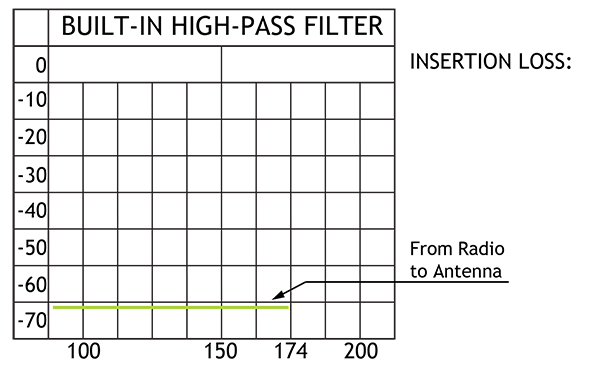

- Built-in high-pass filter, for attenuating interference from 150 - 174 MHz and 74 - 87.5 MHz bands.
- The smallest and most compact design on the market.
- Suitable for both stationary and mobile use.

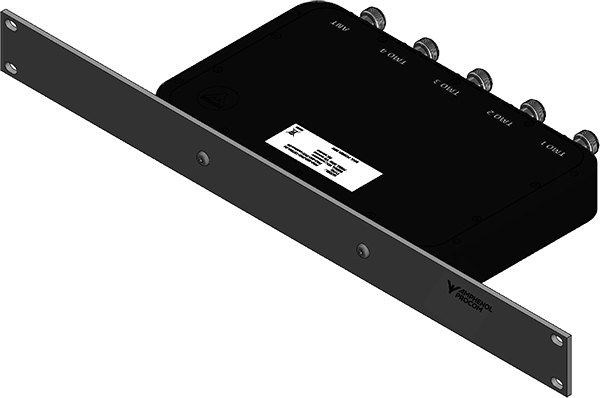

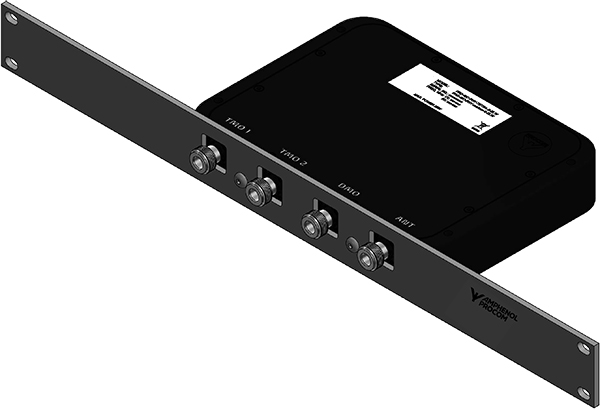

- Also available in tray for 19" rack mounting.
- Vibration and shock tested in accordance with EN-60068**.
Random test: EN 60068-2-64, test specification: EN 300 019-2-5 V3.0.0.
Shock test: EN 60068-2-27, test specification: EN 300 019-2-5 V3.0.0.
Bump test: EN 60068-2-29, test specification: EN 300 019-2-5 V3.0.0.
