DPF 2/44

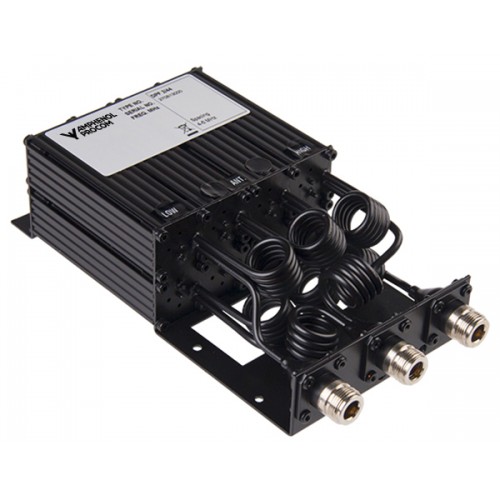

Filtros dúplexDPF 2/44

8-Cavity Duplexer for the 160 MHz Band

Descripción

  • The DPF 2/44… is a 8-cavity duplex filter for duplex radio transceivers.
  • This duplexer is delivered in a low band version type DPF 2/44 L, tunable within 138 - 156 MHz and a high band version type DPF 2/44 H, tunable within 152 - 175 MHz. These models are again delivered in 3 submodels, each dedicated to work with a certain duplex spacing. See  Ordering information under the "Specifications" tab below.
  • The DPF 2/44… models are primarily intended for equipment, where the Tx and Rx operate on several channels, (multi-channel turned) i.e. within a certain port bandwidth.
  • The filter has very small physical dimensions owing to the use of high-Q, temperature compensated helical resonators.
  • The housing is made of extruded aluminium, the chassis of passivated steel, and teflon insulation has been applied in the rigid coaxial cables and in the connectors.
  • The filter is coated with black vinyl to prevent corrosion.

Especificaciones

Eléctrico ES
Modelo DPF 2/44...
Frequencia DPF 2/44 L : 138 - 156 MHz
DPF 2/44 H : 152 - 175 MHz
Potencia Máx. De Entrada 50 W
Espec. especiales info Multi-channel tuned,
BW = 1.5 MHz:		 Multi-channel tuned,
BW = 5 MHz:
Pérdida De Inserción Tx-Ant Y Ant-Rx < 1.4 dB (tip. 1.2 dB) < 1.4 dB (tip. 1.2 dB)
Espaciamiento Tx-Rx 4 - 10 MHz (adjustable)
Supresión Tx Noise En Rx Frequency > 90 dB > 65 dB
Aislamiento Rx En Frequency Tx > 90 dB > 65 dB
Impedancia 50 Ω
ROE < 1.5:1
Mecánico ES
Conexión(s) N(f)
(BNC(f), TNC(f), UHF(f) o SMA(f) bajo pedifo)
Dimensiones 196 (excl. conn.) x 104 x 56 mm
Peso Aprox. 1.1 kg
Ambiental
Rango De Temperatura De Funcionamiento -30 °C to +60 °C
Estabilidad De Frecuencia Aprox. 5 ppm / °C

Diagramas y Montaje

TYPICAL RESPONSE CURVES @ 4 MHz DUPLEX SPACING & 1,5 BW

Designaciones de pedido

Modelo Producto No. Descripción Frecuencia
DPF 2/44 L-4/6-N(f) 200002379 SPACING: 4 - 6 MHz 138 - 156 MHz
DPF 2/44 L-6/8-N(f) 200002380 SPACING: 6 - 8 MHz 138 - 156 MHz
DPF 2/44 L-8/10-N(f) 200002381 SPACING: 8 - 10 MHz 138 - 156 MHz
DPF 2/44 H-4/6-N(f) 200002382 SPACING: 4 - 6 MHz 152 - 175 MHz
DPF 2/44 H-6/8-N(f) 200002383 SPACING: 6 - 8 MHz 152 - 175 MHz
DPF 2/44 H-8/10-N(f) 200002384 SPACING: 8 - 10 MHz 152 - 175 MHz

Ordering Information

When ordering, please use the table above to select the appropriate ordering designation for the desired filter type. If duplex Tx and Rx frequencies are stated when ordering, the duplexers are delivered factory adjusted. If Tx and Rx frequencies are not stated, the filters are delivered non-adjusted.

Special configurations of this filter type may be quoted on request. For instance, the filter can be delivered with other connector types or with flying leads (RG 316 coaxial cable) terminated with connectors or for soldering-connection.

Curva típicas de respuesta

DPF 2 44 curves

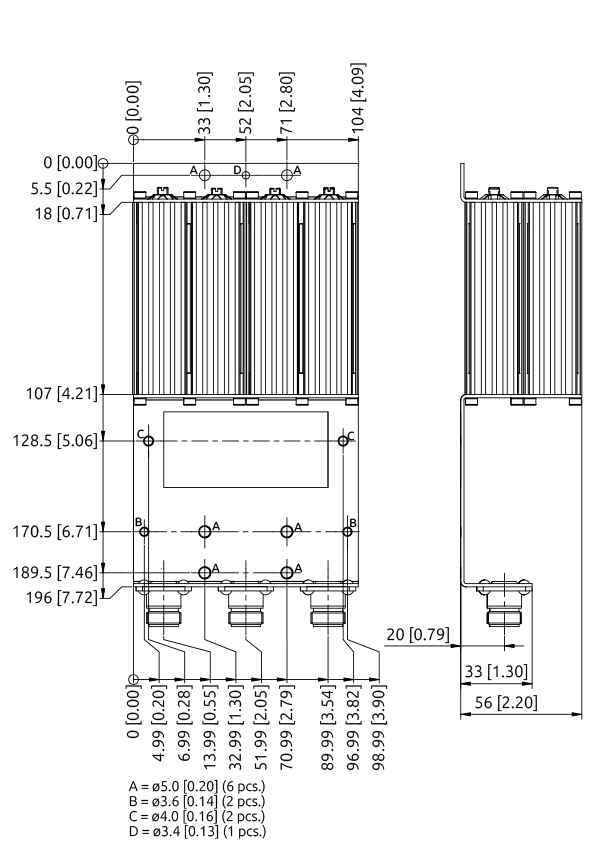

Detalles de montaje

DPF 2!44 Holeplacing

Todas las dimensiones se dan en mm [in.]
