- The ProNexus Plus is the world’s first 8x8 MIMO mobile antenna covering up to 7.2 GHz. A next-generation 8x8 MIMO antenna for fixed and mobile applications, masterfully engineered for 5G and Gigabit Class LTE routers. This cutting-edge 15-in-1 antenna redefines the standards for speed and connectivity within the smallest footprint, enabling maximization of spectral efficiency and minimizing installation costs by reducing the need for additional antennas.
- The worlds first 15-in-1 - No diplexer needed.
- In-built 8x8 MIMO LTE antenna (617 - 960 MHz and 1710 - 7200 MHz) With 6x6 MIMO WiFi 6E (2.4/4.9-7.2 GHz), GNSS antenna for GPS L1, Glonass, Beidou and Galileo.
- The ProNexus Plus provides antennas for multiple technologies and multiband routers.
- The ProNexus Plus covers 4G, GNSS inc. 5G cellular bands, WIFI 2.4/5.8 and 7.2 GHz.
- Full hemispherical coverage for the GNSS antennas.
- Right-Hand Circular Polarization.
- Built-in high gain, low noise amplifier.
- 3 - 15 V DC for GNSS supply.
- DC supply via GNSS RF-connector.
- ECE R118.02 approved cable.
- IP69 Ingress protection.
GNSS Combination AntennasProNexus Plus
15-in-1 - 8x8 MIMO LTE and 6x6 MIMO WIFI multi-purpose mobile antenna for GNSS, LTE (617 - 7200 MHz) and WIFI 6E 2.4/4.9-7.2 GHz
Descripción
Especificaciones
| Eléctrico ES | ||
|---|---|---|
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
| Mecánico ES | ||
|---|---|---|
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
| Antena GNSS | ||
|---|---|---|
|
||
|
||
|
||
|
||
| GNSS LNA | ||
|---|---|---|
|
||
|
||
|
||
|
||
|
||
|
||
|
||
| Ambiental | ||
|---|---|---|
|
||
|
||
|
||
Ordering designations
Use the guide below to assign the name of the ProNexus Plus you would like to order.
| Model Name | Cover color | No. of GNSS | No. of LTE | No. of WIFI antennas | Cable length | Connectors on GNSS | Connectors on LTE | Connectors WIFI |
|---|---|---|---|---|---|---|---|---|
| ProNexus Plus | -W (White) -B (Black) |
-G1 | -L8 (8x LTE antennas) | -W4 (4x WIFI antenna) -W6 (6x WIFI antennas) |
Blank (approx. 0.3 m / 1 ft cable length) -P5 (5 m / 16.4 ft cable length) |
/S (SMA-M) /FAKRA (on request) |
-S (SMA-M) -FAKRA (on request) |
/S (SMA-M) /RP-S (Reverse Polarity SMA-M) /FAKRA (on request) |
| Naming Example | ||||||||
| ProNexus Plus | -B | -G1 | -L8 | -W6 | -P5 | /S | -S | /RP-S |
ProNexus Plus-B-G1-L8-W6-P5/S-S/RP-S
Gain Table
| TYPE | FREQUENCY (MHz) | PEAK GAIN (dBi) | AVERAGE GAIN H-PLANE (dBi) | AVERAGE GAIN H-PLANE (dBq) * |
|---|---|---|---|---|
| 4G/5G |
650 |
2.0 |
-1.0 -3.0 -4.0 -2.0 -3.0 |
-1.0 -2.0 -2.0 -1.0 0.0 |
| WIFI |
2400 |
7.0 |
-3.0 |
-2.0 |
* According to TIA-329.2-C

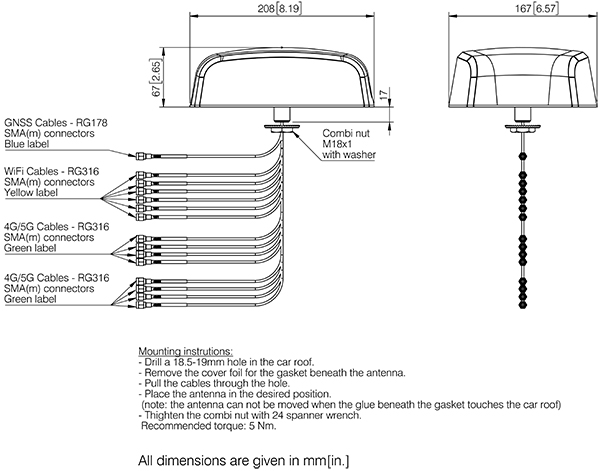

Mechanical outline
Radiation Patterns (Cellular Antennas)
| 650 MHz, side view | 650 MHz, top view | 700 MHz, side view |
 |
 |
 |
| 700 MHz, top view | 800 MHz, side view | 800 MHz, top view |
 |
 |
 |
| 900 MHz, side view | 900 MHz, top view | 1800 MHz, side view |
 |
 |
 |
| 1800 MHz, top view | 2100 MHz, side view | 2100 MHz, top view |
 |
 |
 |
| 2600 MHz, side view | 2600 MHz, top view | |
 |
 |
|
| 3600 MHz, side view | 3600 MHz, top view | |
 |
 |
Radiation Patterns (WiFi Antennas)
| 2400 MHz, side view | 2400 MHz, top view | 5500 MHz, side view |
 |
 |
 |
| 5500 MHz, top view | 7000 MHz, side view | 7000 MHz, top view |
 |
 |
 |
Curves

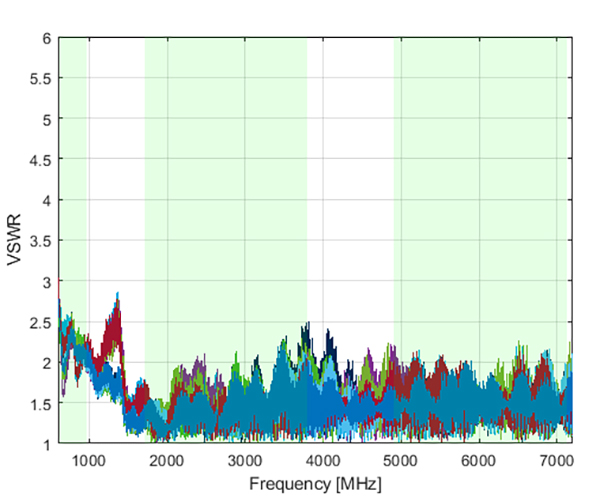

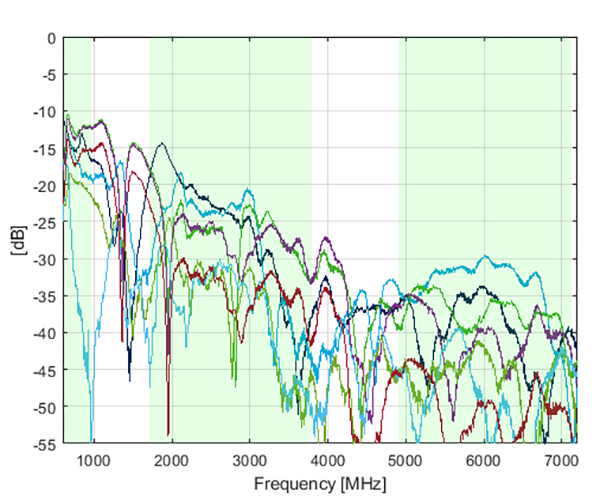

| Typical VSWR curve 4G/5G port 1 to 8 | Typical Inter-port Isolation curve 4G/5G port 1 to the other 7 ports |
|
*Measured with 5 m [196.85 in.] of LMR 195 cable on a 600 x 600 mm [23.6 x 23.6 In.] groundplane. |
*Measured with 5 m [196.85 in.] of LMR 195 cable on a 600 x 600 mm [23.6 x 23.6 In.] groundplane. |
EU and UK Declaration of Conformity
Hereby Amphenol Procom declare that the product type ProNexus Plus is in compliance with EU Directive 2014/53/EU and
the UK Radio Equipment Regulations 2017 (S.I. 2017 No. 1206).
The full text of the Declaration of Conformity is available at:
http://amphenolprocom.com/images/shop/catalog/pdf-for-catalouges/Declaration-of-Conformity-ProNexus.pdf
FAKRA Connectors
 |
Amphenol RF FAKRA connectors are available for this product in standard key code configurations. Please contact us with configuration details for availability. FAKRA Connectors - RF Connectors | Amphenol RF |
Note
* Measured with 5 m [196.85 in.] of LMR 195 cable on a 600 x 600 mm [23.6 x 23.6 in.] groundplane.
