Matrices dipoloS.M4-445-OM

4-stack dipole phased array 420 - 470 MHz omni

Descripción

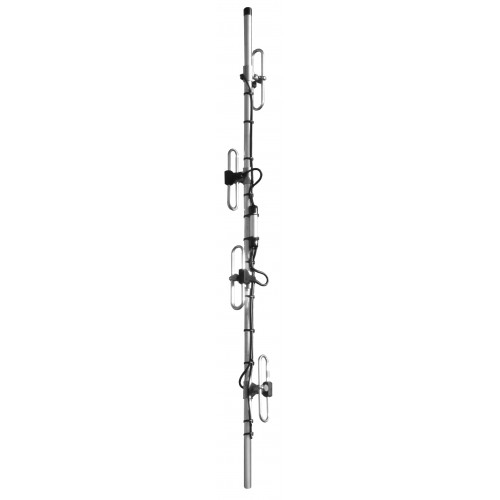

  • The S.M4 is an array of phased centre fed folded dipoles mounted on an aluminium mast for PMR / Trunked radio applications.
  • Each folded dipole balun assembly and associated harness junction is completely encapsulated in poyurethane resin, totally preventing moisture ingress.
  • Former Skymasts brand product.

Especificaciones

Eléctrico ES
Modelo S.M4-445-OM
Frequencia 420 - 470 MHz
Potencia Máx. De Entrada 250 W
Polarización Vertical
Ancho del Haz a media potencia, Plano E 21 °
Ancho del Haz a media potencia, Plano H Omnidireccional
Impedancia 50 Ω
Ganancia 5.7 dBd (7.9 dBi)
ROE < 1.5:1
Protección Antiestática Todas las piezas metálicas con conexión a tierra DC (el conector muestra un cortocircuito DC)
Mecánico ES
Elementos 12.7 x 1.6 mm dia. / 0.5 x 0.06 in.
wall aluminium alloy grade 6063T6
Conexión(s) N(f) en el cable RG213 / U
Material De Pluma 38.1 x 3.2 mm dia. / 1.5 x 0.13 in.
wall aluminium alloy grade 6082T6
Sujetadores Grado de acero inoxidable A2-70
Longitud 2500 mm
Elementos Clamps Diecast Al / Zinc alloy
Carga De Viento 206 N (160 km/h)
Peso Aprox. 5.5 kg
Encapsulante Protector Resina de poliuretano U-600
Ambiental
Protección De Ingreso IP68

Diagrama y Montaje

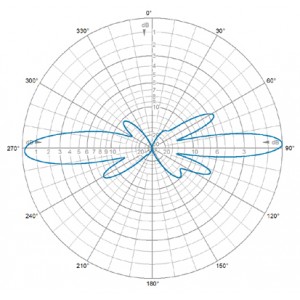

PATRONES DE RADIACION

E-Plane | 445 MHz E-Plane | 445 MHz

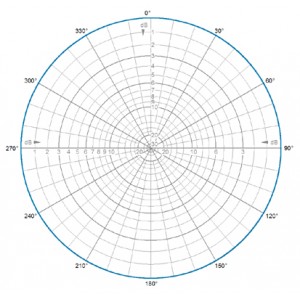

PATRONES DE RADIACION

H-Plane | 445 MHz H-Plane | 445 MHz

Designaciones de pedido

Modelo Producto No. Frecuencia
4-stack dipole phased array 420 - 470 MHz omni S.M4-445-OM 420 - 470 MHz
