Band-Pass Filter for 118 - 137 MHz

Descripción

  • PRO-BPF 118-137-N is a rugged 6-resonator combline band-pass filter for handling high power levels.
  • Allows the whole 118 – 137 MHz band to pass with low loss.
  • No spurious responses below 900 MHz.
  • Can be used as transmit filter to prevent out-of-band and harmonics radiation.
  • Can be used as a preselector to protect a receiver against interferences from transmitters normally being outside the band-pass range.
  • N connectors for strong and reliable coupling to the surroundings.
  • PRO-BPF 118-137-N is lacquered with black vinyl enamel to avoid corrosion.

Especificaciones

Eléctrico ES
Modelo PRO-BPF 118-137-N
Frequencia 118 - 137 MHz
Potencia Máx. De Entrada 200 / 100 W (peak / average)
Pérdida De Inserción ≤ 0.8 dB @ en el margen
≤ 0.6 dB @ frec. central.
Impedancia 50 Ω
Atenuación > 40 dB :
98 - 107 MHz and 147 - 154 MHz
> 60 dB :
< 98 MHz and > 154 MHz
ROE < 1.4:1
Ancho De Banda 19 MHz
Mecánico ES
Conexión(s) N(f) (otros bajo pedido)
Dimensiones 220 x 244 x 42 mm (inclusivo. conectores y tornillos de ajuste)
Peso Aprox. 2.1 kg
Ambiental
Rango De Temperatura De Funcionamiento -30 °C to +60 °C

Diagrama

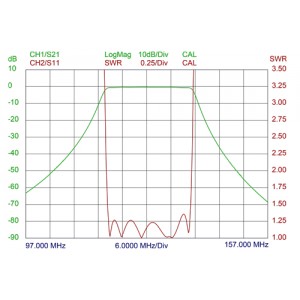

CURVAS TÍPICAS DE RESPUESTA

Designaciones de pedido

Modelo Producto No.
PRO-BPF 118-137-N(f) 200001969
