- Use to attach 25 - 50 mm dia. antenna mast or boom to a mounting pipe using 50, 75,100 or 125 mm dia. U-Bolts.
- U-Bolts used for mounting the bracket to the pole is to be ordered separately.
- One set of two M8 x 50 mm dia. U-Bolts and two inserts.
Description
Spécifications
| Électrique FR | ||
|---|---|---|
|
||
| Mécanique FR | ||
|---|---|---|
|
||
|
||
|
||
|
||
|
||
|
||
|
||
Désignations de commande
| Model | N ° de produit | |
|---|---|---|
| Cast Aluminium Cross Clamp, 25-50 mm / 50-125 mm | 0300284/00 | |
| Accessories | ||
| A set of two M8 x 50 mm dia. U-Bolts | 4884036/00 | |
| A set of two M8 x 75 mm dia. U-Bolts | 4884076/00 | |
| A set of two M8 x 100 mm dia. U-Bolts | 4884035/00 | |
| A set of two M8 x 125 mm dia. U-Bolts | 4884057/00 | |

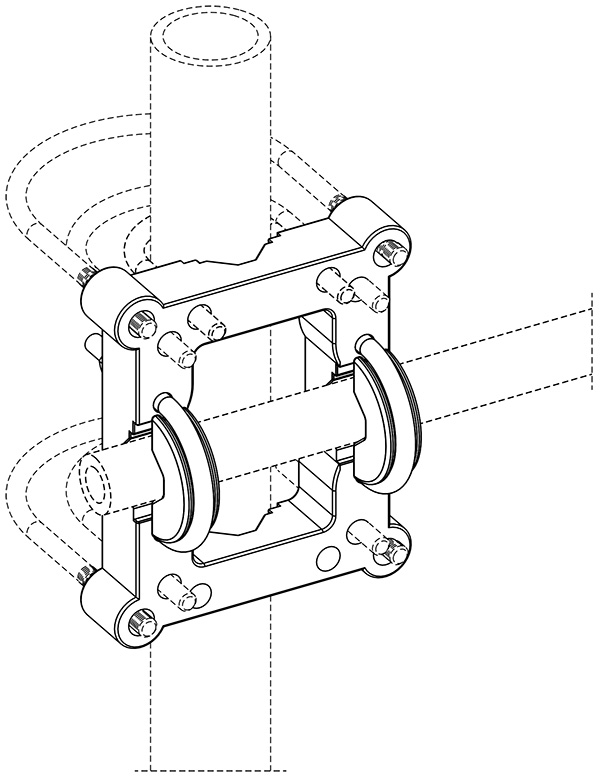

Mounting details

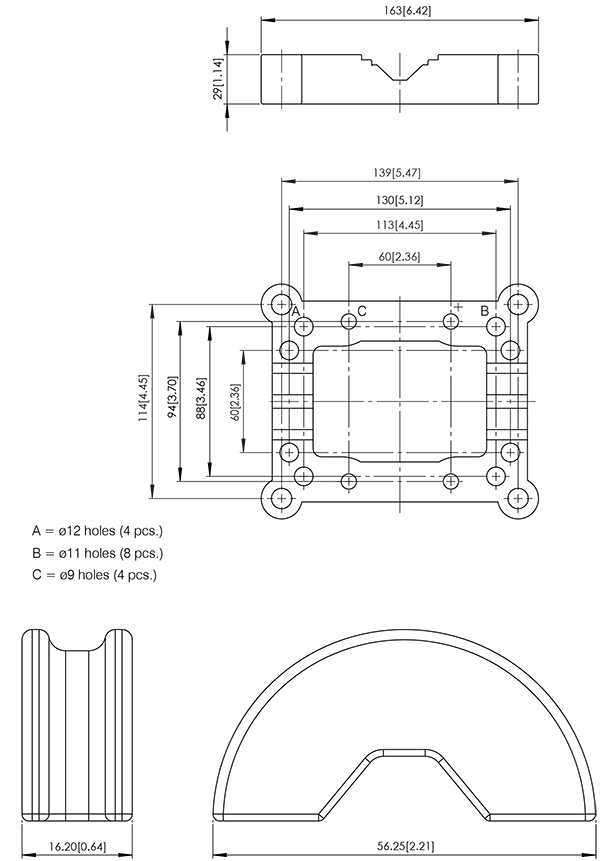

Dimension
All dimensions are given in mm [in.]
