CXL 690-4200LW

Antennes omnidirectionnellesCXL 690-4200LW

Wideband Base Station and Marine Antenna for the 690 - 4200 MHz Band

Description

  • Wideband future proof base station antenna cover all 3G, 4G LTE and 5G frequencies. Also provides full band coverage for Band 8 and CBRS.
  • The carefully designed, broad-banded antenna element is sealed in a high-quality cylindrical glass fiber tube, which will ensure performance undisturbed by corrosive environments.
  • Large bandwidth with respect to both VSWR and gain.
  • Highly suitable for duplex operation with large spacing between the Tx and the Rx frequencies for 4G or Private networks like Band 8 and CBRS.
  • Provided with the sturdy “LW” mast mount – a lightweight, multipurpose, epoxy-coated mounting bracket made of non-corrosive aluminium.
  • The cable can be led either on the outside or along the inside of the mast tube.
  • The CXL 690-4200LW is a corrosion resistant, modern style base station and marine antenna.

Spécifications

Électrique FR
Modèle CXL 690-4200LW
Fréquence 698 - 960 MHz 1760 - 2690 MHz 3300 - 4200 MHz
Puissance D'Entrée Max. 100 W
Polarisation Verticale
Largeur de faisceau: 3 dB plan vertical 80° ± 10°
Largeur de faisceau: 3 dB plan, horizontal Omnidirectionnel
Impédance 50 Ω
Gain 2 dBi 3 dBi 5 dBi
ROS < 2.5:1 Typical < 2:1 Typical < 2.5:1
Mécanique FR
Connexion(s) N(f)
Matériaux Shroud : Polyurethane-coated glass fibre
Mounting bracket : Seawater resistant aluminium, epoxy-coated
U-bolt and fittings : Stainless steel
Longueur Environ 375 mm
Dimensions 375 x 23 mm
Charge Du Vent 9.6 N (160 km/h)
Poids Environ 0.6 kg
Fixation Sur mât de 16 - 54 mm de diamètre
Environnement
Gamme De Température De Fonctionnement -30 °C to +70 °C
Vitesse Du Vent De Survie 200 km/h
Protection Contre La Pénétration IP66

Courbe ROS Typique

CXL 690 4200 LW Curve

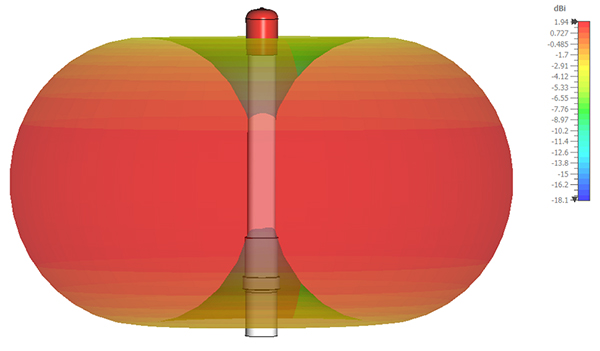

Typical radition pattern (E-plane) for 690 MHz

CXL690 4200 690MHz E plane

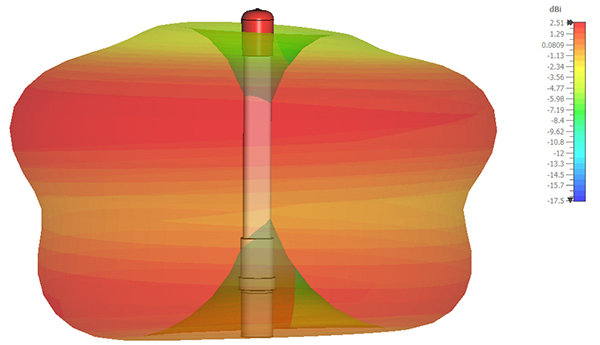

Typical radition pattern (E-plane) for 710 MHz

CXL690 4200 1710MHz E plane

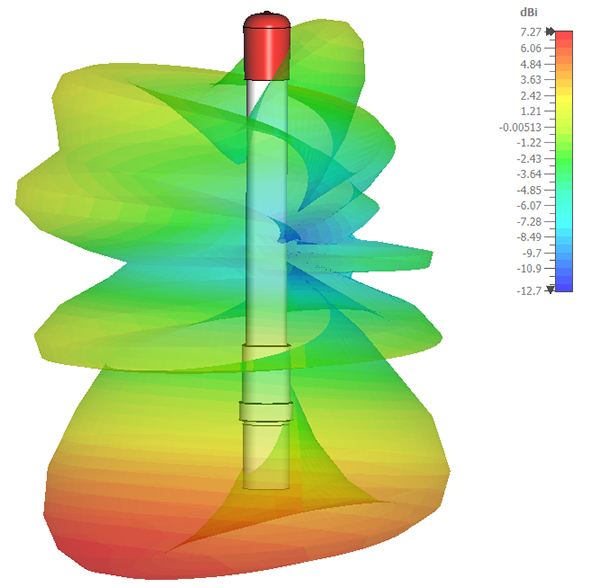

Typical radition pattern (E-plane) for 3300 MHz

CXL690 4200 3300MHz E plane

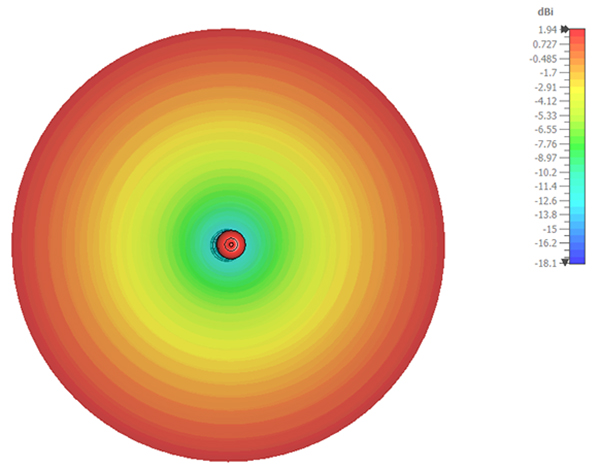

Typical radition pattern (H-plane) for 690 MHz

CXL690 4200 690MHz H plane

Typical radition pattern (H-plane) for 710 MHz

CXL690 4200 1710MHz H plane

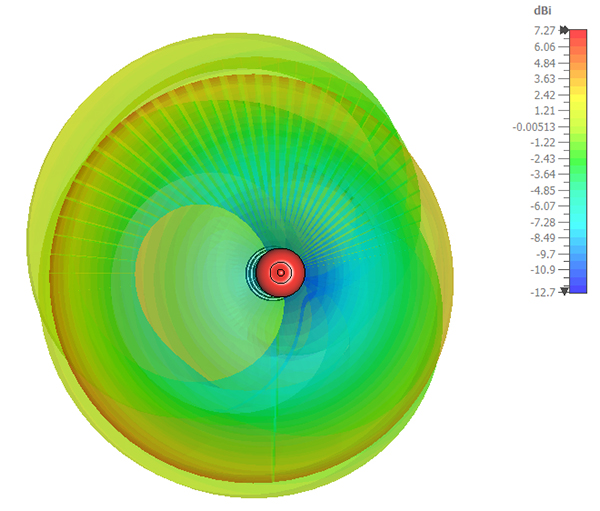

Typical radition pattern (H-plane) for 3300 MHz

CXL690 4200 3300MHz H plane
