CXL 5700-6

MarineCXL 5700-6

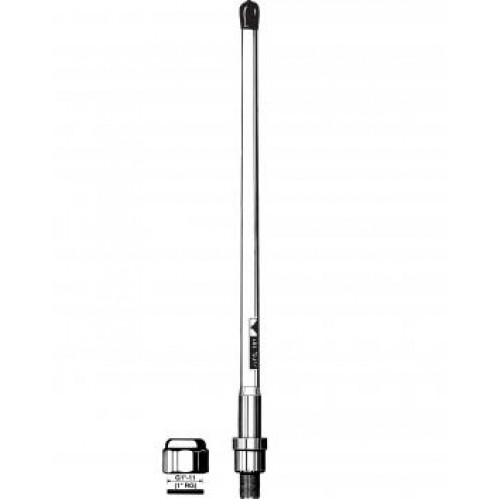

6 dBd Omnidirectional Base Station and Marine Antenna for the 5700 MHz Band

Description

  • Vertically polarized, omnidirectional base station and marine antenna.
  • Approximately 6 dBd gain.
  • Wide variety of accessory mounting brackets available.
  • Highly suitable for duplex operation with large spacing between the Tx and the Rx frequencies.
  • The antenna element is sealed in a high-quality, conical glass fibre tube.
  • The CXL 5700-6 is a vibration-proof, lightweight, slim-line, corrosion resistant, modern style base station and marine antenna.

Spécifications

Électrique FR
Modèle CXL 5700-6
Fréquence 5450 - 5750 MHz
Type D'Antenne colinéaire large bande
Puissance D'Entrée Max. 100 W
Polarisation Verticale
Largeur de faisceau: 3 dB plan vertical 14 °
Largeur de faisceau: 3 dB plan, horizontal Omnidirectionnel
Impédance 50 Ω
Gain 6 dBd (8.2 dBi)
ROS < 2.0:1
Bande Passante 300 MHz
Protection Antistatique Toutes les parties métalliques sont mises à la terre (le connecteur indique un court-circuit)
Code HCM HCM000ND00, 005DE40
Mécanique FR
Connexion(s) N(f)
Matériaux Shroud: Polyurethane-coated glass fibre
Mounting bracket: Chromed brass
Couleur Blanc (RAL 9003)
Vent 0.007 sq. m
Charge Du Vent 10 N (160 km/h)
Dia. En Haut 13 mm
Dia. À L'Extrémité Inférieure 16 mm
La Taille Environ 404 mm
Poids Environ 0.2 kg
Fixation On 1" RG (G1" - 11) threaded water pipe or on optional mounting brackets (see accessories )
Environnement
Gamme De Température De Fonctionnement -30 °C to +70 °C

Diagramme et Montage

ACCESSORIES (to be ordered separately)

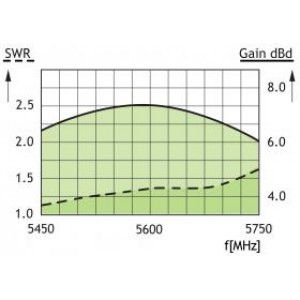

TYPICAL GAIN AND SWR CURVES

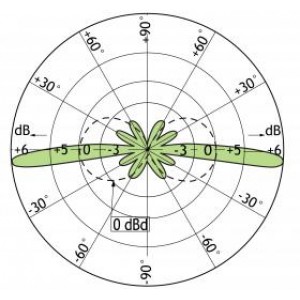

TYPICAL RADIATION PATTERN (E-PLANE)

TYPICAL RADIATION PATTERN (H-PLANE)

Désignations de commande

Model N ° de produit
CXL 5700-6 100000291
