DiplexeursPRO-DIPX 240/370

100 W Diplexer for the 0 - 240 MHz and 370 - 960 MHz Ranges

Description

Diplexer for combining or splitting the two ranges 0 – 240 MHz and 370 – 960 MHz.
Available in an indoor and outdoor version.
Eliptical filter design ensures very high isolation across the entire pass ranges.
High power-handling capability.
Very low insertion loss.
Wide temperature range.
7/16 DIN connectors or N connectors on all ports.
Coated with 2-component lacquer for maximum weather protection.
Mast mounting bracket available for the outdoor version.

Électrique FR

Modèle

PRO-DIPX 240/370-...

Fréquence

COM - LOW port : 0 - 240 MHz
COM-HIGH port : 370 - 960 MHz

Puissance D'Entrée Max.

100 W CW simultaneously on both HIGH and LOW port

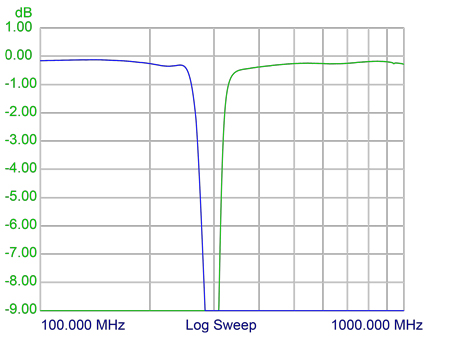

Perte D'Insertion

0 - 240 MHz : ≤ 0.4 dB
370 - 960 MHz : ≤ 0.5 dB

Impédance

50 Ω

Isolement

LOW to HIGH port : ≥ 70 dB

ROS

< 1.5:1

Mécanique FR

Connexion(s)

7/16 DIN(f) or N(f)

Dimensions

Indoor version : 120 x 100 x 46 mm / 4.72 x 3.94 x 1.81 in.
Outdoor version : 126 x 100 x 46 mm / 4.96 x 3.94 x 1.81 in.

Poids

Indoor version : Environ 865 g / 1.90 lb.
Outdoor version : Environ 1000 g / 2.20 lb.

Fixation

Indoor : ø5.2 mm / ø0.20 in. (4 holes)
Outdoor : ø7.0 mm / ø0.28 in. (2 holes)

Environnement

Gamme De Température De Fonctionnement

-30 °C to +50 °C

Protection Contre La Pénétration

Indoor version : IP64
Outdoor version : IP67

Model	N ° de produit	Description
PRO-DIPX 240/370-7/16(f) Indoor	200002314	Indoor use
PRO-DIPX 240/370-7/16(f) Outdoor	200002313	Outdoor use
PRO-DIPX 240/370-N(f) Indoor	200002771	Indoor use
PRO-DIPX 240/370-N(f) Outdoor	200002908	Outdoor use
Accessories
Mast mounting bracket for PRO-DIPX 240/370-… Outdoor	200002305
