MU 9-XP4/..., MU 9-CXP4/..., MU 9-XGP4/...

Fouet AntennesMU 9-XP4/..., MU 9-CXP4/..., MU 9-XGP4/...

450 MHz 2 dB mobile antenna for glass fibre roof

Description

  • Ground plane independent antenna for installation on non-conducting surfaces.
  • Ideal for glass fibre roofs as can be found on some trucks, busses, transport vans and trains.
  • MU 9-XP4/s can be tuned by cutting within 380…410 MHz.
    MU 9-XP4/l can be tuned by cutting within 400…440 MHz.
    MU 9-XP4/h can be tuned by cutting within 430…470 MHz.
  • M6-thread whip-fastening system.
  • Simple mounting exclusively with access from the outside.
  • Models available with oblong or circular mount.
  • Also oblong models with GPS are available.
  • Delivered with permanently attached 4 m RG 58 cable terminated with FME-connector. (Other models on request)
  • Câble homologué ECE R118.02.
  Please note that the MU 9-XP4 and MU 9-XGP4 type "s"-, "l"- and "h" mounts contain matching transformers. Consequently, these special mounts cannot operate with other whip types.

Spécifications

Électrique FR
Modèle MU 9-XP4/..., MU 9-CXP4/..., MU 9-XGP4/...
Fréquence Bande 450 MHz couverte par trois modèles
Type D'Antenne End-fed ½ λ dipole mobile antenna
Puissance D'Entrée Max. 40 W
Polarisation Verticale
Impédance 50 Ω
Gain (EIA RS-329-1) 2 dB
Mécanique FR
Conformité Câble homologué ECE R118.02.
Connexion(s) Cable RG 178, length 150 mm
Connector : FME(m)
Matériaux Whip: Polyethylene-covered spring steel wire
Mount: Black-chromed brass
Weather- and shockproof plastics
Surface treated steel
Câble 4 m cable terminated with FME-connector.
(Other cable lengths on request)
Couple D'Installation Max. 3 Nm
Couleur Noire
La Taille Environ 410 mm
Poids Environ 0.21 kg
Fixation From outside : 21 mm dia. hole
From inside : 14 mm dia. hole
Montage Pour Modèles GPS ø 19 mm trou
Épaisseur De Plaque De Montage 0.6 - 5 mm
Antenne GPS
Bruit De Bruit (Amplificateur GPS) Max.1.5 dB (typical 1.1 dB)
Gain (Amplificateur GPS) 22 dB ±2 dB
Fréquence (GPS) 1575.42 ±1.023 MHz
Alimentation (GPS) DC 2.85 V ~ 5 V (typical 3 V)
Impedance (GPS) 50 Ω

Désignations de commande

Model N ° de produit Description Fréquence
MU 9-XP4/s 130001089 Oblong mount with 4 m cable and FME-conn. 380... 410 MHz
MU 9-XP4/l 130001097 Same mount as above 400... 440 MHz
MU 9-XP4/h 130001085 Same mount as above 430... 470 MHz
MU 9-CXP4/s 130001096 Circular mount with 4 m cable and FME-conn. 380... 410 MHz
MU 9-CXP4/l 130001098 Same mount as above 400... 440 MHz
MU 9-CXP4/h 130001086 Same mount as above 430... 470 MHz
MU 9-XGP4/s 132000190 Oblong mount with 4 m and FME-conn., and GPS 380... 410 MHz
MU 9-XGP4/l 132000189 Same mount as above 400... 440 MHz
MU 9-XGP4/h 132000188 Same mount as above 430... 470 MHz

Ordering Designations

TYPEPRODUCT NO.CELLULAR SYSTEMMOUNT VERSION
READY-TUNED MODELS (examples)
MU 9-XP4/380-410 MHz  Contact for availability TETRA BOS,
Germany		 Oblong mount with 4 m cable and FME-conn.
MU 9-XP4/410-430 MHz  Contact for availability Industrial Systems
Germany		 Same mount as above
MU 9-XP0.1/380-410 MHz-MFME  Contact for availability TETRA BOS,
Germany		 Oblong mount with 0.1 m cable and FME-male conn.
MU 9-CXP4/380-410 MHz  Contact for availability TETRA BOS,
Germany		 Circular mount with 4 m cable and FME-conn.
MU 9-CXP4/410-430 MHz  Contact for availability Industrial Systems
Germany		 Same mount as above
MU 9-CXP0.1/ 380-410 MHz-MFME 130002191 TETRA BOS,
Germany		 Circular mount with 0.1 m cable and FME-male conn.
MU 9-XGP4/380-410 MHz  Contact for availability TETRA BOS,
Germany		 Oblong mount with 4 m cable and FME-conn., and GPS
MU 9-XGP0.1/ 380-410 MHz-MFME 132000191 TETRA BOS,
Germany		 Oblong mount with 0.1 m cable and FME-male conn., and GPS

When ordering a ready-tuned model, the name of the desired cellular system must be added to the antenna model number.

MU 9-XGP4 Mount

Please note that the MU 9-XP4, MU 9-CXP4 and MU 9-XGP4 type "s"-, "l"- and "h" mounts contain matching transformers. Consequently, these special mounts cannot operate with other whip types.

Installation

This antenna is especially designed for installation on non-conducting surfaces as e.g. glass fibre roofs, as can be found on some trucks, busses, transport vans and trains.

The antenna is an end-fed, ½ λ-dipole concept which can be fed in such a way that the antenna does not require a “ground plane” as required by the standard ¼ λ, 5/8 λ or collinear mobile whips.

It is useful to note that this antenna type can be used anywhere where the ground plane is poor or completely missing, as e.g.: side-mounted on a clamp as a pager antenna on a wall or mounted at the very edge of a ground-plane without the loss induced by a tilted radiation pattern.

The antenna must be mounted on a horizontal surface. When cleaning the vehicle in car-washing machines, the whip is easily dismounted using a spanner, size 9 mm. The whip is refitted again by screwing it onto the M6 thread stud on the mount and tightening it lightly with the spanner.

A polyethylene-covered, closely spirally wound flat steel-band material causes the whip always to stand erect while at the same time being very flexible.



1. Installation Dimensions

1A.

1B. FOR GPS-MODELS



2. Installation steps

2A. (From outside)

Do not use sealer on rubber gasket or other places.


2B. FOR GPS-MODELS (From outside)

Do not use sealer on rubber gasket or other places.


2B. ASSEMBLY INSTRUCTIONS (for GPS-models)

  1. Put GPS-FME-connector-cable through the gasket (2).
  2. Put the gasket (3) + GPS-part (1) over the body (B).
  3. Put the body (B) + gasket (3) + GPS-part (1) through the ø19 mm hole.
  4. Put the housing (4) over the body (B) and be sure that the GPS-part (1) fits into the
    square hole in the body (B).
  5. Put the threaded part over the body (5) and tighten max. 3 ±1 Nm!
  6. Mount the antenna whip.

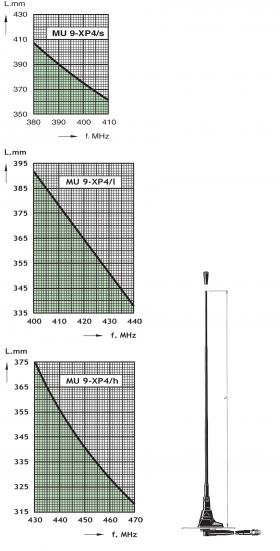

3. Tuning

The antenna should always be tuned using an SWR-indicating device. The cutting diagrams below serve as a guide for this procedure.

Déclaration de Conformité UE et UK

Par la présente, Amphenol Procom déclare que le type de produit MU 9-XGP4 est en conformité avec la Directive 2014/53/UE de l’UE et
le UK Radio Equipment Regulations 2017 (S.I. 2017 No. 1206).
Le texte intégral de la déclaration de conformité est disponible à:

https://amphenolprocom.com/images/shop/catalog/pdf-for-catalouges/Declaration-of-Conformity-MU9-XGP4.pdf
