GPS-C HX 2/FQ

GPS Combination AntennasGPS-C HX 2/FQ

GPS Antenna with a ¼ λ Helical Antenna for the 160 MHz Band

Description

  • External antenna whip mounted on the GPS-Combi mount.
    • Flexible, conical steel helix moulded in flexible thermoplastic rubber.
    • Reduced-size ¼ λ helical antenna whip.
    • Easily removable whip for cleaning in car-washing machine.
  • GPS-antenna for fixed installations.
    • Full hemispherical coverage.
    • Built-in high gain, low noise amplifier.
    • Right-Hand Circularly Polarized antenna (RHCP).
    • 5 V supply voltage (3 V respectively 12 V available on request).
    • DC supply via RF-connector.

Specifications

Electrical
Model GPS-C HX2/FQ
Frequency Tunable by cutting within : 144 - 175 MHz
Antenna Type Shortened ¼ λ helical antenna
Max. Input Power 10 W
Polarisation Vertical
Impedance 50 Ω
Gain (EIA RS-329-1) -3 dB
Mechanical
Materials Steel helix moulded in flexible
thermoplastic rubber
Black-chromed brass
Colour Black
Height Approx. 130 mm / 5.12 in.
Weight Approx. 0.034 kg / 0.07 lb.
Mounting On the GPS-Combi mount
GPS Antenna
P1dB (GPS Amplifier) Approx. 7 dBm
Gain (GPS) 28 dBic in axial direction (typ.)
Connection(s) (GPS) FME(m) (male for GPS) +
FME(f) (female for mobile antenna)
Antenna Type (GPS) Active patch antenna
Noise Figure (GPS Amplifier) < 1 dB (typ.)
Cross Polar Discrimination (GPS) > 10 dB (typ.)
Gain (GPS Amplifier) > 30 dB (typ.)
VSWR (GPS Amplifier) < 2.0:1
Operating Temperature Range (GPS) -35 °C to +75 °C
Selectivity (GPS) > 45 dB down @ ± 45 MHz
Installation Torque (GPS) 4 ± 0.5 Nm
Frequency (GPS) 1575 MHz
Weight (GPS) Approx. 0.114 kg / 0.25 lb.
Power Supply (GPS) 5 ± 0.5 V DC (3 V resp. 12 V on request)
Current Consumption (GPS Amplifier) Approx. 25 mA
Dimensions (GPS) Approx. 30 x 89 mm / 0.9 x 2.9 in.
Max. Roof Thickness (GPS) 2.5 mm / 0.10 in.
Colour (GPS) Black
Polarisation (GPS) RHCP
Impedance (GPS) 50 Ω
Materials (GPS) Cu-nite brass
Stainless steel
Reinforced thermoplastic

Ordering Designations

Model Product No.
GPS-C HX2/FQ 132000049

Connection Diagram

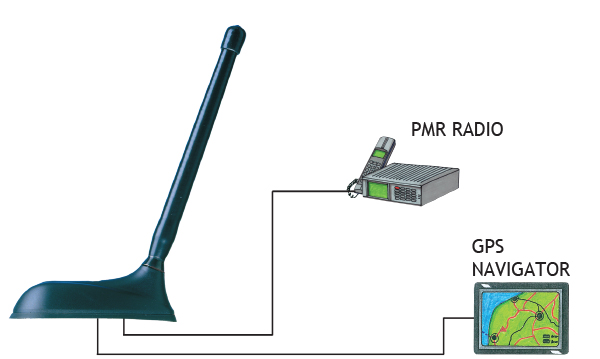

 GPS C HX 2 Connection Diagram GB

Mounting Instructions

GPS C mounting instructions 2 GB

Do not use sealer on rubber gasket or other places.

Cable Mounting

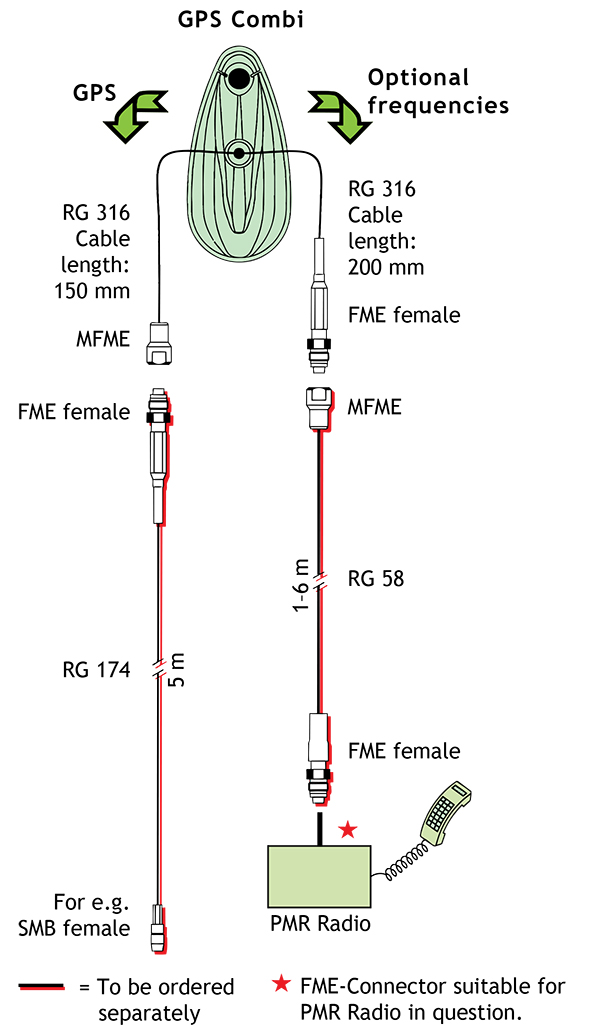

GPS C HX 2Combi GB

Typical response curves

GPS C resp kurve2 GB

GPS C resp kurve1 GB

Vertical Radiation Pattern

GPS C Vertical Radition pattern

EU and UK Declaration of Conformity

Hereby Amphenol Procom declare that the product type GPS-C HX 2/FQ is in compliance with EU Directive 2014/53/EU and
the UK Radio Equipment Regulations 2017 (S.I. 2017 No. 1206).
The full text of the Declaration of Conformity is available at:

https://amphenolprocom.com/images/shop/catalog/pdf-for-catalouges/Declaration-of-Conformity-GPS-C-1.pdf
