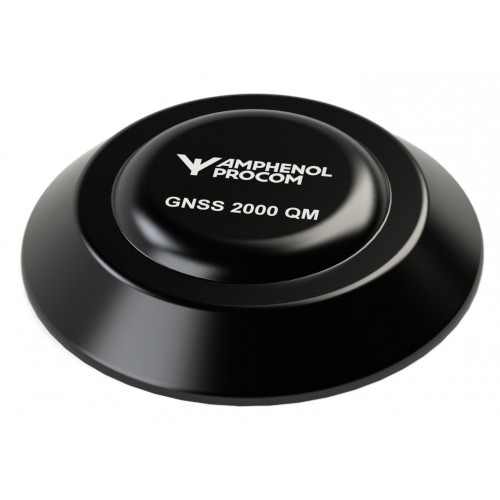

GPS AntennasGNSS 2000 QM

Active Receiving Antenna for the GPS, GLOMASS, BEIDOU and GALILEO

Description

Flat-pack GNSS-antenna for fixed installations.
Full hemispherical coverage.
Built-in high-gain, low-noise amplifier.
Right-hand circular polarization (RHCP).
3 V - 15 V supply voltage.
DC supply via RF-connector.
EMC tested acc. to EN 301 489-1.
ECE R118.02 approved cable.

Specifications

Electrical

Model

GNSS 2000 QM

Mechanical

Compliance

ECE R118.02 approved cable

Connection(s)

0.3 m RG 316 permanently attached cable with Different connector available, see nomenclature.

Materials

Cu-nite brass, seawater resistant
Lexan

Installation Torque

8.5 ±1 Nm

Colour

Black

Dimensions

55 mm dia.

Height

27 mm / 1.22 in. total for P0.15 models

Weight

Approx. 0.12 kg / 0.26 lb.

Mounting

10 - 16 mm / 0.40 - 0.63 in. dia. hole

Mounting Plate Thickness

0.7 - 4.5 mm / 0.03 - 0.18 in.

GNSS Antenna

Cross Polar Discrimination (GNSS)

> 10 dB (typ.)

Frequency (GNSS)

1559 - 1609 MHz (GPS L1, Glonass, Beidou and Galileo)

Polarisation (GNSS)

RH Circular

Impedance (GNSS)

50 Ω

GNSS LNA

Gain (GNSS LNA)

29 dB ±3 dB

Noise Figure (GNSS LNA)

< 3.5 dB : 1559 - 1610 MHz
Typ. 2.0 dB @ 1575 MHz

Attenuation Out Of Band (GNSS LNA)

> 25 dB, 0 - 1525 MHz
> 25 dB, 1640 - 3000 MHz

P1dB (GNSS LNA)

> 6 dBm

VSWR (output) (GNSS LNA)

< 2.0:1

Supply Voltage (GNSS LNA)

3 - 15 V DC

Current Consumption (GNSS LNA)

20 mA

Environmental

Operating temperature range

-50 °C to +70 °C

Ingress Protection

IP69

Impact Protection

IK10

Ordering Designations

Model	Product No.	Description
GNSS 2000 QM-S	112000115	Black, 1xGNSS w. SMA(m)
GNSS 2000 QM-F	112000116	Black, 1xGNSS w. FME(m)
GNSS 2000 QM-FC	112000117	Black, 1xGNSS w. FAKRA C(f)
GNSS 2000 QM-P5-S	112000118	Black, 1xGNSS w. 0,3m SMA(m), 5m AP195 Extension cable
GNSS 2000 QM-P5-F	112000119	Black, 1xGNSS w. 0,3m FME(m), 5m AP195 Extension cable
GNSS 2000 QM-P5-FC	112000120	Black, 1xGNSS w. 0,3m FAKRA C(f), 5m AP195 Extension cable
Accessories FME-Cables
1m RG58 FME(f) - FME(f)	130000437	1m RG58 FME(f) - FME(f)
2m RG58 FME(f) - FME(f)	130000447	2m RG58 FME(f) - FME(f)
3m RG58 FME(f) - FME(f)	130000457	3m RG58 FME(f) - FME(f)
4m RG58 FME(f) - FME(f)	130000466	4m RG58 FME(f) - FME(f)
5m RG58 FME(f) - FME(f)	130000474	5m RG58 FME(f) - FME(f)
6m RG58 FME(f) - FME(f)	130000483	6m RG58 FME(f) - FME(f)
1m RG58 FME(f) - RA - FME(f)	130000526	1m RG58 FME(f) - RA - FME(f)
2m RG58 FME(f) - RA - FME(f)	130000527	2m RG58 FME(f) - RA - FME(f)
3m RG58 FME(f) - RA - FME(f)	130000528	3m RG58 FME(f) - RA - FME(f)
4m RG58 FME(f) - RA - FME(f)	130000529	4m RG58 FME(f) - RA - FME(f)
5m RG58 FME(f) - RA - FME(f)	130000530	5m RG58 FME(f) - RA - FME(f)
6m RG58 FME(f) - RA - FME(f)	130000531	6m RG58 FME(f) - RA - FME(f)
4m RG58W FME(f) - FME(f)	110000064	4m RG58W FME(f) - FME(f)
6m RG58W FME(f) - FME(f)	110000066	6m RG58W FME(f) - FME(f)
12m RG58W FME(f) - FME(f)	110000068	12m RG58W FME(f) - FME(f)
18m RG58W FME(f) - FME(f)	110000069	18m RG58W FME(f) - FME(f)
Accessories FME-Connectors
FME(f) - FME(f)	130000583	FME(f) - FME(f)
FME(m) - FME(m)	130000565	FME(m) - FME(m)
FME(m) - N(m)	130000571	FME(m) - N(m)
FME(m) - SMA(f)	130000578	FME(m) - SMA(f)
FME(m) - BNC(m)	130000566	FME(m) - BNC(m)
FME(m) - TNC(m)	130000569	FME(m) - TNC(m)
FME(m) - UHF(m)	130000572	FME(m) - UHF(m)
FME(m) - MUHF(m)	130000573	FME(m) - MUHF(m)
FME(m) - RA - MUHF(m)	130000582	FME(m) - RA - MUHF(m)
FME(m) - RA - BNC(m)	130000580	FME(m) - RA - BNC(m)
FME(m) - RA - TNC(m)	130000581	FME(m) - RA - TNC(m)
FME(m) - SMA(m)	130000577	FME(m) - SMA(m)
FME(m) - SMC(m)	130001573	FME(m) - SMC(m)

FME-System Accessories - Note

For further information about other types of FME-cables and FME-connectors, please compare the cable and connector data sheets under accessories.

Mounting Details

1. Before Installation

Environmental and car temperature must be above 15 ºC at installation, and installation surface must be dry and clean.

Nomenclature

Model Name	Cable length	Connectors
GNSS 2000 QM	Blank (approx. 0.3 m / 1 ft. cable length) -P5 (5 m / 16.4 ft. cable length)	-S (SMA-M) -FME (FME-M) -FAKRA (on request)

2. Installation

Do not use sealer on rubber gasket or other places.

EU and UK Declaration of Conformity

Hereby Amphenol Procom declare that the product type GNSS 2000 QM is in compliance with EU Directive 2014/53/EU and
the UK Radio Equipment Regulations 2017 (S.I. 2017 No. 1206).
The full text of the Declaration of Conformity is available at:

http://amphenolprocom.com/images/shop/catalog/pdf-for-catalouges/Declaration-of-Conformity-GNSS 2000 QM.pdf
