- Sturdy, general-purpose ¼ λ antenna in professional quality.

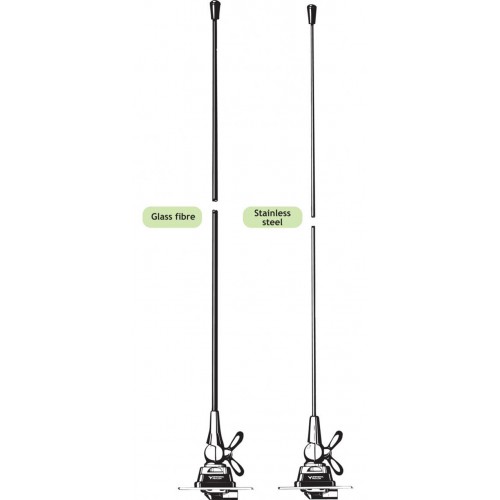

- Available with glass fiber or stainless steel whip.
- Stainless steel Z-mount with ball-joint and wing screw whip-fastening system.
- Available with bright or black-chromed metal parts (mount and whip):
- ML 2-Z…: Bright version
- ML 2-BZ…: Black version
- Simple mounting exclusively with access from the outside.
Models with roof thickness from 2 mm to 7.5 mm mounting from the inside. - Choice between two connection principles: Z-mount:
- FME-connection (supplied without cable).
- ZP4-mount: Permanently attached 4 m cable terminated with FME-connector.
Description
Specifications
| Electrical | ||
|---|---|---|
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
||
| Mechanical | ||
|---|---|---|
|
||
|
||
|
||
|
||
|
||
|
||
|
||
Ordering Designations
| Model | Product No. | Description | Frequency | |
|---|---|---|---|---|
| ML 2-BZR | 130000650 | Stainless Steel Whip | BZ-mount with FME-system BLACK | |
| ML 2-ZR | 130000643 | Stainless Steel Whip | Z-mount with FME-system BRIGHT | |
| ML 2-BZP4R | 130000648 | Stainless Steel Whip | BZP4-mount with 4 m cable and FME-connector BLACK | |
| ML 2-ZP4R | 130000646 | Stainless Steel Whip | ZP4-mount with 4 m cable and FME-connector BRIGHT | |
| ML 2-BZ | 130000638 | Glassfibre Whip | BZ-mount with FME-system BLACK | |
| ML 2-Z | 130000639 | Glassfibre Whip | Z-mount with FME-system BRIGHT | |
| ML 2-BZP4 | 130000641 | Glassfibre Whip | BZP4-mount with 4 m cable and FME-connector BLACK | |
| ML 2-ZP4 | 130000642 | Glassfibre Whip | ZP4-mount with 4 m cable and FME-connector BRIGHT |
The whip is compatible with all below mounts
Installation
This antenna is supplied with type Z-mount. The whip is fastened to the mount by means of our standard ball-joint and wing screw system. The adjustable ball-joint ensures that the whip can always be mounted in a vertical position independent of the angle of the installation spot.
The Z-mount is particularly well suited for mounting on car-roofs because of its ability to be installed exclusively with access from the outside. The Z-Mount for roof thickness from 2 mm to 7.5 mm must be mounted from the inside. However, the antenna can be installed anywhere on the car, as the Z-mount is equally well suited for mounting on e.g. trunk or wing.
1. Installation Dimensions
2. Installation Steps
Do not use sealer on rubber gasket or other places.
3. Tuning
The antenna should always be tuned using an VSWR-meter.

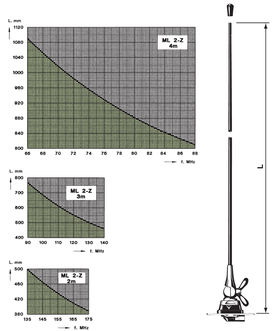

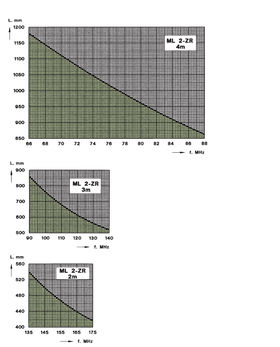

The cutting diagrams below serve as a guide for this procedure.
GLASS FIBRE WHIP
STAINLESS STEEL WHIP
