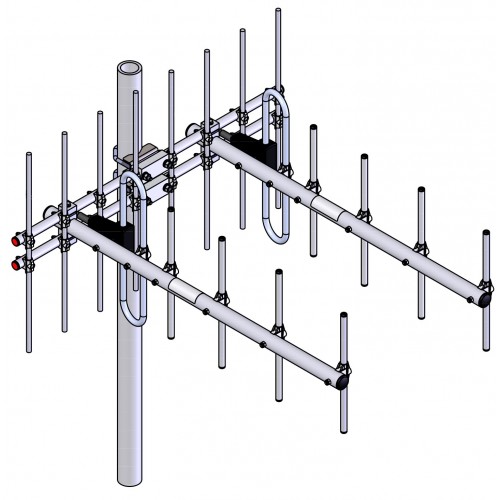

7042385-CM2

Yagi Antennas7042385-CM2

Double Yagi antenna, 11 dBd, 380 - 400 MHz

Description

  • A bayed 4-element Yagi array for UHF indoor coverage systems.
  • The antenna is designed to offer a narrow beam pattern, very low sidelobes and hight front to back ratio, making it ideal as a donor / pickup antenna in indoor UHF repeater systems.

Specifications

Electrical
Frequency 380 - 400 MHz
Max. Input Power 150 W
Polarisation Linear (Vertical or Horizontal)
3 dB Beamwidth, E-Plane 49 °
3 dB Beamwidth, H-Plane 38 °
Impedance 50 Ω
Gain 11 dBd (13.2 dBi)
VSWR < 1.5:1
Front-To-Back Ratio > 20 dB
Antistatic Protection All metal parts DC-grounded (Connector shows a DC-short)
1st Sidelobe level -25 dB
Mechanical
Connection(s) N(f) on 1.3m RG213/U cable (including splitter)
Materials Boom, 32 mm dia. aluminium
elements, 12.7 mm dia. aluminium
balun, fully moulded enclosure
Dimensions 750 x 830 x 480 mm / 29.5 x 32.7 x 18.9 in.
Wind Load 141 N (160 km/h)
Weight Approx. 5.5 kg / 12.1 lb.
Mounting Bracket Included for 32 - 50 mm mast
Balun Encapsulant Polyurethane Resin U-600
Environmental
Operating temperature range -40 °C to +65 °C
Ingress Protection IP68

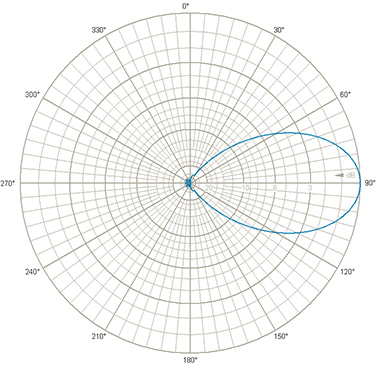

Radiation Pattern, E-Plane

7042385 CM2 Pattern Image Elevation

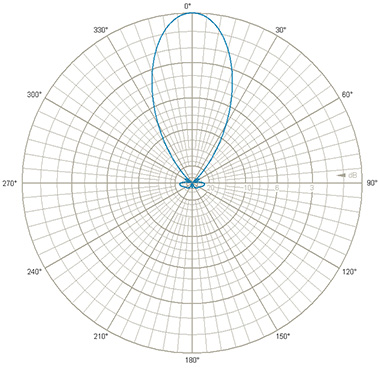

Radiation Pattern, H plane

7042385 CM2 Pattern Image Azimuth



Note:

For transportation, Yagis, reflector and cable coupler are delivered disassembled.
