Marifix 1 / Marifix 2 / ADT / MBS

Marine AntennasMarifix 1 / Marifix 2 / ADT / MBS

Marine 4-Way Swivel Ratchet Mounts, Adapter Tube, Marifix Barrel Spring

Description

  • MariFix1 / MariFix 2
    • The 4-way swivel ratchet mounts permit mounting of marine antennas on slanted decks, cabin roofs or bulkheads mounting.
    • Fast-release locking mechanisms allows antenna to fold down.
    • Vibration secure and fast-release locking mechanisms make tilting and complete lay-down of the antenna quick and easy.
    • The MariFix 1 is made of chromed brass.
    • The MariFix 2 is made of UV resistant polycarbonate.
    • Max. antenna height with the MariFix 1 and MariFix 2 mounts
      • MariFix 1: Max. 4.5 m
      • MariFix 2: Max. 2.0 m
    • To prevent damage it is recommended to lay down long antenna elements when the vessel is operated at high speed.
    • The Marifix mounts are delivered with stainless steel screws/bolts, spring washers, and bolts along with a gasket.
  • ADT
    • Use the ADT adapting tube or MBS to fix antennas (based on mounting with revolving nut on 1” threaded water pipe) on the MariFix 1 / MariFix 2.
  • MBS
    • The MBS (MariFix Barrel Spring) is designed to move and flex with the antenna to prevent damage from strong winds or low hanging objects.
    • The MBS is designed to move and flex with the antenna to prevent damage from strong winds or low hanging objects.
    • The barrel spring is made from stainless steel for long lasting finish.
    • Max. antenna height: 1.2 m.

Specifications

Electrical
Model MariFix 1 MariFix 2 ADT MBS
Application Deck or bulkhead mount for marine antennas Deck or bulkhead mount for marine antennas Adapting tube Adapting spring
Mechanical
Materials Chromed brass Polycarbonate Chromed brass Chromed brass
Colour Bright chrome Marine white Bright chrome Bright chrome
Dimensions 96 x 56 x 129 mm /
3.78 x 2.20 x 5.08 in.		 104 x 66 x 130 mm /
4.10 x 2.60 x 5.12 in.		 33 x 110 mm dia. /
1.30 x 4.33 in. dia.		 51 x 131 mm dia. /
2.01 x 5.16 in. dia.
Antenna Height Max. 4.5 m Max. 2.0 m - -
Weight Approx. 0.81 kg / 1.80 lb. Approx. 0.22 kg / 0.50 lb. Approx. 0.19 kg / 0.42 lb. Approx. 0.7 kg / 1.54 lb.
Thread Type 1”-14 NF 1”-14 NF Top (ext.): G1”-11 (1” RG)
Bottom (int.): 1”-14 NF		 Top (ext.): G1”-11 (1” RG)
Bottom (int.): 1”-14 NF

Ordering Designations

Model Product No. Description
MariFix 1 110000050 Heavy-duty, chromed brass ratchet mount for deck or bulkhead mounting.
MariFix 2 110000048 Medium-duty, polycarbonate ratchet mount for deck or bulkhead mounting.
ADT 110000049 Adapting tube.
MBS 110000323 MariFix Barrel Spring

Mounting Details

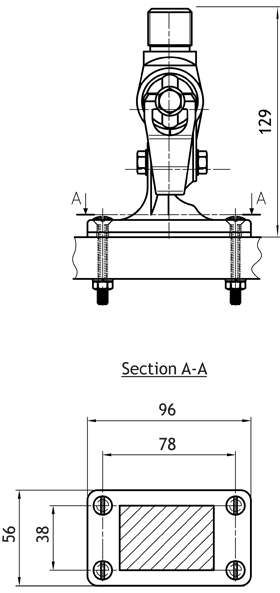

MariFix 1

Marifix1-montering-280x

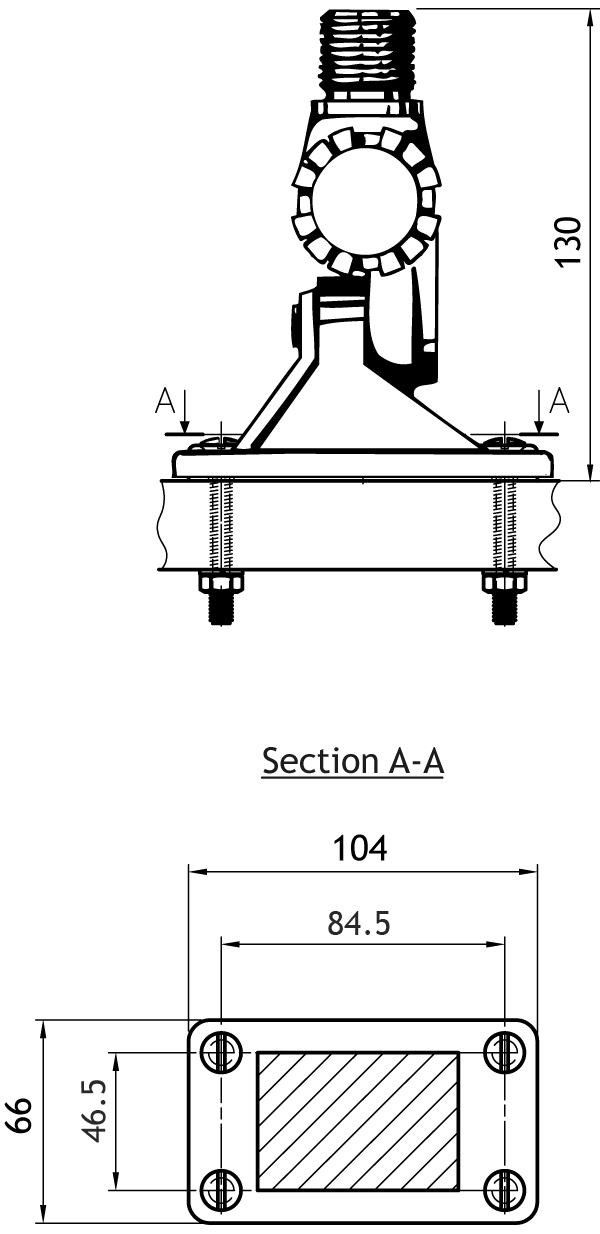

MariFix 2

Marifix2 montering

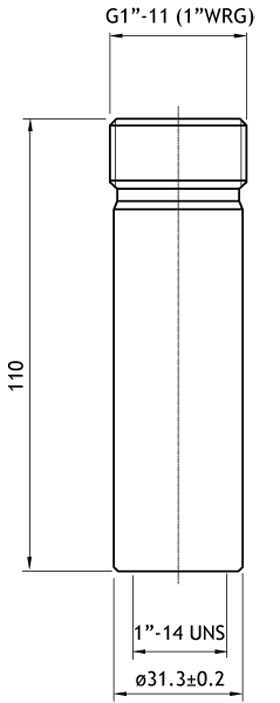

ADT

ADT-montering-280x

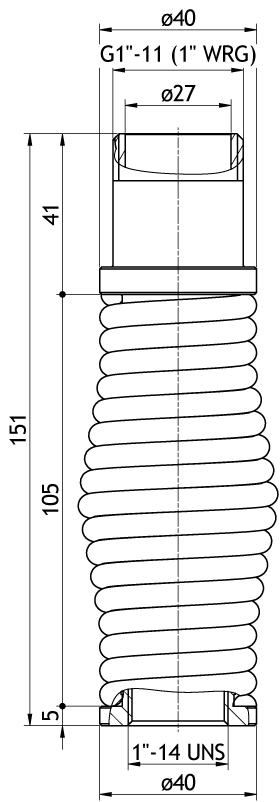

MBS

MBS-montering-280x
