- Use to securely attach the range of 760/766 Panel antennas to a vertical pole or mast.
- Supplied with stainless bolts to suit 38 - 120 mm diameter poles.
- Compatible with panel antennas 760/766 measuring 1.84 m in lenght.
- This bracket allows the antenna to tilt 0° to 22°.
Brackets and Mounts766.7020
Panel Bracket Kit 0° to 22 Tilt ø38 - ø120 mm Pole
Description
Specifications
| Electrical | ||
|---|---|---|
|
||
| Mechanical | ||
|---|---|---|
|
||
|
||
|
||
|
||
|
||
|
||
|
||
Ordering Designations
| Model | Product No. | |
|---|---|---|
| Bracket Kit for 760/766 Panel (large) 0° - 22° | 766.7020 |
Dimension

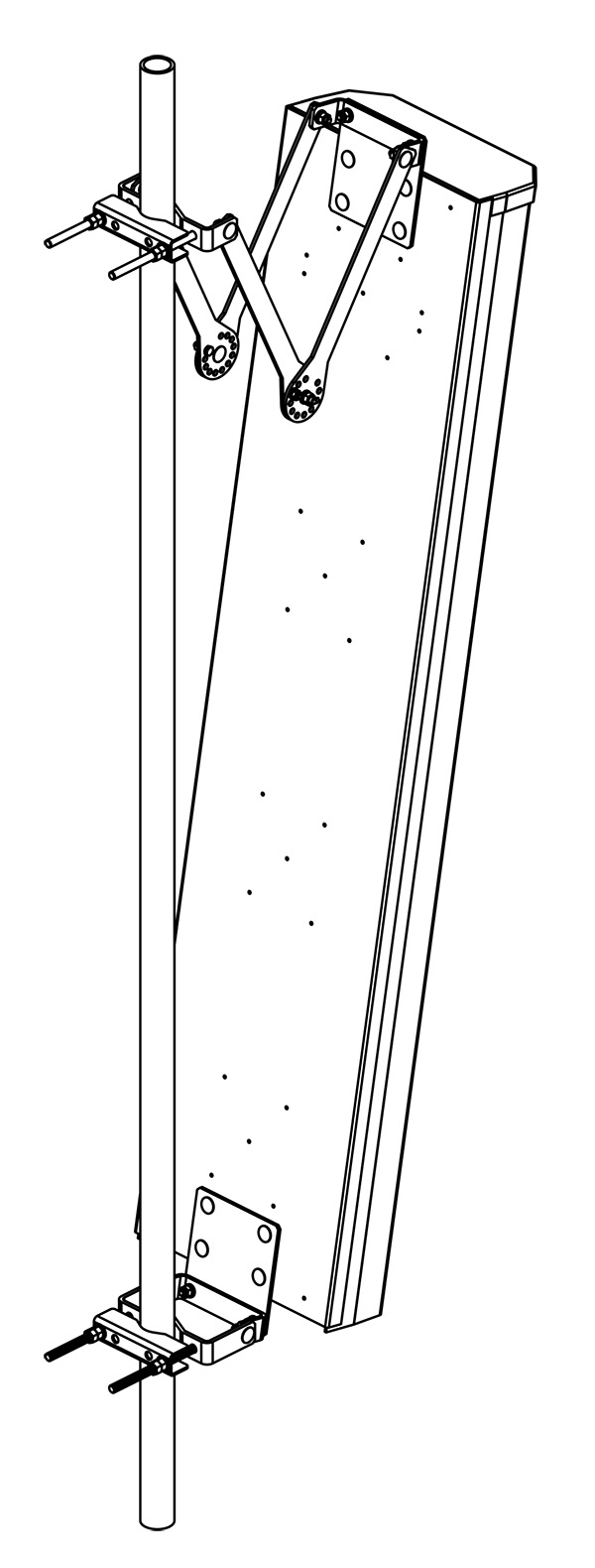

Mounting details
