GPS AntennasAIS 2/GPS 4

Dual Band Antenna for the AIS system

Description

  • This active antenna has been designed for use by the Universal Shipborne Automatic Identification System (AIS) on all waterways.
  • The antenna consists of a high-performance glass fibre encapsulated antenna element and an active GPS antenna.
  • The latter is built into the bottom part of the antenna together with a diplex filter. Only one down lead cable is therefore necessary.
  • The antenna element is a ½ λ antenna for the maritime VHF frequency range 156 - 162.5 MHz.
  • The GPS antenna has a full hemispherical coverage and a built-in high-gain, low-noise amplifier.
  • The necessary supply voltage (5 V DC) for the amplifier is delivered through the down lead coaxial cable. Up to 30 m of RG 214/U coaxial cable can be used between the antenna and the receiver/transceiver.
  • By careful choice of materials, the AIS 2/GPS 4 is designed to withstand the roughest of climate conditions, ensuring many years of trouble-free service.

Specifications

Electrical
Model AIS 2/GPS 4
Frequency 156 - 162.5 MHz
Antenna Type ½ λ antenna element
Max. Input Power 25 W
Polarisation Vertical
3 dB Beamwidth, H-Plane Omnidirectional
Impedance 50 Ω
Gain 0 dBd (2.2 dBi)
VSWR < 1.5:1
Mechanical
Connection(s) N(f)
Materials Shroud : Polyurethane coated glass fibre
Flange : Chromed brass
Colour Marine white
Wind Area 0.031 sq. m / 0.33 sq. ft
Wind Load 50 N (160 km/h)
Height Approx.1350 mm / 53.15 in.
Weight Approx. 0.9 kg / 1.98 lb.
Mounting On 30 - 44 mm mast tube using stainless steel clamp type SM-MAS or on deck using DM Mounting Kit
GPS Antenna
P1dB (GPS Amplifier) Approx. +10 dBm
Noise Figure (GPS Amplifier) < 3 dB (typ.)
Cross Polar Discrimination (GPS) > 10 dB (typ.)
Gain (GPS Antenna) 32 dB
Selectivity (GPS Amplifier) > 20 dB down @ ± 100 MHz
VSWR (GPS Amplifier) < 2.0:1
Frequency (GPS) 1575 MHz
Power Supply (GPS) 5 ±0.5 V DC (3 V and 12 V respectively available on request)>
Current Consumption (GPS Amplifier) Approx. 44 mA
Polarisation (GPS) RHCP
Impedance (GPS) 50 Ω
Environmental
Operating temperature range -30 °C to +70 °C
Ingress Protection IP66

Ordering Designations

Model Product No.
AIS 2/GPS 4-N 112000039
Accessories
DM Mounting Kit 112000001
SM-MAS 110000196
DIPX 1000/1550 DC-H 200000749
PRO-DIPX 1000/1550 DC-H XS 200001998

Typical Gain and VSWR curve

For the VHF band (156 - 162.5 MHz)

VSWR                                                          Gain

Radiation pattern for the VHF band (156 - 162.5 MHz)

Typical radiation pattern (E-PLANE)

Typical radiation pattern (H-PLANE)

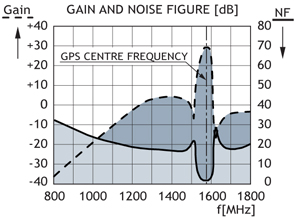

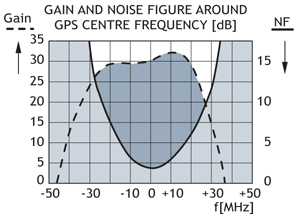

Gain and Noise curves

GPS 4 resp kurve2 GB

GPS 4 resp kurve1 GB



Typical response curves and radiation pattern for the GPS-Part (1575 MHz)

Vertical radiation pattern

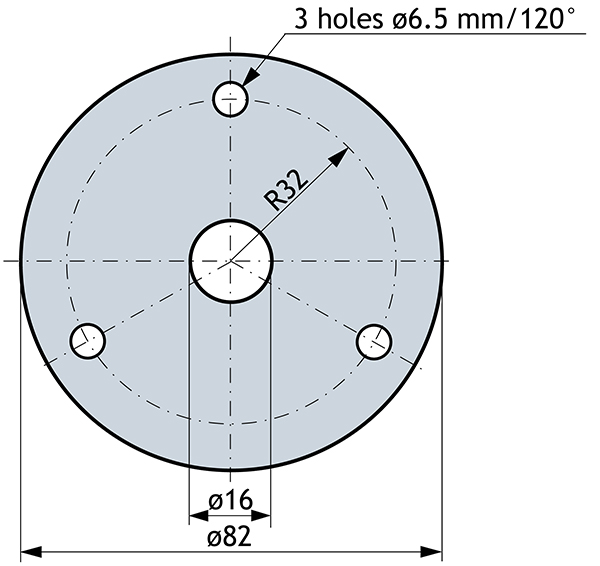

Mounting on flat surfaces

AAC 1 BCL 1 KA monting GB

All dimensions are given in mm



Alternatively, DIPLEXER DIPX 1000/1550-DC-H can be used. Either filter to be ordered separately.

Mounting Kits

Standard Mounting Kit included.



DM Mounting Kit for Deck Mount to be ordered separately



SM-MAS Mounting Kit for Side Mount and Mast Mount to be ordered separately.

All dimensions are given in mm.
