GPS Combination AntennasGPS-C R/DAB/FM

GPS Antenna with a ¼ λ Whip with Shock Spring for the DAB and FM Bands

Description

External antenna whip mounted on the GPS-Combi mount.
- Black-chromed, conical stainless steel whip.
- Sturdy, general-purpose ¼ λ antenna in professional quality.
- Easily removable whip for cleaning in car-washing machine.
GPS-antenna for fixed installations.
- Full hemispherical coverage.
- Built-in high gain, low noise amplifier.
- Right-Hand Circularly Polarized antenna (RHCP).
- 5 V supply voltage (3 V respectively 12 V available on request).
- DC supply via RF-connector.
When ordering the antenna, please state the centre frequency on each band.

Specifications

Electrical

Model

GPS-C R/DAB/FM

Frequency

DAB-Band : (223 - 240 MHz)
also receives FM band : (88 - 108 MHz)

Antenna Type

Mobile antenna

Polarisation

Vertical

Impedance

50 Ω

VSWR	< 1.3:1 @ f.res.

Gain (EIA RS-329-1)

0 dB

Mechanical

Materials

Whip : Black-chromed, conical stainless steel
Black-chromed brass
Mount : Weather- and shockproof plastics
Black-chromed brass

Colour

Black

Height

Approx. 290 mm / 11.42 in.

Weight

Approx. 0.05 kg / 0.11 lb.

Mounting

On the GPS-Combi mount

GPS Antenna

P1dB (GPS Amplifier)

Approx. +7 dBm

Coverage (GPS)

Hemispherical

Gain (GPS)

28 dBic in axial direction (typ.)

Connection(s) (GPS)

FME(m) (male for GPS) +
FME(f) (female for mobile antenna)

Mounting (GPS)

18.0 mm dia. hole for roof thickness upto 2.0 mm
18.5 mm dia. hole for roof thickness 2.0 - 2.5 mm
19.0 mm dia. hole for roof thickness 3.5 - 7.5 mm
Tools for mounting included

Antenna Type (GPS)

Active patch antenna

Cross Polar Discrimination (GPS)

> 10 dB (typ.)

VSWR (GPS Amplifier)

< 2.0:1

Operating Temperature Range (GPS)

-35 °C to +75 °C

Selectivity (GPS)

> 45 dB down @ ± 45 MHz

Installation Torque (GPS)

4 ± 0.5 Nm

Frequency (GPS)

1575 MHz

Weight (GPS)

Approx. 0.114 kg / 0.25 lb.

Power Supply (GPS)

5 ± 0.5 V DC (3 V resp. 12 V on request)

Current Consumption (GPS Amplifier)

25 mA

Dimensions (GPS)

Approx. 30 x 89 mm / 0.9 x 2.9 in.

Max. Roof Thickness (GPS)

2.5 mm / 0.10 in.

Colour (GPS)

Black

Polarisation (GPS)

RHCP

Impedance (GPS)

50 Ω

Materials (GPS)

Cu-nite brass
Stainless steel
Reinforced thermoplastic

Ordering Designations

Model	Product No.
GPS-C R/DAB/FM	132000058

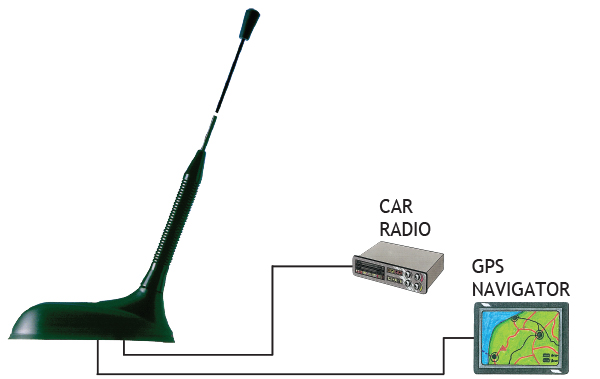

Connection Diagram

Mounting Instructions

Do not use sealer on rubber gasket or other places.

Cable Mounting

Typical Response curves

Vertical Radiation Pattern

EU and UK Declaration of Conformity

Hereby Amphenol Procom declare that the product type GPS-C R/DAB/FM is in compliance with EU Directive 2014/53/EU and
the UK Radio Equipment Regulations 2017 (S.I. 2017 No. 1206).
The full text of the Declaration of Conformity is available at:

https://amphenolprocom.com/images/shop/catalog/pdf-for-catalouges/Declaration-of-Conformity-GPS-C-2.pdf
