GPS-C MU 3/TETRA/l

GPS Combination AntennasGPS-C MU 3/TETRA/l

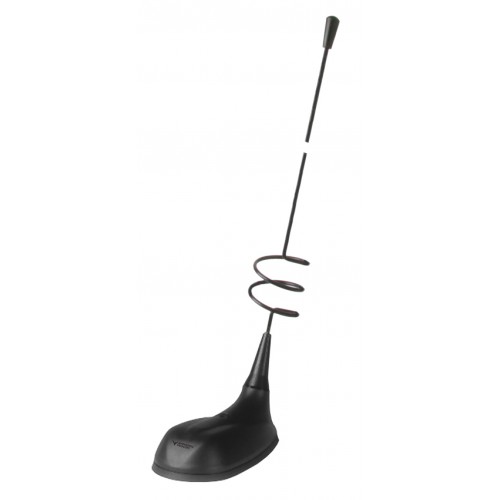

GPS Antenna with 3 dB Whip for the TETRA Band

Description

  • External antenna whip mounted on the GPS-Combi mount.
    • Black-chromed, stainless steel whip.
    • 3 dB Gain for the TETRA Band.
    • Easily removable whip for cleaning in car-washing machine.
  • GPS-antenna for fixed installations.
    • Full hemispherical coverage.
    • Built-in high-gain, low-noise amplifier.
    • Right-Hand Circular Polarization (RHCP).
    • 5 V supply voltage (3 V respectively 12 V available on request).
    • DC supply via RF-connector.

Specifications

Electrical
Model GPS-C MU 3/TETRA/l
Frequency 380 - 400 MHz
Antenna Type 5/8 λ mobile whip antenna
Max. Input Power 25 W
Polarisation Vertical
Impedance 50 Ω
VSWR ≤ 1.5:1 @ f.res.
Bandwidth ≥ 20 MHz @ VSWR ≤ 2.5
Gain (EIA RS-329-1) 3 dB
Mechanical
Materials Whip : Black-chromed, conical stainless steel
Spring : Black-chromed brass
Colour Black
Height Approx. 450 mm / 17.72 in.
Weight Approx. 0.06 kg / 0.13 lb.
Mounting On the GPS-Combi mount
GPS Antenna
P1dB (GPS Amplifier) Approx. 7 dBm
Coverage (GPS) Hemispherical
Gain (GPS) 28 dBic in axial direction (typ.)
Connection(s) (GPS) FME(m) (male for GPS) +
FME(f) (female for mobile antenna)
Mounting (GPS) 18.0 mm dia. hole for roof thickness upto 2.0 mm
18.5 mm dia. hole for roof thickness 2.0 - 2.5 mm
Tools for mounting included
Antenna Type (GPS) Active patch antenna
Noise Figure (GPS Amplifier) < 1 dB (typ.)
Cross Polar Discrimination (GPS) > 10 dB (typ.)
Gain (GPS Amplifier) > 30 dB (typ.)
VSWR (GPS Amplifier) < 2.0:1
Operating Temperature Range (GPS) -35 °C to +75 °C
Selectivity (GPS) > 45 dB down @ ± 45 MHz
Installation Torque (GPS) 4 ±0.5 Nm
Frequency (GPS) 1575 MHz
Weight (GPS) Approx. 0.114 kg / 0.25 lb.
Power Supply (GPS) 5 ± 0.5 V DC (3 V resp. 12 V on request)
Current Consumption (GPS Amplifier) 25 mA
Dimensions (GPS) Approx. 30 x 89 mm / 0.9 x 2.9 in.
Max. Roof Thickness (GPS) 2.5 mm / 0.10 in.
Polarisation (GPS) RHCP
Impedance (GPS) 50 Ω
Materials (GPS) Cu-nite brass
Stainless steel
Reinforced thermoplastic

Ordering Designations

Model Product No.
GPS-C MU 3/TETRA/l 132000130

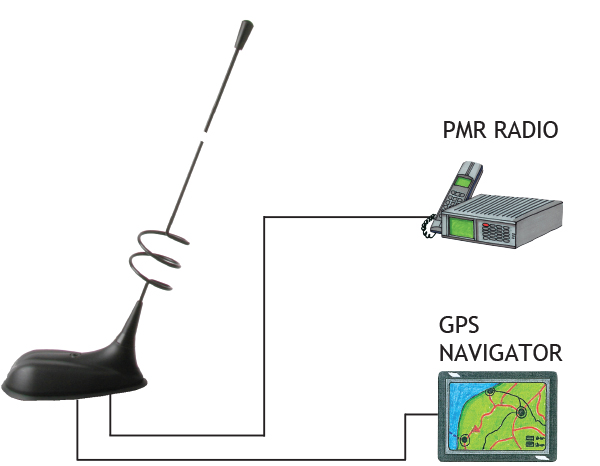

Connection Diagram

GPS C MU 3TETRAl GB

Mounting Instructions

GPS C mounting instructions 2 GB

Do not use sealer on rubber gasket or other places.

Cable Mounting

GPS C MU 3 TETRA l GB

Typical Response curves

GPS C resp kurve2 GB

GPS C resp kurve1 GB

Vertical Radiation Pattern

GPS C Vertical Radition pattern

EU and UK Declaration of Conformity

Hereby Amphenol Procom declare that the product type GPS-C MU 3/TETRA/l is in compliance with EU Directive 2014/53/EU and
the UK Radio Equipment Regulations 2017 (S.I. 2017 No. 1206).
The full text of the Declaration of Conformity is available at:

https://amphenolprocom.com/images/shop/catalog/pdf-for-catalouges/Declaration-of-Conformity-GPS-C-2.pdf
