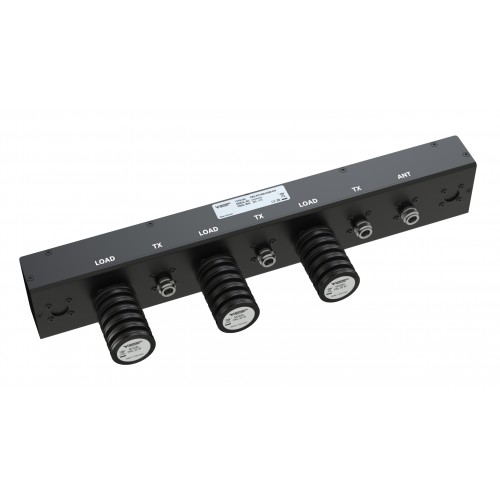

PRO-PHY450-3/380-470

Hybrid CombinersPRO-PHY450-3/380-470

3-channel Broadband Hybrid Combiner for the frequency range UHF/LTE 450 MHz

Description

  • New improved design on PCB of high power hybrid combiners.
  • Broadband, working in all the frequency range 380-470 MHz, without compromise the Tx-Tx isolation
  • Used for combining three transmitters or receivers to just one antenna.
  • Reduces the required number of antennas.
  • Can also be used with three antennas combining to one transmitter or receiver.
  • As standard the hybrid is supplied with 30 W loads.
  • Other loads for higher input power are available on request.

Specifications

Electrical
Model PRO-PHY450-3/380-470
Filter Type Hybrid Junction
Frequency 380 - 470 MHz
Max. Input Power 45 W per ch. with 30 W loads fitted (See note**)
(Max. 150 W per ch. with larger loads)
Insertion Loss < 5.8 dB
Impedance 50 Ω
Isolation Tx - Tx > 30 dB (See note*)
VSWR < 1.5:1 on every port, when the other ports are terminated with 50 Ω
Load 30 W load fitted
(other ratings available)
No. of channels 3
Mechanical
Connection(s) N(f)
Dimensions 428 x 56.7 x 70 mm /
16.85 x 2.23 x 2.76 in. (excl. load)
Weight Approx. 1.3 kg / 2.88 lb. incl. 30 W loads
Environmental
Operating temperature range -30 °C to +60 °C

Ordering Designations

Model Product No.
PRO-PHY450-3/380-470/45W 210003084
PRO-PHY450-3/380-470/75W 210003111
PRO-PHY450-3/380-470/110W 210003112

Note

* The isolation between the Tx ports is directly dependent on the terminating VSWR on the antenna port. E.g. with a VSWR = 1.5:1 on the ANT. port, the isolation between the Tx ports can be reduced to 20 dB @ in the 380-470 MHz range

** In a 3 channel hybrid 1/3 of the total input power will be led out to the Ant. port. The rest 2/3 of the total input power will be distributed equal to the 3 loads. E.g. with 3 x 45 W input power, 2/3 = 90 W is accomodated equal in the 3 loads, this means 90W/3 loads = 30 W of power per load.

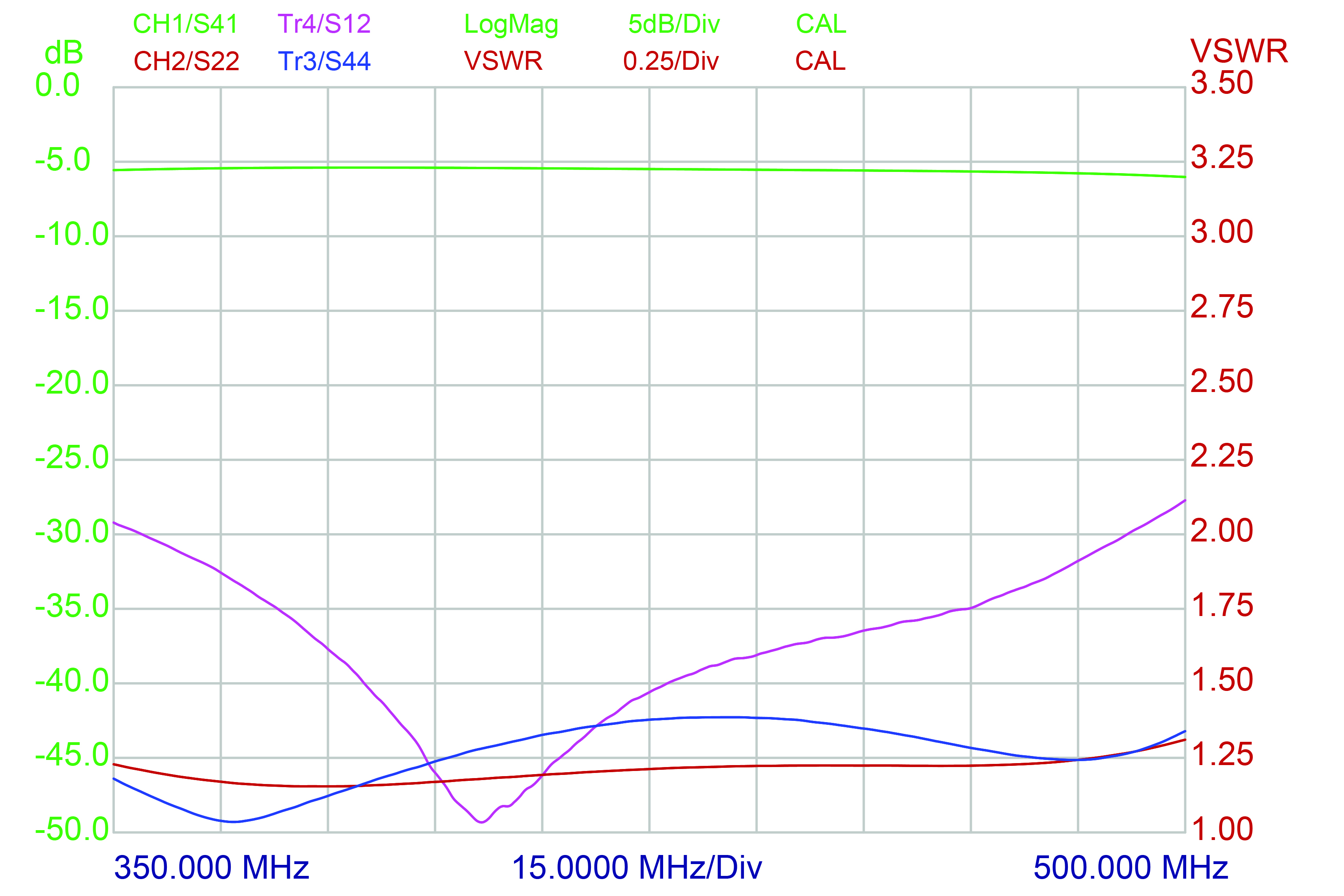

Typical response curve

PRO PHY450 3 380 470 VSWR

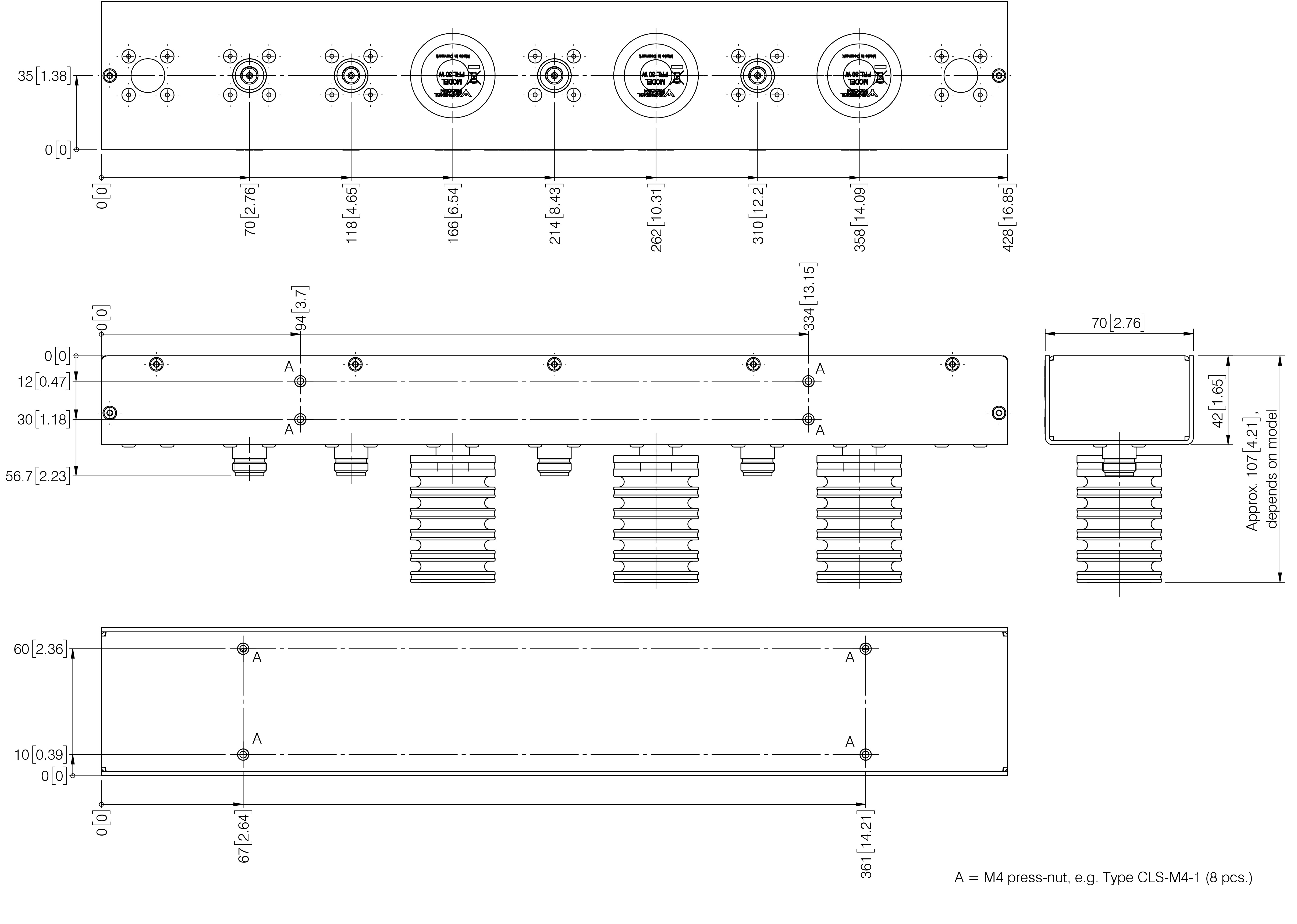

Mounting details

PRO PHY450 3 380 470 Mounting details

All dimensions are given in mm [in.]
