PRO-PHY450-2/380-470

Hybrid CombinersPRO-PHY450-2/380-470

2-channel Broadband Hybrid Combiner for the frequency range UHF/LTE 450 MHz

Description

  • New improved design on PCB of high power hybrid combiners.
  • Broadband, working in all the frequency range 380-470 MHz, without compromise the Tx-Tx isolation
  • Used for combining four transmitters or receivers to just one antenna.
  • Can also be used with two antennas combining to one transmitter or receiver.
  • As standard the hybrid is supplied with a 30 W load.
  • Other loads for higher input power are available on request.

Specifications

Electrical
Model PRO-PHY450-2/380-470
Filter Type Hybrid Junction
Frequency 380 - 470 MHz
Max. Input Power 30 W per channel (Max. 100 W with larger load)
Insertion Loss < 3.7 dB
Impedance 50 Ω
Isolation Tx - Tx > 30 dB *
VSWR < 1.5:1 on every port when the other ports are terminated with 50 Ω
Load 30 W load fitted (other ratings available) **
No. of channels 2
Mechanical
Connection(s) N(f) (other on request)
Dimensions 200 x 56.7 x 70 mm /
7.9 x 2.23 x 2.76 in. (excl. load)
Weight Approx. 0.5 kg / 1.1 lb. incl. 30 W load
Environmental
Operating temperature range -30 °C to +60 °C

Ordering Designations

Model Product No.
PRO-PHY450-2/380-470/30W 210003129
PRO-PHY450-2/380-470/50W 210003134

Note

* The isolation between the Tx ports is directly dependent on the terminating VSWR on the antenna port. E.g. with a VSWR = 1.5:1 on the ANT. port, the isolation between the Tx ports can be reduced to 20 dB @ in the 380-470 MHz range

**In a 2 channel hybrid 1/2 of the total input power will be led out to the Ant. port. The rest 1/2 of the total input power will be distributed to the 1 load. E.g. with 2 x 30 W input power, 1/2 = 30 W is accomodated to the load, this means the load in this case must be able to accomodate at least 30 W

Mounting Details

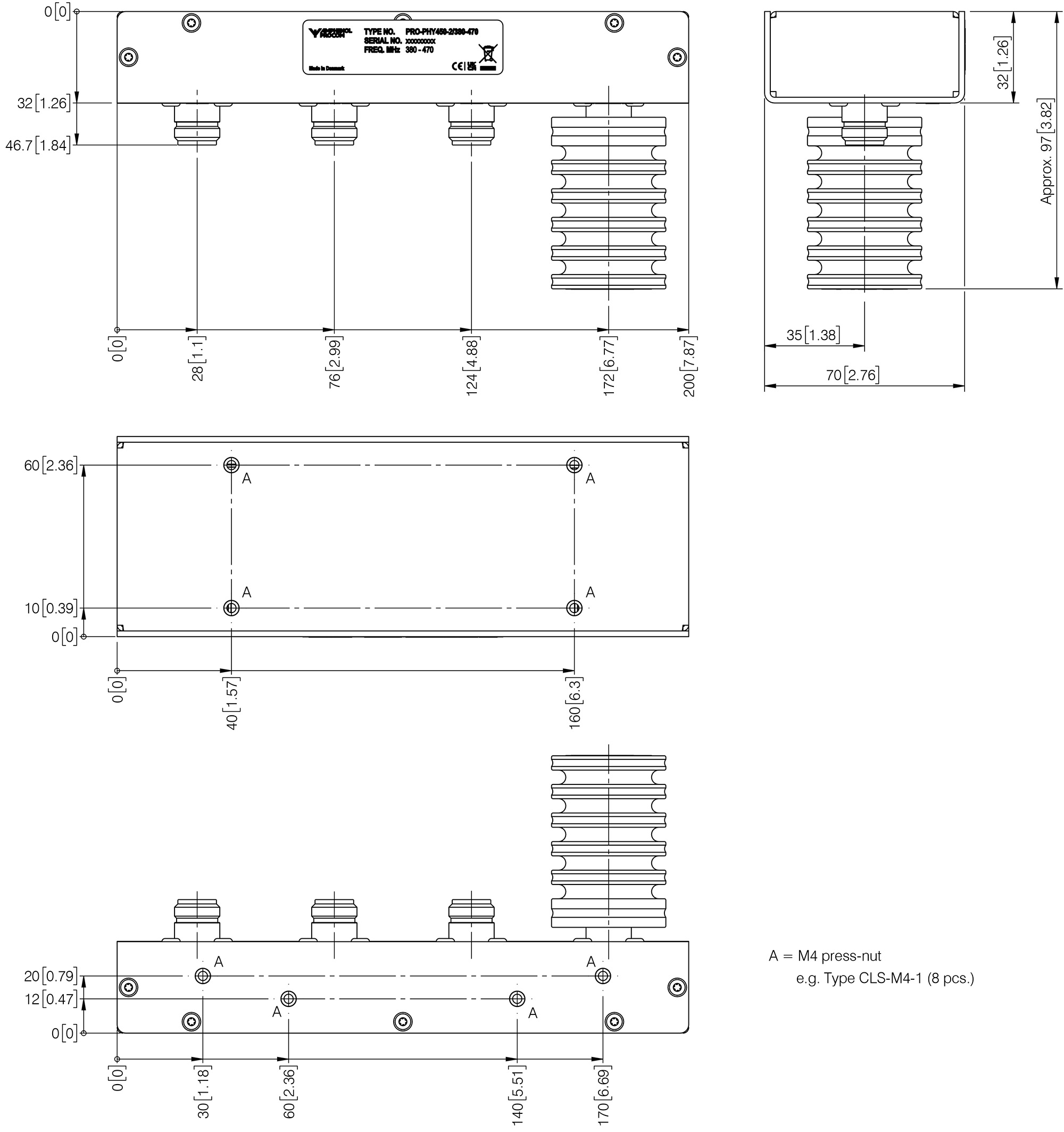

PRO PHY450 2 380 470 Mechanical outline

All dimensions are given in mm [in.]

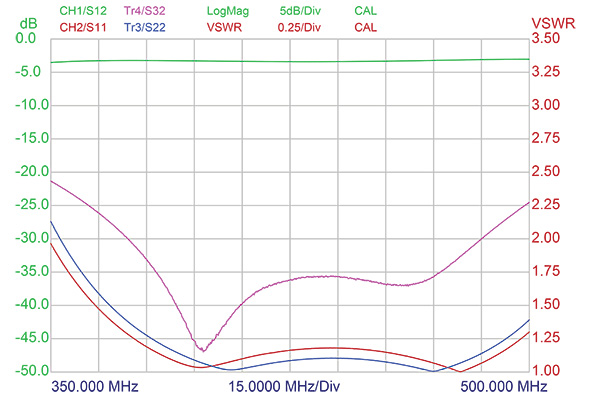

Typical response curve

PRO PHY450 2 VSWR
