PRO-IS-150-S1, PRO-IS-150-D1

Combiner ComponentsPRO-IS-150-S1, PRO-IS-150-D1

Single and Dual Isolators for the 150 MHz Band

Description

  • Medium power single or dual isolators for 145 – 175 MHz.
  • Used to isolate / protect of transmitters.
  • High frequency stability on temperature and power.
  • The standard 15 W dummy load can easily be interchanged to other values, if the reverse power is expected to exceed 15 W.
  • Tunable within the frequency range.
  • The isolators have black coating to prevent corrosion.

Specifications

Electrical
Model PRO-IS-150-S1 PRO-IS-150-D1
Frequency 145 - 175 MHz
Max. Input Power 150 W
Insertion Loss < 0.5 dB < 1.0 dB
Impedance 50 Ω
Isolation Typ. > 40 dB @ 25 °C
> 20 dB @ 0 - 60 °C
> 17 dB @ -10 - 0 °C		 Typ. > 80 dB @ 25 °C
> 40 dB @ 0 - 60 °C
> 35 dB @ -10 - 0 °C
VSWR < 1.5:1
Mechanical
Connection(s) N(f)
Dimensions 57 x 58 x 41 mm /
2.24 x 2.28 x 1.61 in.		 107 x 58 x 41 mm /
4.21 x 2.28 x 1.61 in.
Weight Approx. 0.4 kg / 0.88 lb. Approx. 0.8 kg / 1.76 lb.

Diagram and Mounting

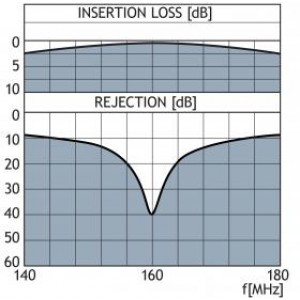

TYPICAL RESPONSE CURVES FOR PRO-IS-150-S1

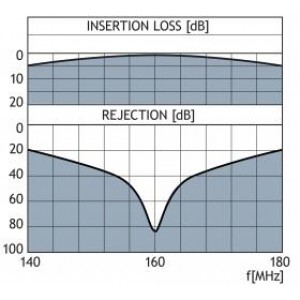

TYPICAL RESPONSE CURVES FOR PRO-IS-150-D1

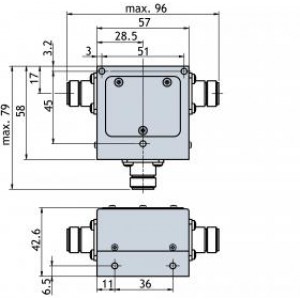

MOUNTING DETAILS FOR PRO-IS-150-S1

All dimentions are given in mm [in.] All dimentions are given in mm [in.]

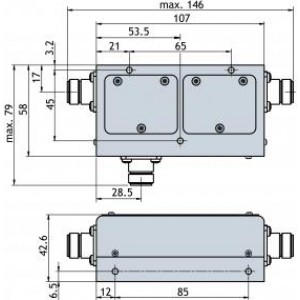

MOUNTING DETAILS FOR PRO-IS-150-D1

All dimentions are given in mm [in.] All dimentions are given in mm [in.]

Ordering Designations

Model Product No.
PRO-IS-150-S1 210001155
PRO-IS-150-D1 210001117
