HPRS-W

Receiver MulticouplersHPRS-W

Miniature 4-Channel Receiver Multicoupler for the VHF and low UHF band with extended frequency range

Description

  • For use where four receivers have to share the same antenna.
  • High isolation between the four receivers: > 20 dB.
  • High-dynamic range amplifier built-in to compensate for loss in the multicoupler network.
  • Ultra high third-order intercept point, >30 dBm.
  • Low noise figure, < 4 dB for the amplifier.
  • Wide frequency range. Covers 50 - 1200 MHz.
  • 12 V operating voltage.
  • DC supply on solder terminal.
  • N-female connectors on input and outputs (other types available).
  • P1dB >14 dBm.

Specifications

Electrical
Model HPRS-W
Gain (Input To All Outputs) 2 dB ±2 dB
Frequency 50 - 1200 MHz
Noise Figure, Amplifier < 4 dB @ 500 MHz
Noise Figure, Outputs < 6 dB @ 500 MHz
Output 3. Order Intercept point (OIP3) >30 dBm
Input VSWR < 2.0:1
Output VSWR Max. 1.5:1
P1dB >14 dBm
Isolation between outputs > 20 dB
Output-Input Isolation > 25 dB
Power Supply 12 V @ 210 mA
No. of channels 4
Mechanical
Dimensions 129 (incl. conn.) x 152 (incl. flanges) x 35 mm /
5.08 (incl. conn.) x 5.98 (incl. flanges) x 1.38 in.
Weight Approx. 0.435 kg / 0.96 lb.
Mounting Hole 5 mm / 0.20 in. dia. (four holes)
Environmental
Operating temperature range -30 °C to +50 °C
Ingress Protection IP31

Ordering Designations

Model Product No.
HPRS-W-4-N(f) Contact for availability

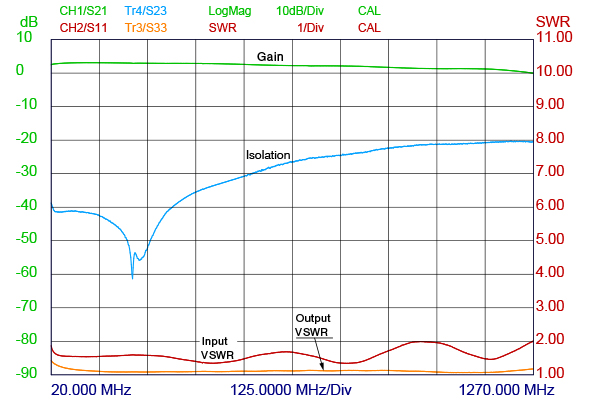

Typical Gain and VSWR curve

HPRS W Curves

Mounting Details

PRO MARHP4 HPRS4W Mountingholes

                    All dimensions are given in mm [in.]

EU and UK Declaration of Conformity

Hereby Amphenol Procom declare that the product type HPRS-W is in compliance with EU Directive 2014/53/EU and
the UK Radio Equipment Regulations 2017 (S.I. 2017 No. 1206).
The full text of the Declaration of Conformity is available at:

https://amphenolprocom.com/images/shop/catalog/pdf-for-catalouges/Declaration-of-Conformity-HPRS-W.pdf
