PCPO xH/TETRA/

DAS AntennasPCPO xH/TETRA/

Outdoor Left or Right Hand Circularly Polarized Patch Antennas for mounting on Wall or Mast

Description

  • Low-profile antenna for the 380 - 470 MHz band.
  • PCPO xH/TETRA/... is a Left or Right Hand Circularly Polarized
    patch antenna for outdoor use.
  • Circular polarization is chosen to avoid out-of-phase signals.
  • Reduces flutter considerably.
  • Covers approx. 50 MHz with a radiation of approx. 7 dBic.
  • The antennas are carefully sealed with a discrete cover.
  • The connector is placed at one side to enable mounting close to a wall.
  • Including wall mounting bracket. PATCH-MAMO and PATCH/WAMO
    to be ordered separately.

Specifications

Electrical
Model PCPO xH/TETRA/...
Frequency 380 - 470 MHz covered by two models
Antenna Type Left or right hand circularly polarized patch antenna
Max. Input Power 100 W
Polarisation Circular
3 dB Beamwidth, E-Plane 80 °
3 dB Beamwidth, H-Plane 80 °
Impedance 50 Ω
Gain 7 dBic (5 dBd)
VSWR < 2.0:1
In iBwave Yes
Mechanical
Connection(s) N(f)
Materials Cover: ABS (white)
Chassis: Aluminium
Colour Marine white
Dimensions Approx. 345 x 345 x 60 mm / 13.58 x 13.58 x 2.36 in.
Wind Load 173 N (160 km/h)
Weight Approx. 2.3 kg / 5.07 lb.
Mounting For mounting on wall - 5 mm dia. (three holes) (see mounting details) or mast on 40 - 54 mm / 1.57 - 2.13 in. dia. mast tube.
Environmental
Operating temperature range -30 °C to +75 °C
Ingress Protection IP55. The antenna has drain holes

Diagram and Mounting

Mast mounting bracket: PATCH-MAMO (ordered separately)

Tilt adjustable from +5˚/-30˚. Tilt adjustable from +5˚/-30˚.

MOUNTING DETAILS (PATCH-MAMO)

Wall mounting bracket: PATCH-WAMO (ordered separately)

MOUNTING DETAILS (PATCH-WAMO)

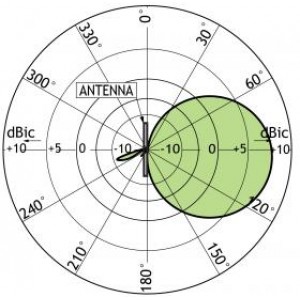

TYPICAL RADIATION PATTERN (E-PLANE)

This curve shows the radiation patterns in the vertical plane. This curve shows the radiation patterns in the vertical plane.

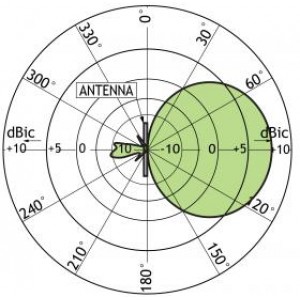

TYPICAL RADIATION PATTERN (H-PLANE)

This curve shows the radiation patterns in the horizontal plane (horizontal coverage). This curve shows the radiation patterns in the horizontal plane (horizontal coverage).

Ordering Designations

Model Product No. Frequency
PCPO RH/TETRA/s-f 100000428 380 - 430 MHz
PCPO LH/TETRA/s-f 100000427 380 - 430 MHz
PCPO RH/TETRA/l-h 100000443 430 - 470 MHz
PCPO LH/TETRA/l-h 100000444 430 - 470 MHz
Accessories
PATCH-MAMO 100000447
PATCH-WAMO 100000511
