Receiver MulticouplersPRO-MARHP

Miniature Receiver Multicoupler series for the 4 m, 3 m and 2 m bands, 68 - 240 MHz

Description

Active wideband receiver multicoupler for the 4 m LMR band, the FM radio band, the VHF air band, the 2 m LMR band and the DAB radio band.
Covers 68 MHz - 240 MHz.
Allows a number of receivers to share the same antenna without interaction and loss of signal.
Models with 2 outputs or 4 outputs available.
High dynamic range amplifier built in to compensate for loss in multicoupler network.
Can simultaneously act as a low-noise preamplifier with up to min. 8 dB gain (adjustable).
Very low amplifier noise figure ensures lowest possible S/N deterioration of received and distributed RF signals.
Excellent amplifier large signal behaviour ensures handling of strong RF signals with very low level of IM and harmonic distortion.
Adjustable gain.
Power splitter with high isolation between receiver outputs.
Low power consumption.
Models for 12 VDC or 24 VDC nominal supply voltage available (please see ordering designations).
DC supply on solder terminal or on 2.5mm barrel DC connector.
RF connectors: N(f) on all ports (other types on request).
Low weight.
Wide temperature range.
Sturdy aluminium box.
Black vinyl coated to prevent corrosion.

Specifications

Electrical

Model

PRO-MARHP

Gain (Input To All Outputs)

2.0 dB nominal (Gain adj. < -3 to > +8 dB)

Frequency

68 - 240 MHz

Gain variance

≤ ±2 dB

Noise Figure, Amplifier

Max. 1.5 dB, typ. 1.0 dB

Output 2. Order Intercept point (OIP2)

> +41 dBm @ max. gain

Output 3. Order Intercept point (OIP3)

> +25 dBm @ max. gain

Impedance

50 Ω

Input VSWR

Max. < 3.5:1, typ. < 2.5:1

Output VSWR

Max. < 3.5:1, typ. < 2.5:1

P1dB	> +10 dBm @ max. gain

Max. Input Power (dBm)

+17 dBm

Isolation between outputs

> 20 dB

Input-Output Isolation

> 25 dB

Power Supply

12 V models: 11 to 14 VDC
24 V models: 20 to 28 VDC
Curr. Cosumption 60 mA

No. of channels

2 or 4

Mechanical

Connection(s)

N(f) (standard)
TNC(f), BNC(f) or SMA(f) on request

Dimensions

129 (incl. conn.) x 152 (incl. flanges) x 35 mm / 5.08 x 5.98 x 1.38 in.

Weight

Approx. 0.36 kg / 0.79 lb.

Mounting

4 holes, ø4.3 mm

Environmental

Operating temperature range

-30 °C to +60 °C

Ingress Protection

IP31

Ordering Designations

Model	Product No.	Description
PRO-MARHP2-4-3-2-12V-N(f)	210000182	No. of outputs: 2
PRO-MARHP2-4-3-2-24V-N(f)	210001156	No. of outputs: 2
PRO-MARHP4-4-3-2-12V-N(f)	210000173	No. of outputs: 4
PRO-MARHP4-4-3-2-24V-N(f)	210000436	No. of outputs: 4
Accessories
Power Supply AC/DC 12V/1A EU/UK/US	240000060

Typical Gain, Isolation and VSWR Curve

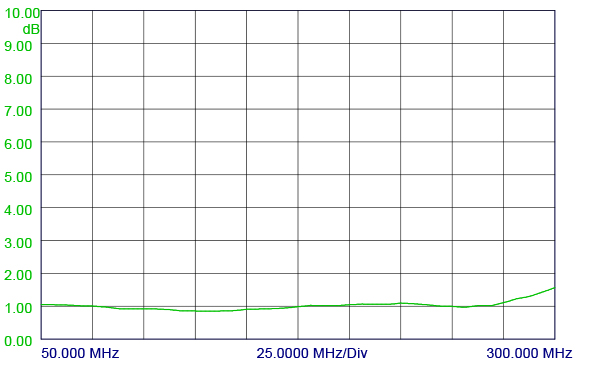

Typical Noise Figure @ Nominal Gain 2 dB

Typical Noise Figure @ Max. Gain

DC Power Supply Connection

Gain Adjustment

Mounting Details

All dimensions are given in mm [in.]

Power Supply AC/DC 12V/1A EU/UK/US

EU and UK Declaration of Conformity

Hereby Amphenol Procom declare that the product type PRO-MARHP is in compliance with EU Directive 2014/53/EU and
the UK Radio Equipment Regulations 2017 (S.I. 2017 No. 1206).
The full text of the Declaration of Conformity is available at:

https://amphenolprocom.com/images/shop/catalog/pdf-for-catalouges/Declaration-of-Conformity-PRO-MARHP.pdf
