MIX 70/44-PR-TETRA

Duplex FiltersMIX 70/44-PR-TETRA

Ultra-compact built-in type Duplexer for TETRA cellular radio telephones

Description

  • Miniaturized, light-weight, component-sized duplexer.
  • Ideal for integration in compact radio telephones.
  • Four cavities in Tx-branch, four cavities in Rx-branch.
  • Low insertion loss and temperature drift.
  • Rugged mechanical design.
  • Fully environmentally tested.

Specifications

Electrical
Model MIX 70/44-PR-TETRA
Frequency 380 - 460 MHz
Max. Input Power 25 W
Pass Band Insertion Loss ≤ 2.0 dB (typ. 1.8 dB)
Impedance 50 Ω
VSWR < 1.5:1
Stop Band Attenuation > 60 dB
Mechanical
Connection(s) SMA(f)
Dimensions 118 (incl. conn.) x 51 x 27 mm /
4.65 (incl. conn.) x 2.01 x 1.06 in.
Weight Approx. 0.12 kg / 0.26 lb.
Environmental
Operating temperature range -30 °C to +60 °C

Diagram and Mounting

TYPICAL RESPONSE CURVES

MECHANICAL DIMENSIONS

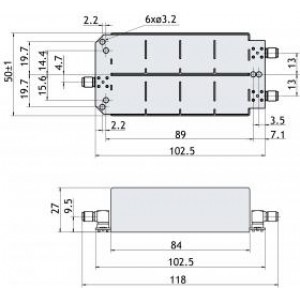

HOUSING HEIGHT 27 mm HOUSING HEIGHT 27 mm

MECHANICAL DIMENSIONS

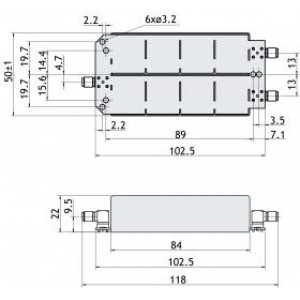

HOUSING HEIGHT 22 mm HOUSING HEIGHT 22 mm

Ordering Designations

Model Product No. Description Frequency
MIX 70/44-PR- TETRA-1-SMA(f) 200000629 Housing height: 27 mm 380 - 385 MHz / 390 - 395 MHz
MIX 70/44-PR- TETRA-2-SMA(f) 200002353 Housing height: 27 mm 385 - 390 MHz / 395 - 400 MHz
MIX 70/44-PR- TETRA-3-SMA(f) 200002354 Housing height: 27 mm 410 - 415 MHz / 420 - 425 MHz
MIX 70/44-PR- TETRA-4-SMA(f) 200002375 Housing height: 27 mm 415 - 420 MHz / 425 - 430 MHz
MIX 70/44-PR- TETRA-5-SMA(f) 200002376 Housing height: 22 mm 450 - 455 MHz / 460 - 465 MHz
MIX 70/44-PR- TETRA-6-SMA(f) 200002377 Housing height: 22 mm 455 - 460 MHz / 465 - 470 MHz
Accessories
Mounting Kit for HYTERA RD 965 200002517

Ordering Note

These filters can be delivered with other connector types on request:
- MCX angle
- MCX straight

 The HYTERA cable kit is used for mounting the duplexer inside the HYTERA RD 965 repeater. It consist of 3 cables. A manual for mounting the duplexer is provided with the kit.
